CR Magnetics CR4580-50

B005CWL9OW

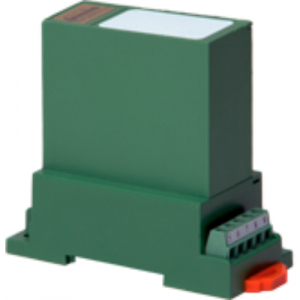

CR Magnetics CR4580-50 True RMS AC Voltage Transducer with 3 Phase and 4 Wire, 20 Hz - 5 KHz, 0 - 300 Output Load, 24 VDC +/-10%, 0-50 VAC Input Range, 4 - 20 mADC Output Range

CR Magnetics CR4580-50 True RMS AC Voltage Transducer with 3 Phase and 4 Wire, 20 Hz - 5 KHz, 0 - 300 Output Load, 24 VDC +/-10%, 0-50 VAC Input Range, 4 - 20 mADC Output Rangezoom

Attributes

Key Value
Accuracy0.5%
Altitude2000 meter max.
Approval AgencyCE, cURus
Basic Accuracy0.5%
CalibrationTrue RMS Sensing
CategoryIndustrial Automation a.
Cleaningwater-dampened cloth
DescriptionTRANSDUCER VOLTAGE 24VDC
Detailed DescriptionTrue RMS AC Voltage Tra.
Digi-Key Part NumberCR4580-50-ND
Frequency Range20 Hz - 5 KHz
Input Range0 ~ 50VAC
Installation CategoryCAT II
Insulation Voltage2500 Vdc
Isolation2500VDC
Linearity10% to 100% FS
ManufacturerCR Magnetics Inc.
Manufacturer Product Nu.CR4580-50
Manufacturer Standard L.4 Weeks
MfrCR Magnetics Inc.
Mounting TypeDIN Rail
MTBFGreater than 100 K hours
Operating Temperature0?C to +60?C, 0?C ~ 60?C
Output4 ~ 20mA
Output Load4-20 mADC - 0 to 500 ? .
PackageBulk
Pollution Degree2
Product StatusActive
Relative Humidity5% to 95%, Non-Condensi.
Response Time250 ms, 250ms
SeriesCR4500
Supply CurrentTypical 55mA; Max 110mA
Supply Voltage24 Vdc ?10%
Termination StyleScrew Terminal
Thermal Drift500 PPM/?C
Torque Specs3.0-inch lbs. (0.4Nm)
TypeTrue RMS AC Voltage Tra.
Vibration Tested ToIEC 60068-2-6,1995
Voltage - Supply24VDC
Weight0.5 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key2500628541.211In StockCR Magnetics Inc.541.21 @ 1
thumbzoomprimebuy.comCR4580-50695.01In StockCR Magnetics0.5695.0 @ 1
thumbzoomblackhawksupply.comCR4580-50708.221In StockCR Magnetics708.22 @ 1
