Hub City / Regal Beloit 800-1/1ABSP

B01LR07IUQ

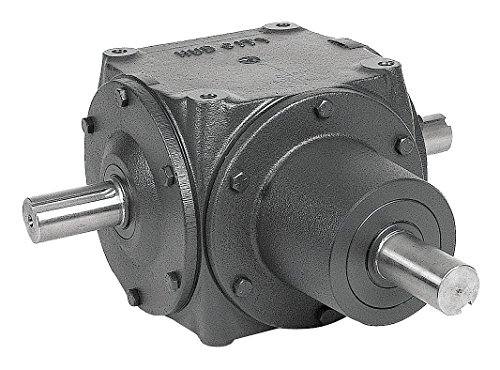

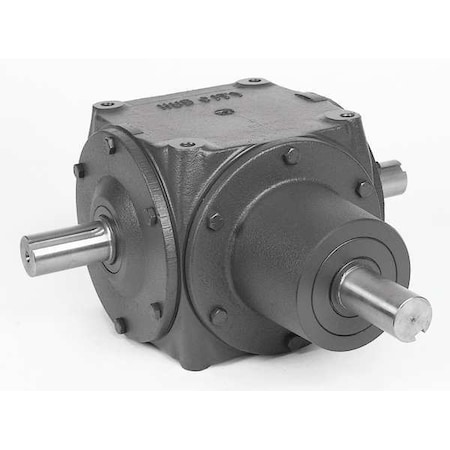

Hub City/Regal Beloit - 800-1/1ABSP - Standard Rugged Ductile Iron Bevel Gear Drive, Double Output, 690 lb. Overhung Load

Hub City/Regal Beloit - 800-1/1ABSP - Standard Rugged Ductile Iron Bevel Gear Drive, Double Output, 690 lb. Overhung Loadzoom

Attributes

Key Value
BaseOptional
BearingsTapered Roller
Bore Dia.1-1/2"
Country of Origin (subj.United States
Dimension B8-3/64"
Dimension C16-3/32"
Dimension F1/2"
Dimension V8-3/16"
Dimension W4-3/32"
DutyStandard
FinishPainted Gray
Gear Material8620 Steel
Gear TypeSpiral Bevel
Housing MaterialRugged Ductile Iron
Input RPM1750
ItemGear Drive
LubricationShipped Dry, Recommend .
Max. Input HP132
Max. Output Torque4750 in.-lb.
MountingAny Position Except Inp.
Nominal Output RPM1750
Nominal Ratio1:1
Number of Stages1
Output Shaft Dia.1-1/2"
Output Shaft Height3-1/16"
Overall Length16.09"
Overhung Load690 lb.
Pinion MaterialHardened Steel
Reducer Model No.800
RotationReversible
Seal TypeHeavy-Duty Industrial
Shaft OrientationRight Angle
Single/Double Output/Un.Double Output
Speed Reducer TypeBevel
StandardsAGMA

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG66637113750.281In Stock10Hub City3750.28 @ 1
