- mpn5KCR49SN0012X
- brandname: Marathon Motors
- manufacturername: Marathon Motors

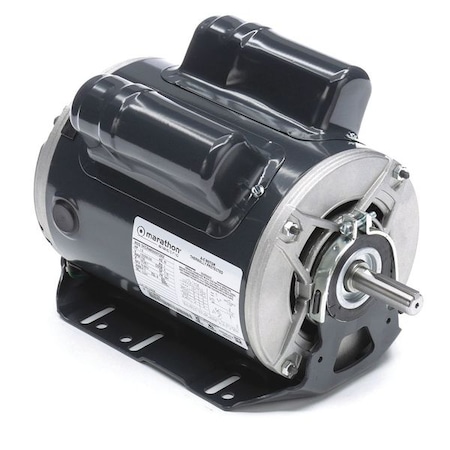

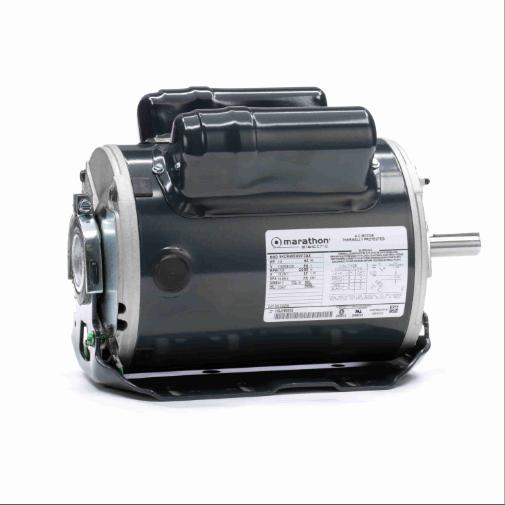

Motor, 1.5 HP, 1725 RPM, 115/208-230V, Auto
- Brand: Marathon Industries
- PartNumber: 5KCR49SN0012X
- PackageQuantity: 1
- Manufacturer: MARATHON MOTORS
- Label: MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Brand | Marathon Motors |
| Classification | Fan and Blower Duty |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Current Stock | 22 |
| Drive End Flange Type | Standard |
| Efficiency % | 72 % |
| Enclosure | ODP, Open |
| Family Series | Marathon Electric Motors |
| FL Amps | 18.2 |
| FL Efficiency | 72 |
| Frame | 56H |
| Frame Remarks | Resilient Base |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1 1/2 |
| International Shipping | No |
| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number | 5KCR49SN0012X |
| Kilowatts | 1.1 kW |
| KW | 1.1 |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 10 in |
| Manufacturer | Marathon Electric, Mara. |
| Manufacturer Part Number | CG239 |
| Manufacturers Warranty . | 1 yr |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Mounting | Resilient Mount |
| Mounting Type | Resilient Mount |
| Mpn | 5KCR49SN0012X |
| Nameplate RPM | 1,725 |
| NEMA Frame | 56H |
| Net Weight | 35 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Speeds | 1 |
| Overall Length | 11 7/8 in |
| Part Number | 5KCR49SN0012X |
| Phase | 1 |
| Product Type | General Purpose |
| RPM | 1800, 1,725 RPM |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| SKU | ZO-G5535485 |
| Speed (RPM) | 1725 |
| Standards | CSA Certified, UL Listed |
| SubCategory | Motors/Ac Motors |
| Voltage | 115/208-230V AC, 110-12. |
| Voltage (AC) | 110-120 VAC, 208 VAC, 3. |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115/208-230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G5535485 | 532.99 | 1 | 40 | | Marathon Motors | 35.3 | 532.99 @ 1 |
 | Galco | 5KCR49SN0012X-MARA | 567.25 | 1 | In Stock | | Marathon Electric | 35.0 | 567.25 @ 1 |
 | Dealers Electric | 5KCR49SN0012X | 577.72 | 1 | In Stock | | Marathon Electric | 35.0 | 577.72 @ 1 |
| AmazonTP | B01M0T1ODR | 588.63 | 1 | In Stock | 5 | MARATHON MOTORS | | 588.63 @ 1 |
 | simsupply.com | ZO-G5535485 | 630.82 | 1 | 22 | | Marathon Motors | | 630.82 @ 1 |
 | motorsandcontrol.com | CG239 | 633.98 | 1 | In Stock | | Marathon Motors | | 633.98 @ 1 |
 | Raptor Supplies | AD6NYM | 940.8645675 | 1 | In Stock | | MARATHON MOTORS | | 940.8645675 @ 1 |
 | pumpproducts.com | 5KCR49SN0012X | 995.34 | 1 | In Stock | | Marathon | | 995.34 @ 1 |
