Molex / Waldom 39-29-4209

B00GQQNY4G

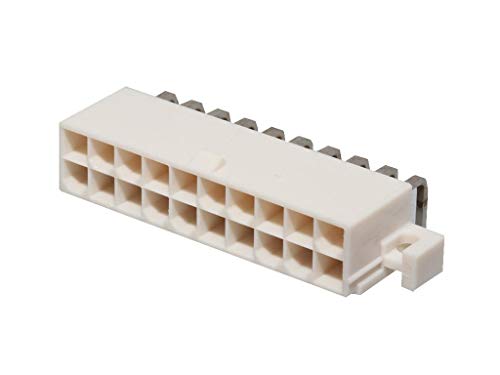

Molex / Waldom 39-29-4209 Connector Power

Molex / Waldom 39-29-4209 Connector Powerzoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number003929
CategoryConnectors, Interconnec.
ColorNatural
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating-
Contact Length - Post0.142" (3.60mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)-
DescriptionCONN HEADER R/A 20POS 4.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM19552-ND
Fastening TypeLocking Ramp
FeaturesMounting Flange
Ingress Protection-
Insulation ColorNatural
Insulation Height0.378" (9.60mm)
Insulation MaterialPolyamide (PA66), Nylon.
ManufacturerMolex
Manufacturer Product Nu.0039294209
Manufacturer Standard L.13 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole, Right Ang.
Number of Positions20
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length-
PackageBulk
Pitch - Mating0.165" (4.20mm)
Product StatusActive
Row Spacing - Mating0.165" (4.20mm)
SeriesMini-Fit Jr 5569
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet39-29-42095.832151In StockMolex5.83215 @ 1
thumbzoomNEP Electronics39-29-42097.25300In StockMolex7.25 @ 300
Newark92M01168.22300In StockMOLEX8.22 @ 300
thumbzoomDigi-Key316016511.12130Molex11.12 @ 1
thumbzoomRadwell39-29-420918.0150In StockMOLEX18.0 @ 150
