Molex / Waldom 39-29-9182

mpn39-29-9182
brandname: Molex
manufacturername: Molex

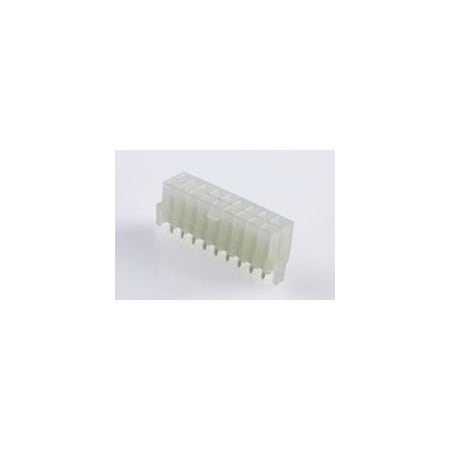

Molex / Waldom 39-29-9182 Connector Power

Brand: Molex / Waldom
PartNumber: 39-29-9182
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Part No.	538-39-29-9182
Brand	Molex
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Male Pin
Contact Finish	Tin Plated
Contact Finish - Mating	35.4?in (0.90?m)
Contact Finish - Post	Brass
Contact Finish Thicknes.	Tin
Contact Finish Thicknes.	General Purpose, Indust.
Contact Gender	Pin (Male)
Contact Length - Mating	0.138" (3.50mm)
Contact Length - Post	-
Contact Material	Brass, Polyamide (PA66).
Contact Plating	Tin
Contact Plating Thickne.	0.889 ?m
Contact Shape	Tin
Contact Type	0.165" (4.20mm)
Current Rating	9 A
Current Rating (Amps)	-
Fastening Type	-
Features	-
Flammability Rating	UL 94V-2
Hole Center to Center	4.2 mm
Housing Material	Nylon
Ingress Protection	UL94 V-2
Insulation Color	-
Insulation Height	Square
Insulation Material	Board Lock
Manufacturer	Molex
Manufacturer Part No.	39-29-9182
Mated Stacking Heights	35.0?in (0.90?m)
Material	Nylon
Material Flammability R.	Natural
Max. Temp.	240?C
Max. Voltage	600V
Mfr	Molex
Mounting Angle	Vertical
Mounting Type	Solder
Number of Contacts	18
Number of Positions	18, 2
Number of Positions Loa.	Board to Cable/Wire
Number of Rows	2, 0.165" (4.20mm)
Operating Temperature	-
Overall Contact Length	0.504" (12.80mm)
Package	Active
Package Quantity	1
Packaging	Tray
Part # Aliases	0039299182 5566-18B2
Part Status	Header
Pitch	4.2 mm
Pitch - Mating	18
Product Category	Headers & Wire Housings
Product Type	Header Assemblies
Row Spacing	5.5 mm
Row Spacing - Mating	All
Series	5566, Tray
Shrouding	Through Hole
Standards	CSA Certified; UL E29179
Style	Shrouded - 4 Wall
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Locking Ramp
Termination Style	Through Hole
Tradename	Mini-Fit Jr.
Type	Pin Header
Voltage Rating	-, 600 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	MOLEX 39-29-9182	0.85	65	19549	MOLEX	0.85 @ 65
Power and Signal Group	0039299182	0.9997	1680	5	Molex	0.9997 @ 1680
jensentools.com	10188482	1.13	1	19549	Molex	1.13 @ 5
NEP Electronics	39-29-9182	1.1765	65	19549	Molex	1.1765 @ 65
Onlinecomponents.com	39-29-9182	1.32	1	322	MOLEX / WALDOM	1.32 @ 5
RS Delivers	670-5669	1.8744	1	5	Molex	1.8744 @ 5
Newark	26H5868	2.4	1	56	MOLEX	2.4 @ 5
Digi-Key	WM7332-ND	2.53	1	5	Molex	2.53 @ 5
swatee.com	39-29-9182	3.5	1	1391	Molex	3.5 @ 5
Radwell	39-29-9182	5.0	1	5	MOLEX	5.0 @ 5
Zoro	G7769359	103.35	65	5	Molex	103.35 @ 65
