Nichicon UPJ2A271MHD6TN

mpnUPJ2A271MHD6TN
brandname: Nichicon
manufacturername: Nichicon

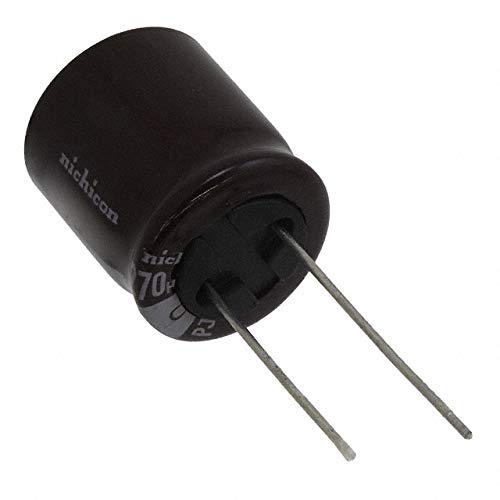

NICHICON UPJ2A271MHD6TN CAPACITOR ALUM ELEC, 270UF, 100V, 20%, RADIAL (1 piece)

NICHICON UPJ2A271MHD6TN CAPACITOR ALUM ELEC, 270UF, 100V, 20%, RADIAL (1 piece)

zoom

Brand: Nichicon
PartNumber: UPJ2A271MHD6TN
Model: UPJ2A271MHD6TN
PackageQuantity: 1
Manufacturer: NICHICON
Label: NICHICON

Attributes

Key	Value
Applications	General Purpose
Capacitance	270 ?F
Category	Capacitors
ESR (Equivalent Series .	-
Height - Seated (Max)	0.866" (22.00mm)
Impedance	80 mOhms
Lead Spacing	0.295" (7.50mm)
Lifetime @ Temp.	5000 Hrs @ 105?C
Mfr	Nichicon
Mounting Type	Through Hole
Operating Temperature	-55?C ~ 105?C
Package	Cut Tape (CT)
Package / Case	Radial, Can
Polarization	Polar
Product Status	Active, Not For New Des.
Ratings	-
Ripple Current @ High F.	1.23 A @ 10 kHz
Ripple Current @ Low Fr.	918 mA @ 120 Hz
Series	UPJ
Size / Dimension	0.709" Dia (18.00mm)
Surface Mount Land Size	-
Tolerance	?20%
Voltage - Rated	100 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Allied Electronics	E4771454	0.5746	250	174		Nichicon		0.5746 @ 250
	Hotenda	H274552	0.5746	250	1000		Nichicon		0.5746 @ 250
	Newark	65R3515	0.812	500	123		NICHICON		0.812 @ 500
	Digi-Key	4319512	1.69	1	123		Nichicon		1.69 @ 1
