Ruland FSMR25-8-8-SS

B0060M62HM

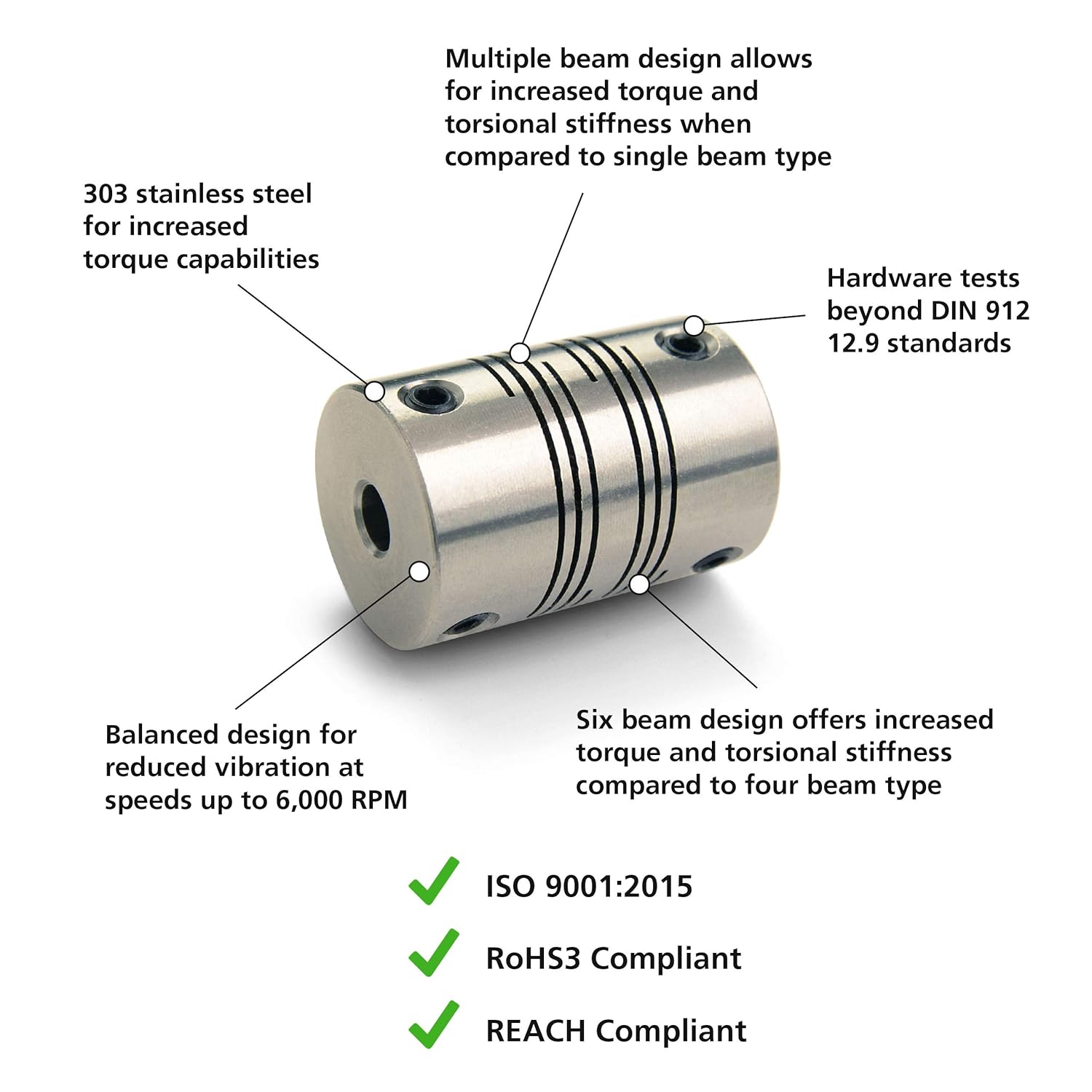

Ruland FSMR25-8-8-SS Set Screw Beam Coupling, Stainless Steel, Metric, 8mm Bore A Diameter, 8mm Bore B Diameter, 25.4mm OD, 38.1mm Length, 5.66 Nm Nominal Torque

Ruland FSMR25-8-8-SS Set Screw Beam Coupling, Stainless Steel, Metric, 8mm Bore A Diameter, 8mm Bore B Diameter, 25.4mm OD, 38.1mm Length, 5.66 Nm Nominal Torquezoom

Attributes

Key Value
Angular Misalignment3.0?
Axial Motion0.25 mm
B1 Max Shaft Penetration18.3 mm
B2 Max Shaft Penetration18.3 mm
Bore (B1)8 mm
bore - side 1:8 mm
bore - side 2:8 mm
Bore Dia.8mm x 8mm
Bore Tolerance+0.025 mm / -0.000 mm
bore tolerance:+.025 / -.000 mm
CategoryHardware, Fasteners, Ac.
Clearance Dia. (In.)1.642 in
Clearance Dia. (mm)41.71
Country of OriginUSA
Country of Origin (subj.United States
Dynamic Torque Non-Reve.2.83 Nm
Dynamic Torque Reversing1.42 Nm
FinishBright
Finish SpecificationBright, No Plating
Forged Set ScrewM5
Full Bearing Support Re.Yes
harmonization code:8483608000
Hex Wrench Size2.5 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length (L)38.1 mm
Length through Bore17.87 mm
Length through Bore (In.0.704
Length through Bore (mm)17.87
ManufacturerRuland Manufacturing
MaterialStainless Steel
Material - CouplingsStainless Steel
Material SpecificationType 303 Austenitic, No.
material:303 Stainless Steel
Max. Angular Misalignme.3 Degrees
Max. Axial Misalignment.+/-0.01
Max. Bore (mm)8 mm
Max. Parallel Misalignm.0.015 in
Max. RPM6,000 RPM
Max. Temp.350 Degrees F
Max. Temp. Range (F)350 Degrees
maximum angular misalig.3
maximum parallel misali.0.38 mm
maximum rpm:6000 rpm
Maximum Speed6,000 RPM
MfrRuland Manufacturing
Min. Bore (mm)8
Moment of Inertia11.293 x10
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
number of beams:Six Beam
Number of Screws4 ea
operating temperature:-40 to +350
Outer Diameter (OD)25.4 mm
Outside Dia.25.4 mm
Outside Dia. (In.)1
Outside Dia. (mm)25.4
outside diameter:25.4 mm
Overall Length38.1 mm
Overall Length (In.)1.5
Overall Length (mm)38.1
overall length:38.1 mm
PackageBag
Parallel Misalignment0.38 mm
Product StatusActive
Rated Torque50 in-lb
Recommended Shaft Toler.+0.000 mm / -0.013 mm
screw clamp type:Set Screw Type
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM5
Screw Size (mm)M5
screw thread size:M5
Screw TypeSet Screw
Seating Torque4 Nm
Series-
Setscrew Location2 (120 Degrees )
Shaft Locking Type - Co.1 Piece Set Screw
SizeFSMR25
Small Bore (B2)8 mm
Specifications1.000" (25.40mm) Outer .
Static Torque5.66 Nm
Style6-Beam Set Screw
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
Torque (In.-Lbs.)50
Torsional Stiffness0.41 Deg/Nm
Torsional Stiffness (De.0.046
torsional stiffness:0.41 N-m/deg
TypeBeam Coupling
UNSPC31163003
UPC634529046326
Weight (lbs)0.275100
weight:0.484 lb
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG8025595118.01In Stock10Ruland0.52118.0 @ 1
thumbzoomAmazonSCB0060M62HM124.011In StockRuland124.01 @ 1
thumbzoommotionindustries.com04804875126.041In StockRuland Manufacturing Co Inc126.04 @ 1
thumbzoomsustainablesupply.comC1645007132.81In StockRuland Manufacturing0.52132.8 @ 1
thumbzoomRulandFSMR25-8-8-SS144.01In StockRuland0.2751144.0 @ 1
Grainger30UV67166.51In Stock15RULAND MANUFACTURING166.5 @ 1
Digi-Key13608599193.81110Ruland Manufacturing193.81 @ 1
thumbzoomRaptor SuppliesAF9URH268.66680751In StockRULAND MANUFACTURING268.6668075 @ 1
