Molex / Waldom 39-29-5103

mpn0039295103
brandname: Molex
manufacturername: Molex

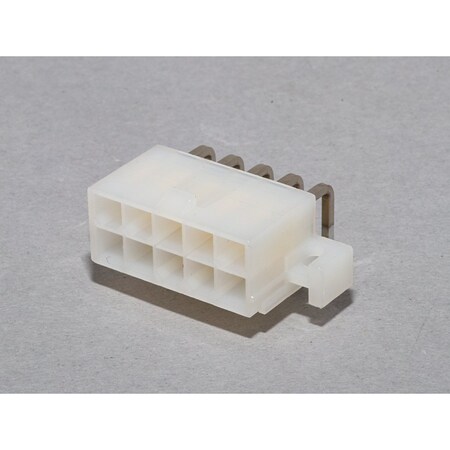

Molex / Waldom 39-29-5103 Connector Power

Molex / Waldom 39-29-5103 Connector Power

zoom

Brand: Molex / Waldom
PartNumber: 39-29-5103
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	General Purpose, Indust.
Base Product Number	003929
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	-
Contact Length - Post	0.142" (3.60mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Country of Origin (subj.	Mexico
Current Rating (Amps)	-
Fastening Type	Locking Ramp
Features	Mounting Flange
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.378" (9.60mm)
Insulation Material	Polyamide (PA66), Nylon.
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Positions	10
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Part Status	Active
Pitch - Mating	0.165" (4.20mm)
Row Spacing - Mating	0.165" (4.20mm)
Series	Mini-Fit Jr 5569
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Power and Signal Group	0039295103	1.6941	1200	25		Molex		1.6941 @ 1200
	Arrow	39-29-5103	1.734	1	335		Molex		1.734 @ 25
	Onlinecomponents.com	39-29-5103	1.93	1	1594		MOLEX / WALDOM		1.93 @ 25
	NEP Electronics	39-29-5103	2.6029	600	25		Molex		2.6029 @ 600
	Mouser	538-39-29-5103	2.96	1	25		Molex		2.96 @ 25
	Zoro	G600442672	3.29	3	25		Molex		3.29 @ 25
	Digi-Key	356038	3.682	1000	25		Molex		3.682 @ 25
	Radwell	39-29-5103	4.0	1200	25		MOLEX		4.0 @ 1200
