Prestolite 5JJN4

B00WO6MGUA

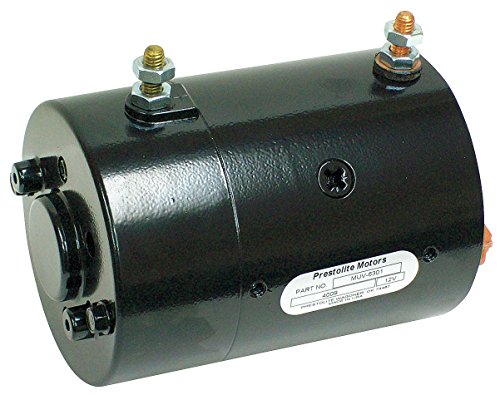

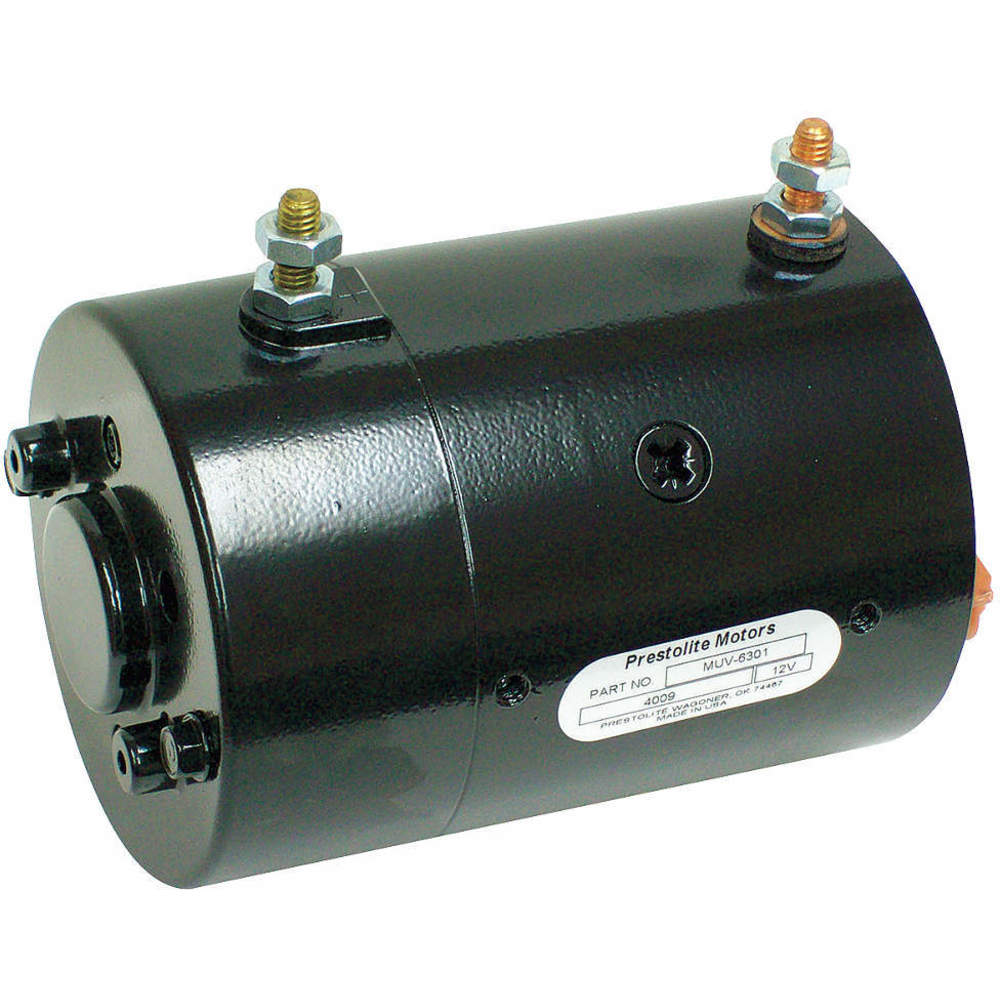

Prestolite Motors 1-3/5 Wound Field DC Wound Field Motor, CW/CCW Rotation, 6-3/4" Overall Length - 1 Each

Prestolite Motors 1-3/5 Wound Field DC Wound Field Motor, CW/CCW Rotation, 6-3/4" Overall Length - 1 Eachzoom

Attributes

Key Value
Ambient Temperature40 Degrees C
ApplicationHydraulic Tail Gate Lif.
Armature Volts DC12
Duty CycleIntermittant
Field Volts DC12
FrameNon-Standard
Full Load Amps200.0
HP1 3/5
Ins. ClassF
ItemDC Wound Field Motor
Length Less Shaft6 3/8 in
Max. Ambient Temp.40 Degrees C
Motor BearingsBall
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Shaft RotationCW/CCW
Motor TypeWound Field
MountingSpecial
Nameplate RPM2,800
No. of Speeds1
Overall Length6 3/4 in
RotationCW/CCW
RPM Range1,801-3,000
Shaft Dia.9/16 in
Shaft Length7/16 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3409987243.9911Prestolite Motors16.48243.99 @ 1
thumbzoomRaptor SuppliesAE4CTG408.9277531In StockPRESTOLITE MOTORS408.927753 @ 1
