- mpnTPS3C1120D2
- brandname: Siemens
- manufacturername: Siemens

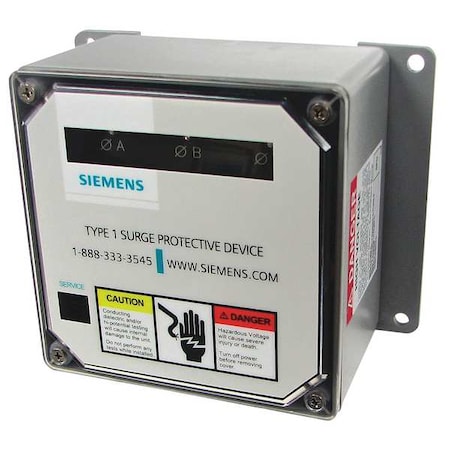

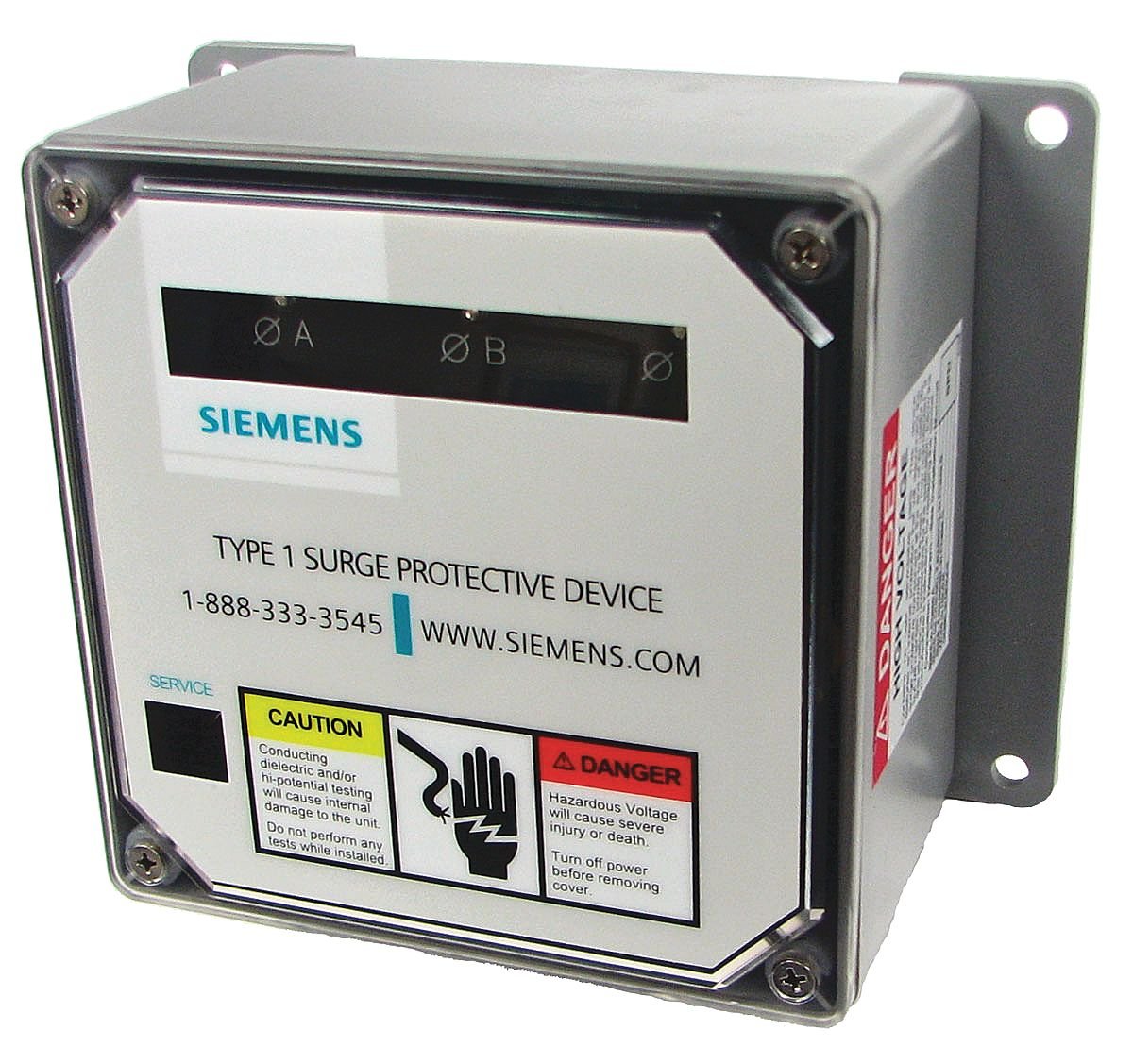

Siemens - TPS3C1120D2 - Surge Protection Device, Phase Three, Voltage 120/208V AC Wye
- Brand: SIEMENS
- PartNumber: TPS3C1120D2
- Color: Gray
- PackageQuantity: 1
- Manufacturer: Siemens
- Label: Siemens
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | TPS3C1120D2 |
| Basic Material | Nonmetallic |
| Category | Surge Suppressers |
| Chase Nipple Size | 3/4 in |
| Color | Gray |
| Connection: | WIRELEADS |
| Country of Origin | US |
| Country of Origin (subj. | United States |
| Depth | 4.0 in |
| Depth [in]: | 4 in |
| Enclosure Material | Polycarbonate |
| Enclosure NEMA Rating | 4X |
| Filtering | Yes |
| Filtering / Nonfiltering | Filtering |
| Height [in]: | 6 in |
| Includes | Dry Contacts & Audible . |
| IP Rating | 10, 14, 52, 56 |
| Item | Surge Protection Device |
| Length | 6.0 in |
| Length (Straight Wirewa. | 6.0 in |
| Lightning Impulse Curre. | 20 kA |
| Manufacturer | Siemens Industry, Inc. |
| Material: | Polycarbonate |
| Max. Continuing Operati. | 150V AC |
| Max. Operating Temp. | 140 Degrees F |
| Max. Surge Current per . | 100kA (L-G, L-N), N-G |
| Max. Surge Current Per . | 100kA |
| Max. Surge Current per . | 200 kA |
| Max. Surge Current Per . | 200kA |
| Min. Operating Temp. | -15 Degrees F |
| Modes of Protection | L-G, L-L, L-N, N-G |
| Modular | No |
| Modular / Nonmodular | Nonmodular |
| Mounting Style | Surface |
| Mounting: | EXTERNAL(WALL)MOUNTED |
| Noise Attenuation | -50db @ 10kHz to 100MHz |
| Nominal Discharge Curre. | 20 kA |
| Number of Poles | 3 |
| Number of Wires | 4 Wires + Ground |
| Phase | Three |
| Phase: | 3 |
| Short Circuit Current R. | 200kA |
| Standard: | UL1449/CSA22.2No.269.1 |
| Standards | ANSI/IEEE , UL/cUL 1449. |
| Sub Brand: | TPS311 |
| System Connection | Parallel |
| Type: | 200kASURGE |
| UL SPD Type | Type 2 |
| UNSPSC | 39121610 |
| UPC | 804766264078 |
| Voltage | 120/208V AC Wye |
| Voltage / between phase. | 208 V |
| Voltage Protection Rati. | 1000V (L-L), 600V (N-G). |
| Voltage Rating: | 120 V |
| Width | 6.0 in |
| Width [in]: | 6 in |
| Wire Gauge | 10 to 8 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Dale-Electric | TPS3C1120D2 | 1373.25 | 1 | In Stock | | Siemens Industry, Inc. | | 1373.25 @ 1 |
| us.rs-online.com | 72782614 | 1590.41 | 1 | In Stock | | Siemens | | 1590.41 @ 1 |
 | Zoro | G4437097 | 1689.0 | 1 | In Stock | | Siemens | 4.55 | 1689.0 @ 1 |
| AmazonTP | B009MS5H5Y | 2242.06 | 1 | In Stock | 2 | SIEMENS | | 2242.06 @ 1 |
 | sustainablesupply.com | C1163563 | 2249.92 | 1 | In Stock | | Siemens | 4.55 | 2249.92 @ 1 |
 | AmazonSC | B009MS5H5Y | 2693.33 | 1 | In Stock | | Siemens | | 2693.33 @ 1 |
