TELEMECANIQUE SENSORS XCKM106H7

B00DEELAZS

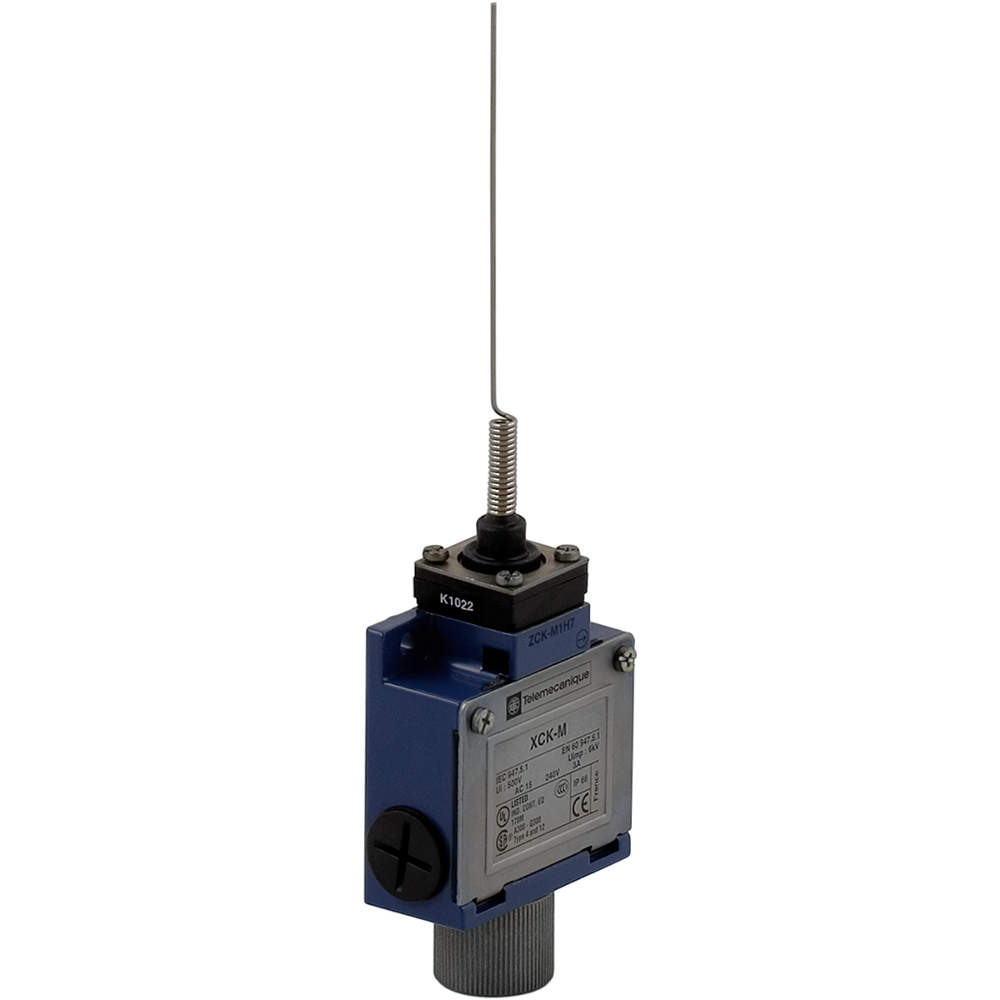

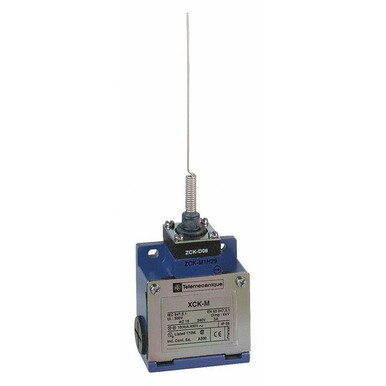

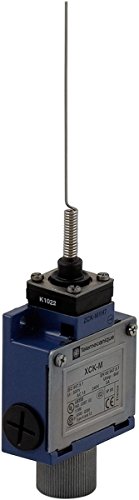

Telemecanique XCKM OsiSense XC Standard Limit Switch, Three Cable Entries, 1 NO and 1 NC Snap-Action Contacts, Cat Whisker, 1/2" NPT Tapped Entry

Telemecanique XCKM OsiSense XC Standard Limit Switch, Three Cable Entries, 1 NO and 1 NC Snap-Action Contacts, Cat Whisker, 1/2" NPT Tapped Entryzoom

Attributes

Key Value
AC Contact Rating - Lim.10A @ 240V
ActionMulti-directional appro.
ActuationAny Direction
ActuatorSpring return cat''s wh.
Actuator Length5.61"
Actuator Length - Limit.5.61 in
Actuator Location (Limi.Top
Actuator Location - Lim.Top
Actuator Style - Limit .Wobble Stick
Actuator TypeSpring Whisker
ApplicationCLASSIC
Arm MaterialSteel
Arm Width0.05 in
Basic Actuator Style - .Wobble Stick
Body Depth - Limit Swit.1.18 in
Body Height - Limit Swi.2.48 in
Body MaterialPlastic
Body Style - Limit Swit.Miniature
Body Width - Limit Swit.2.52 in
Boot Sealed Actuator (L.No
BrandTelemecanique Sensors, .
Catalog NumberXCKM106H7
ConnectionScrew-clamp terminals 1.
Contact Configuration1 NC + 1 NO
Contact Form1NC/1NO, SPST-NO ; SPST.
Contact Form- Switches1NC/1NO
Contact StyleSnap Action
Country of OriginFrance
Current Rating10 A
Current Stock17
DC Contact Rating - Lim.10A @ 240V
Depth1.18"
Head TypeWobble Head
Height2.50"
International ShippingNo
ItemLimit Switch
Item TypeLimit Switch
Made in USANo
ManufacturerSchneider Electric
MountingBy The Body
Mounting - Limit SwitchSurface
MpnXCKM106H7
Number of Poles2
Operating Cycles5000000 CYCLES, DC-13, .
Operating Temp. Range-13 Degrees to 158 Deg.
Operating Temperature-25-70 A Degrees C
SeriesXCKM Series
Size1.18
SKUZO-G0294226
Special FeaturesFIXED,METAL
Standard25 GN 10-500 HZ)EN/IEC .
StandardsCE, CSA, UL
Sub BrandXCKM
SubCategoryElectrical
TerminationScrew
TypeLimit
UPC785901923121
UPC Code785901923121
Vibration Resistance25G
Voltage Rating240 V
Warranty DescriptionContractual Warranty:18.
Width2.52"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG029422692.85125Telemecanique Sensors0.6892.85 @ 1
thumbzoomsimsupply.comZO-G0294226109.99117Telemecanique Sensors109.99 @ 1
Grainger5WJF5124.51120TELEMECANIQUE SENSORS124.5 @ 1
thumbzoomsustainablesupply.comC1206903153.291In StockTelemecanique Sensors0.68153.29 @ 1
thumbzoomNational Supply Network59760108154.051In StockTelemecanique Sensors154.05 @ 1
thumbzoombscsource.comXCKM106H7171.091In StockTelemecanique Sensors171.09 @ 1
thumbzoomRaptor SuppliesAG7DYN217.6374331In StockTELEMECANIQUE SENSORS217.637433 @ 1
thumbzoomcrescentelectric.com256512222.431In StockTelemecanique222.43 @ 1
us.rs-online.com70007977242.121In StockTelemecanique Sensors242.12 @ 1
thumbzoomNewark84R3944259.311In StockTELEMECANIQUE SENSORS259.31 @ 1
