- mpnTCMT21505 THM
- brandname: Widia
- manufacturername: Widia

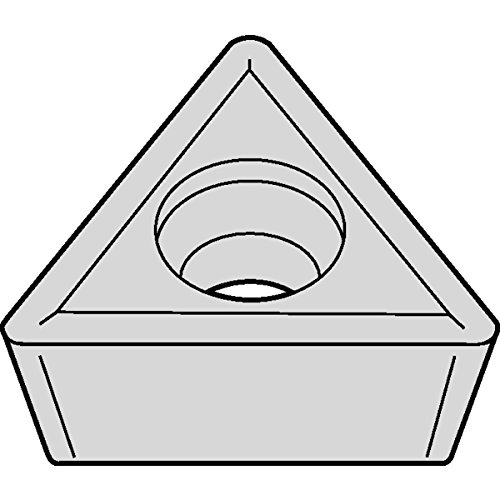

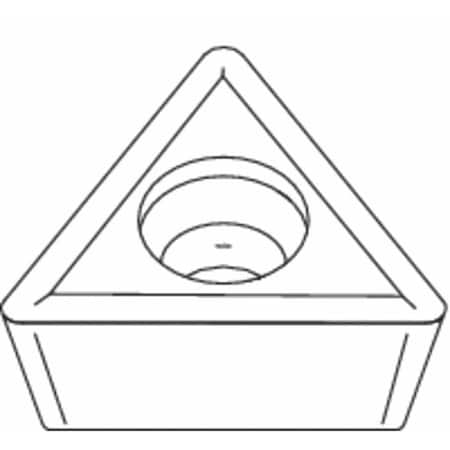

WIDIA TCMT21505 THM Victory TCMT High Performance Turning Inserts, Carbide, 0.008"/0.2 mm Radius, Uncoated Grade THM
- Brand: WIDIA
- PartNumber: TCMT21505 THM
- Model: TCMT21505 THM
- Size: 0.25
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: WIDIA Products Group
- Label: WIDIA Products Group
Attributes
| Key | Value |
|---|
| ANSI Code | TCMT21505 |
| ANSI Number | TCMT21505 |
| Brand | WIDIA |
| Cast Iron (K) Compatibi. | Yes |
| Catalog Page | N/A |
| Chip-Breaker | Yes |
| Chip-Breaker Style | On One Side |
| Clearance Angle | 7 Degrees, 7 ? |
| Coating | Uncoated |
| Corner Radius | 0.0080 in, 0.008 in |
| Country of Origin | Germany |
| Country of Origin (subj. | Germany |
| Cutting Application | Outside and Inside Diam. |
| Cutting Direction | Neutral |
| Cutting Edge Length | 11 mm, 11.00mm |
| Finish - Machining | Bright (Uncoated) |
| For Use With | Toolholders, Boring Bars |
| Grade | THM |
| Hardened (H) Compatibil. | Yes |
| Included Angle | 60 ?, 60 Degrees |
| Inscribed Circle | 0.2500", 2, 1/4 in |
| Insert Application | Finishing |
| Insert Code | TCMT21.5.5 |
| Insert Holding Type | 40 Degrees to 60 Degre. |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Insert Size | 21505 |
| Insert Style | TCMT |
| Insert Thickness | 0.0938" |
| ISO Number | TCMT110202 |
| Item | Triangle Turning Insert |
| Item? | 433C59 |
| Manufacturer Grade | THM |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mfr. Model? | TCMT21505 THM |
| Mounting Hole Dia. | 0.110" |
| Mounting Style | Screw |
| No. of Edges | 3 |
| Non Ferrous (N) Compati. | Yes |
| Nose Radius | 0.008" |
| Number of Cutting Edges | 3 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | H, K, N, S, H; K; N; S |
| Rake | Positive |
| Relief Angle | 7 Degrees |
| Seat Size | 21505 |
| Shape | Triangle |
| Stainless (M) Compatibi. | No |
| Steel (P) Compatibility | No |
| Super Alloy (S) Compati. | Yes |
| Thickness | 1.5, 0.0937 in, 3/32 in |
| Through Hole Inside Dia. | 0.11 in, 0.1100 in |
| UNSPSC | 23171618 |
| Workpiece Compatibility | Cast Iron (K), Hardened. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G7678452 | 10.69 | 5 | 10 | 37 | Widia | 0.04 | 10.69 @ 10 |
| Grainger | 433C59 | 11.98 | 1 | 10 | | WIDIA | | 11.98 @ 10 |
| grainger.ca | WID2028579 | 12.85402426 | 1 | 10 | | WIDIA | 0.044 | 12.85402426 @ 10 |
