- mpnC70114
- brandname: CLEVELAND
- manufacturername: CLEVELAND

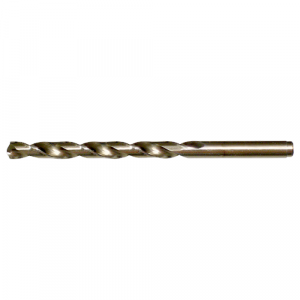

Cleveland 2213 Cobalt Steel Jobbers' Length Drill Bit, Gold Oxide Finish, Round Shank, 135 Degree Split Point, 6.8mm (Pack of 12)
- Brand: CLEVELAND
- PartNumber: C70114
- Model: C70114
- Size: 6.8 mm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Aircraft Drill | Yes |
| Application | Stainless Steel, Alloy . |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Cutting Depth | 69 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.2677 |
| Decimal Equivalent: | 0.2677" / 6.80mm |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter Metric: | 6.80mm |
| Diameter Wire: | Square |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees, 135 ? |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 6.80 mm |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0554mm |
| Drill Size - Decimal In. | 0.2677 in |
| Drill Size - Metric | 6.8 mm |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 69 mm, 69.00 mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| Item? | 435H84 |
| Length of Flute: | 2.7165" / 69.00mm |
| List Number | 2213 |
| List Style: | 2213 |
| Material | M42 HSS-Co 8%, HSS-CO 8. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Material: | Cobalt |
| Maximum Drilling Depth | 1-1/16 in, 1 1/16 in |
| Measurement System | Metric |
| Mfr. Model? | C70114 |
| Number of Flutes | 2 |
| Number of Pieces | 12 |
| Overall Length | 109 mm, 109.00 mm |
| Overall Length: | 4.2913" / 109.00mm |
| Point Angle | 135 deg |
| Point Type | Split Point, Split |
| Point: | 135? Split |
| Primary Material Applic. | Aluminum; Brass; Bronze. |
| Primary Material Applic. | M; N; P, M, N, P |
| Secondary Material Appl. | Cast Iron; Nickel; Stai. |
| Secondary Material Appl. | K, M, S, K; M; S |
| Series | 2213 |
| Shank Dia. | 6.8 mm |
| Shank Diameter | 6.8 mm |
| Shank Length | 40 mm |
| Shank Size | 6.8 mm Dia x 40 mm L |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Shank: | Straight |
| Spiral Direction | Right Hand |
| Standards | NAS 907 Type J |
| Style | 2213 |
| Surface Condition | Straw |
| Surface Condition: | Straw / Gold Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 6.8mm |
| Type | General Purpose Heavy D. |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6112461 | 4.93 | 8 | 12 | | Cleveland | | 4.93 @ 12 |
 | Megadepot | C70114 | 5.72 | 1 | 12 | | Cleveland | | 5.72 @ 12 |
 | usmegastore.com | C70114 | 5.92 | 1 | 12 | | Cleveland | | 5.92 @ 12 |
 | Zoro | G2842399 | 6.79 | 1 | 105 | | Cleveland | 0.66 | 6.79 @ 12 |
 | sustainablesupply.com | C2766832 | 6.86 | 1 | 12 | | Cleveland | 0.05 | 6.86 @ 12 |
 | bscsource.com | C70114 | 8.19 | 1 | 12 | | Cleveland | | 8.19 @ 12 |
 | National Supply Network | 74330812 | 9.4625 | 1 | 12 | | Cleveland | | 9.4625 @ 12 |
| Grainger | 435H84 | 9.53 | 1 | 12 | | CLEVELAND | | 9.53 @ 12 |
 | Guardian | 74330812 | 10.75 | 1 | 12 | | Cleveland | | 10.75 @ 12 |
