Murata LQP03TN15NJ02D

mpnLQP03TN15NJ02D
brandname: Murata Electronics
manufacturername: Murata Electronics

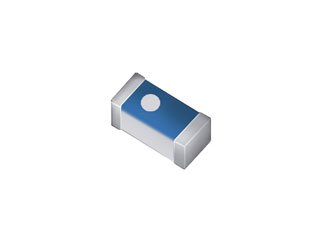

MURATA LQP03TN15NJ02D LQP Series 0201 15 nH ?5% Tol. 250 mA SMT High Frequency Chip Inductor - 15000 item(s)

MURATA LQP03TN15NJ02D LQP Series 0201 15 nH ?5% Tol. 250 mA SMT High Frequency Chip Inductor - 15000 item(s)

zoom

Brand: Murata
PartNumber: LQP03TN15NJ02D
Model: LQP03TN15NJ02D
PackageQuantity: 1
Manufacturer: MURATA
Label: MURATA

Attributes

Key	Value
Base Product Number	LQP03TN
Case - inch	0201
Case - mm	0603
Category	Inductors, Coils, Chokes
Current - Saturation (I.	-
Current Rating (Amps)	250 mA
DC Resistance (DCR)	700mOhm Max
Description	FIXED IND 15NH 250MA 70.
Detailed Description	15 nH Unshielded Thick .
Digi-Key Part Number	490-5570-2-ND - Tape & .
Frequency - Self Resona.	2.6GHz
Height - Seated (Max)	0.013" (0.33mm)
Inductance	15nH, 15 nH
Inductance Frequency - .	500 MHz
Manufacturer	Murata Electronics, MUR.
Manufacturer Product Nu.	LQP03TN15NJ02D
Manufacturer series	LQP
Manufacturer Standard L.	17 Weeks
Material - Core	Non-Magnetic
Mfr	Murata Electronics
Mounting	SMD
Mounting Type	Surface Mount
Operating current	0.25A
Operating Temperature	-55?C ~ 125?C
Operating temperature	-55...125?C
Package	Tape & Reel (TR)
Package / Case	0201 (0603 Metric)
Product Status	Active
Q @ Freq	12 @ 500MHz
Q factor	12
Ratings	-
Resistance	0.7?
Resonant frequency	2.6GHz
Series	LQP03
Shielding	Unshielded
Size / Dimension	0.024" L x 0.012" W (0..
Supplier Device Package	0201 (0603 Metric)
Tolerance	?5%
Type	Thick Film
Type of inductor	film

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TME	LQP03TN15NJ02D	0.0207	100	15000		MURATA		0.0207 @ 250
	Digi-Key	2357641	0.02272	1	715503		Murata Electronics		0.02272 @ 250
	Hotenda	H2127860	0.02624	1	250		Murata Electronics		0.02624 @ 250
	Future Electronics	3106323	0.0684	15000	250		Murata		0.0684 @ 15000
