- mpnCCMT432MP
- brandname: WIDIA
- manufacturername: WIDIA

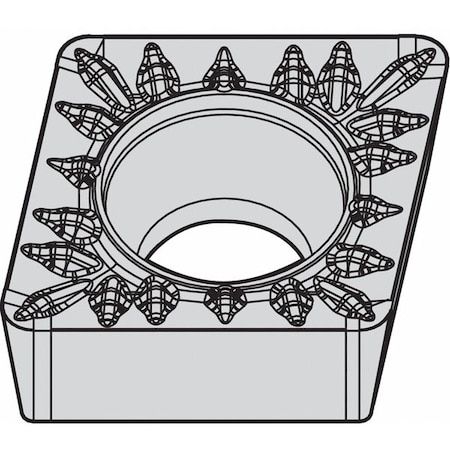

WIDIA CCMT432MP WP25CT Victory CCMT-MP High Performance Turning Inserts, Carbide, 0.031" / 0.8mm Radius, Medium Positive, Grade WP25CT
- Brand: WIDIA
- PartNumber: 4170221
- Model: 4170221
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: WIDIA Products Group
- Label: WIDIA Products Group
Attributes
| Key | Value |
|---|
| ANSI Code | CCMT432MP |
| ANSI Number | CCMT432MP |
| Chip-Breaker | Yes, MP |
| Chip-Breaker Code | MP |
| Chip-Breaker Style | On One Side |
| Clearance Angle | 7 Degrees |
| Coating | AlTiSiN |
| Coolant Fed | Non-Coolant Through |
| Corner Radius | 2, 1/32 in |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.90mm |
| Finish - Machining | AlTiSiN |
| For Use With | Toolholders, Boring Bars |
| Grade | WS10PT |
| Included Angle | 80 Degrees |
| Inscribed Circle | 0.500", 4 |
| Insert Application | Medium |
| Insert Holding Type | 40 Degrees to 60 Degre. |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Insert Size | 432 |
| Insert Style | CCMT |
| Insert Thickness | 0.1875" |
| ISO Number | CCMT120408MP |
| Item | Turning Insert, Diamond. |
| Manufacturer Grade | WS10PT |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.217" |
| No. of Edges | 4 |
| Non Ferrous (N) Compati. | Yes |
| Nose Radius | 0.031" |
| Number of Cutting Edges | 4 |
| Primary Material Applic. | Nickel, Stainless Steel. |
| Primary Material Applic. | M, S |
| Rake | Positive |
| Relief Angle | 7 Degrees |
| Seat Size | 432 |
| Secondary Material Appl. | Aluminum, Brass, Bronze. |
| Secondary Material Appl. | K, N, P |
| Shape | Rhombic |
| Super Alloy (S) Compati. | Yes |
| Thickness | 3/16 in |
| Workpiece Compatibility | Cast Iron (K), Nonferro. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | WID5684349 | 22.34030868 | 1 | 5 | | WIDIA | 0.18 | 22.34030868 @ 5 |
 | Zoro | G2818011 | 82.45 | 1 | 5 | | Widia | 0.18 | 82.45 @ 5 |
