Baldor Electric EHM3554T-5

B07FN5NQ1D

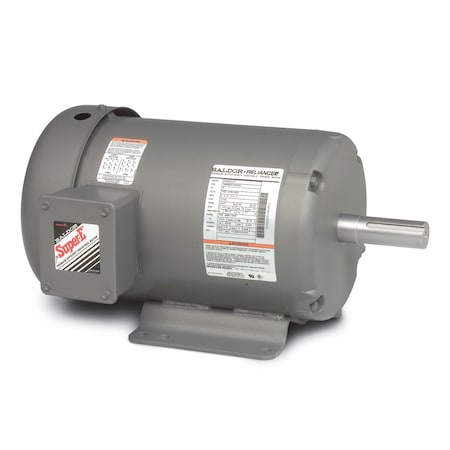

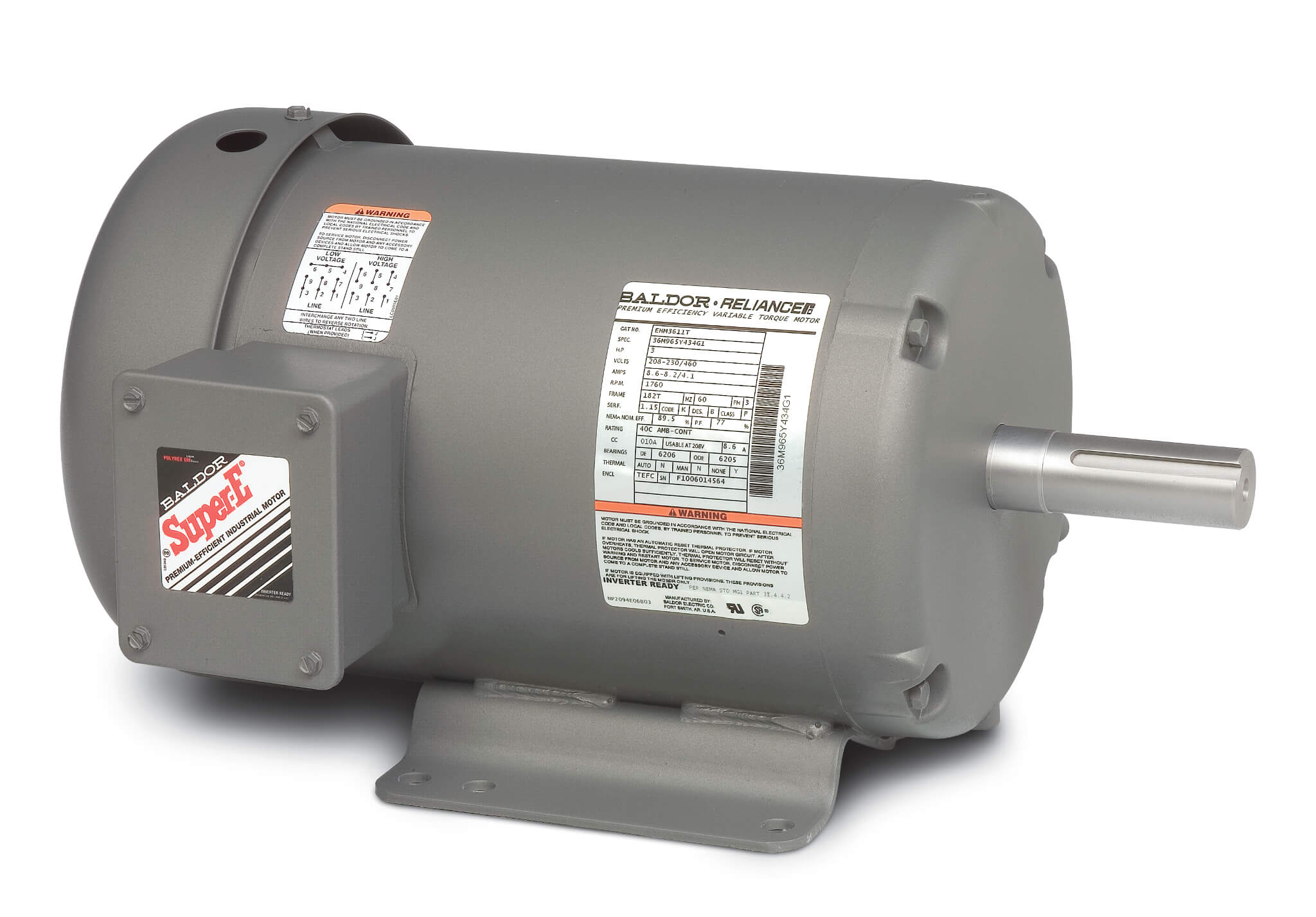

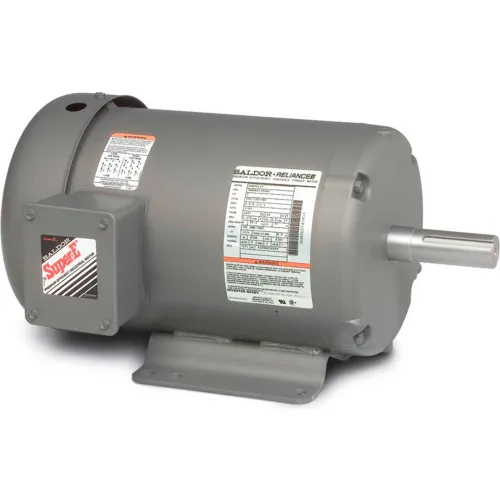

Baldor Electric, EHM3554T-5, 1.5HP, 1760RPM, 3PH, 575V, 145T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Baldor Electric, EHM3554T-5, 1.5HP, 1760RPM, 3PH, 575V, 145T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amps1.8
ApplicationHVAC
BearingsBall
Comments60 Hz
CompositionCast Iron
ConstructionCast Iron
Country of Origin (subj.United States
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency86.5%
Efficiency %86.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight44.00
Family SeriesBaldor Motors
FL Amps1.8
FL Efficiency86.5
Frame145T
Frame Type145T
Frequency60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1-1/2 hp
Horsepower Rating1.5 HP
HP1.5, 1-1/2
Hz60
Insulation ClassF
Inverter DutyYes
Item NumberEHM3554T-5
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #35Z141M887G1
Maximum Ambient Tempera.40? C
MountingFoot Mount, Rigid
Mounting TypeFoot Mount, Footed
NEMA Frame145T
Net Weight0 lbs
Nominal Voltage575 VAC, 600 VAC
Number of Speeds1
Overall Length13.29"
Part NumberEHM3554T-5
Phase3, 3 Phase
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1760 RPM, 1760, 1,760 R.
SeriesHV3 Super-E Series
Service Factor1.15
Shaft Diameter0.875"
Ship Weight44 lbs.
Special FeaturesInverter Ready
Speed (RPM)1760
Supply Voltage575 VAC
UPC Code781568604175
Voltage575V
Voltage (AC)575 VAC
Volts575
