Century RS2014

B000CDQIXS

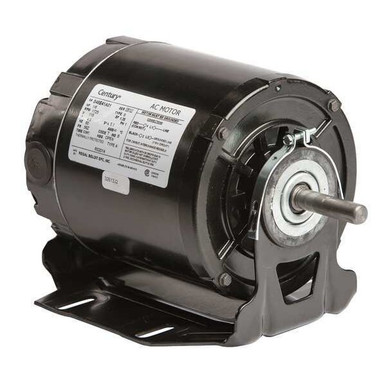

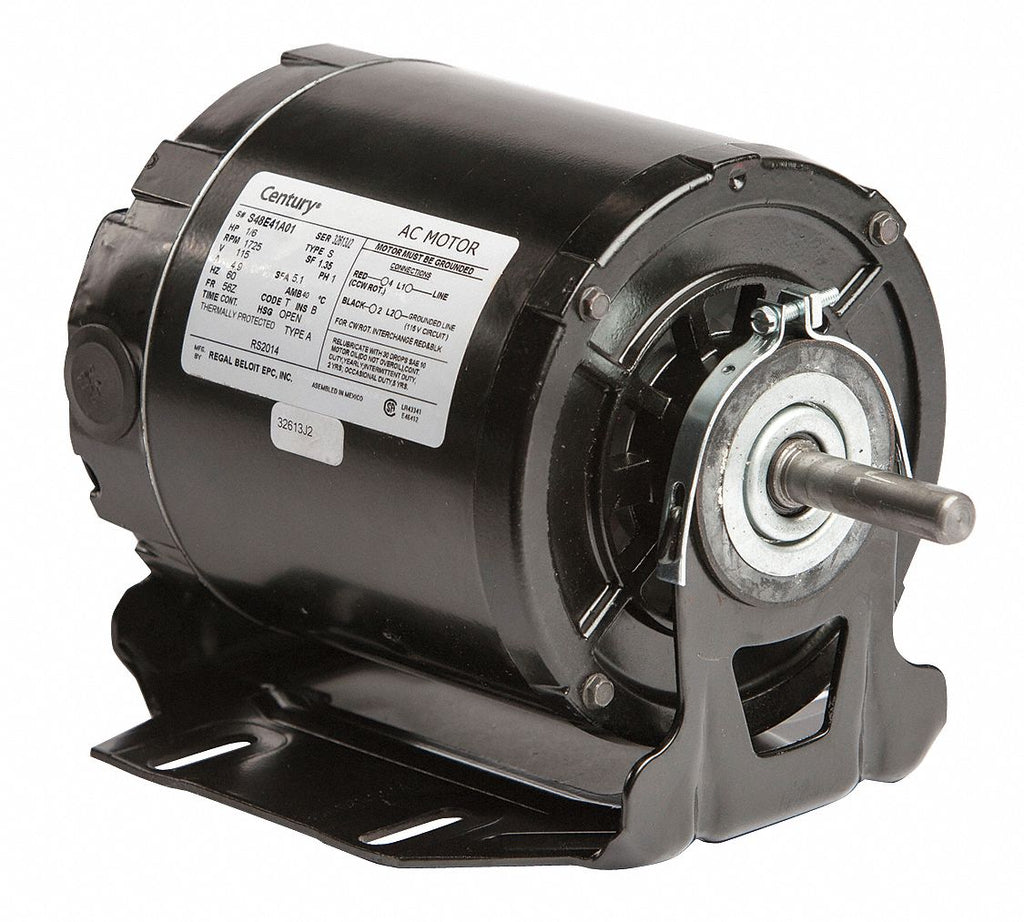

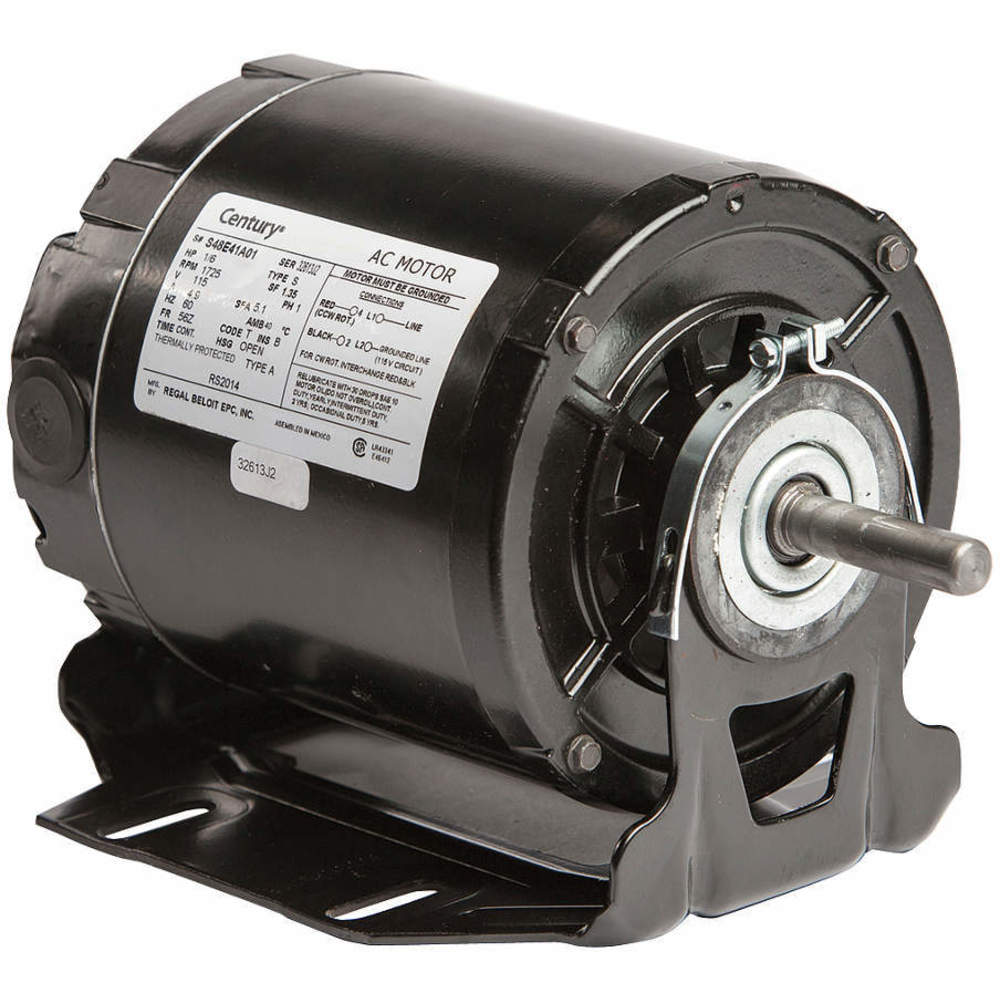

Motor, Split Ph, 1/6 HP, 1725, 115V, 56Z, Open

Motor, Split Ph, 1/6 HP, 1725, 115V, 56Z, Openzoom

Attributes

Key Value
Amps4.9
ASINB019OLB4IM
Batteries Required?No
BearingsSleeve
Body Dia.5 5/8 in, 5-5/8"
BrandCentury
Current Stock97
DutyContinuous
Duty CycleContinuous
EnclosureOPEN
Enclosure TypeOAO (Open Air Over)
Footnotes295
Frame56Z
Full Load Amps5.1
HP1/6
Hz60
Includes5/8" dia. Shaft Bushing
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemBelt Drive Motor
Item Package Quantity1
Lead TimeExpected to ship in 1-2.
Length Less Shaft7 5/8 in, 7-3/4"
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignSplit-Phase
Motor Diameter6-1/2"
Motor Enclosure DesignOpen Air-Over, Open Dri.
Motor Frame MaterialRolled Steel
Motor Mounting PositionAll Angle
Motor Mounting TypeCradle Base
Motor Service Factor1.35
Motor Shaft RotationCW/CCW
Motor Sub ApplicationBelt Drive Fan/Blower
Motor Thermal ProtectionAuto
MountingCradle
MpnRS2014
Nameplate RPM1,725
No. of Speeds1, 2
Nominal Efficiency41.0%
Number of Speeds1
Overall Length9-5/8", 9 5/8 in
Part NumberRS2014
Phase1, Single
Product TypeSplit Phase
Resilient Ring Dia.2-1/2", 2 1/2 in
Ring to Ring Center6-15/16"
RotationReversible
RPM1725
RPM Range1,701-1,800, 1,400 - 1,.
RS2014 is listed in Cen.A.O. Smith S48E41A01, D.
Service Factor (SF)1.35
Shaft Dia.5/8 in, 1/2"
Shaft Diameter1/2"
Shaft Length2 in, 1-7/8", 2"
Ship Weight13 lbs.
SKUZO-G2083286
StandardsCSA Certified
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Voltage115, 115V AC
Voltage Compatibility115/208-230V AC, 115/23.
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply581204068.422In StockCentury68.42 @ 2
grainger.caAOSRS2014117.068755521In StockCENTURY12.55117.06875552 @ 1
thumbzoomAmazonSCB019OLB4IM127.481In StockCentury Electric Motor127.48 @ 1
thumbzoomZoroG2083286137.991112Century12.55137.99 @ 1
AmazonTPB019OLB4IM146.981In Stock2Century146.98 @ 1
thumbzoomsimsupply.comZO-G2083286163.4197Century163.4 @ 1
thumbzoomktool.netRS2014172.71In StockCentury172.7 @ 1
thumbzoomVoomi SupplyRS2014199.81In StockCentury Motors199.8 @ 1
thumbzoomemotorpro.comRS2014203.381In StockCentury13.0203.38 @ 1
thumbzoomsustainablesupply.comC1561755208.171In StockCentury12.55208.17 @ 1
thumbzoommidwestapplianceparts.comRS2014-AO-P211.241In StockAO Smith211.24 @ 1
hvacdiscountstore.comCEN--RS2014240.011In StockCENTURY MOTORS240.01 @ 1
thumbzoomRaptor SuppliesAD9QKU327.383551In StockCENTURY327.38355 @ 1
