CAI - HUBBELL WIRING DEVICE-KELLEMS USB15AC5

mpnUSB15AC5
brandname: HUBBELL WIRING DEVICE-KELLEMS
manufacturername: HUBBELL WIRING DEVICE-KELLEMS

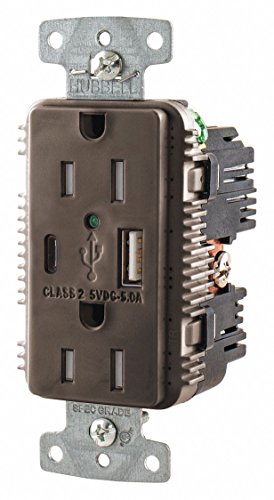

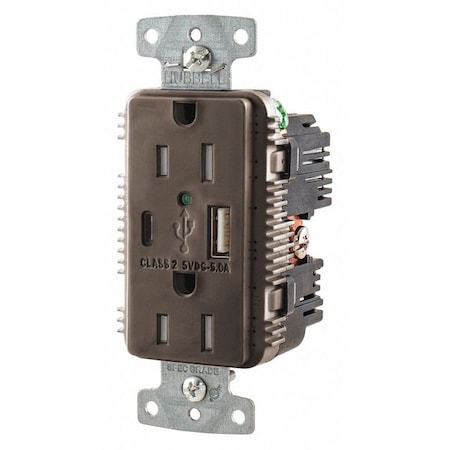

Hubbell Wiring Device-KELLEMS 15A Commercial Environments USB Charger Receptacle, Brown

Brand: CAI - HUBBELL WIRING DEVICE-KELLEMS
PartNumber: USB15AC5
PackageQuantity: 1
Manufacturer: CAI - HUBBELL WIRING DEVICE-KELLEMS
Label: CAI - HUBBELL WIRING DEVICE-KELLEMS

Attributes

Key	Value
Amps - Plugs and Recep.	15
Amps - Plugs and Recept.	15
Application Environment	Commercial
Approvals	cUL
Color	Brown
Color - Plugs and Recep.	Brown
Color Family	Brown
Contact Material	Plated Steel
Country of Origin	CN - China
Country of Origin (subj.	China
Current Rating	15 A
ECCN	EAR99
Electrical Connection T.	Straight Blade
Family Series	Hubbell Plugs & Recepta.
GFCI	No
Gross Weight	0.4 lbs
Grounding	Grounded
Horsepower Rating	1/2 hp
Housing Color	Brown
Housing Material	RTP
HP	1/2 hp
Isolated Ground	No
Item	USB Charger Receptacle
Item - Plugs and Recept.	USB Charger Receptacle
Item Number	USB15AC5
Manufacturer	Hubbell
Manufacturer Part Number	USB15AC5
Market	Commercial
Material of Construction	Nylon
Maximum Operating Tempe.	75 Degrees C
Maximum Wire Size	10 AWG
Minimum Operating Tempe.	-40 Degrees C
Minimum Wire Size	14 AWG
Mount Hole Center-to-Ce.	3.28 in
Mount Type	Flush
Mounting Type - Plugs a.	Flush
NEMA Configuration	5-15R
NEMA Receptacle Configu.	5-15R
NEMA Receptacle Configu.	5-15R
Net Weight	0.345 lbs
No. of Poles	2-Pole
No. of Wires	3-Wire
Number of Outlets	2
Number of Poles	2
Number of USB Ports	2
Number of Wires	3
Outlet Type - Plugs and.	Decorator Duplex
Overall Depth	1.82 in
Phase	1
Power Indicating Light	Yes
Power Indicator	Yes
Product Series	Commercial Grade USB Ch.
Receptacle Type	Duplex
Resistance Properties	Tamper Resistant
Standards	cULus
Style	Style Line Decorator
Tamper Resistance	Yes
Tamper Resistant	Yes
Type	One Type A, One Type-C .
UL 94 Flammability Rati.	V-2
UNSPSC	39121406
USB	Yes
USB Charging Capacity	5.0A @ 5V DC
USB Connection Type	A, C
USB Connector	Type A and C
Voltage	125 VAC
Voltage - Plugs and Rec.	125V AC
Voltage Rating	125V AC
Weather Resistant	No
Weather Resistant - Plu.	No
Wire Connection Type	Screw Terminals
Wire Connection Types	Screw Terminals
Wiring Method - Plugs a.	Back and Side

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G5773280	39.49	1	In Stock	25	Hubbell	4.0	39.49 @ 1
Galco	USB15AC5-HBBL	42.49	1	In Stock		Hubbell	0.4	42.49 @ 1
turtle.com	HEP USB15AC5	45.73	1	In Stock		Hubbell		45.73 @ 1
MRO Supply	5021982	46.43	1	In Stock		Hubbell Wiring		46.43 @ 1
gordonelectricsupply.com	USB15AC5	47.13	1	In Stock		HUBBELL		47.13 @ 1
Graybar	25882605	54.8352	1	In Stock		Hubbell Wiring Device - Kellems		54.8352 @ 1
Newark	94Y4128	64.03	1	In Stock		HUBBELL WIRING DEVICES		64.03 @ 1
