Century 9650

B001OM8Y06

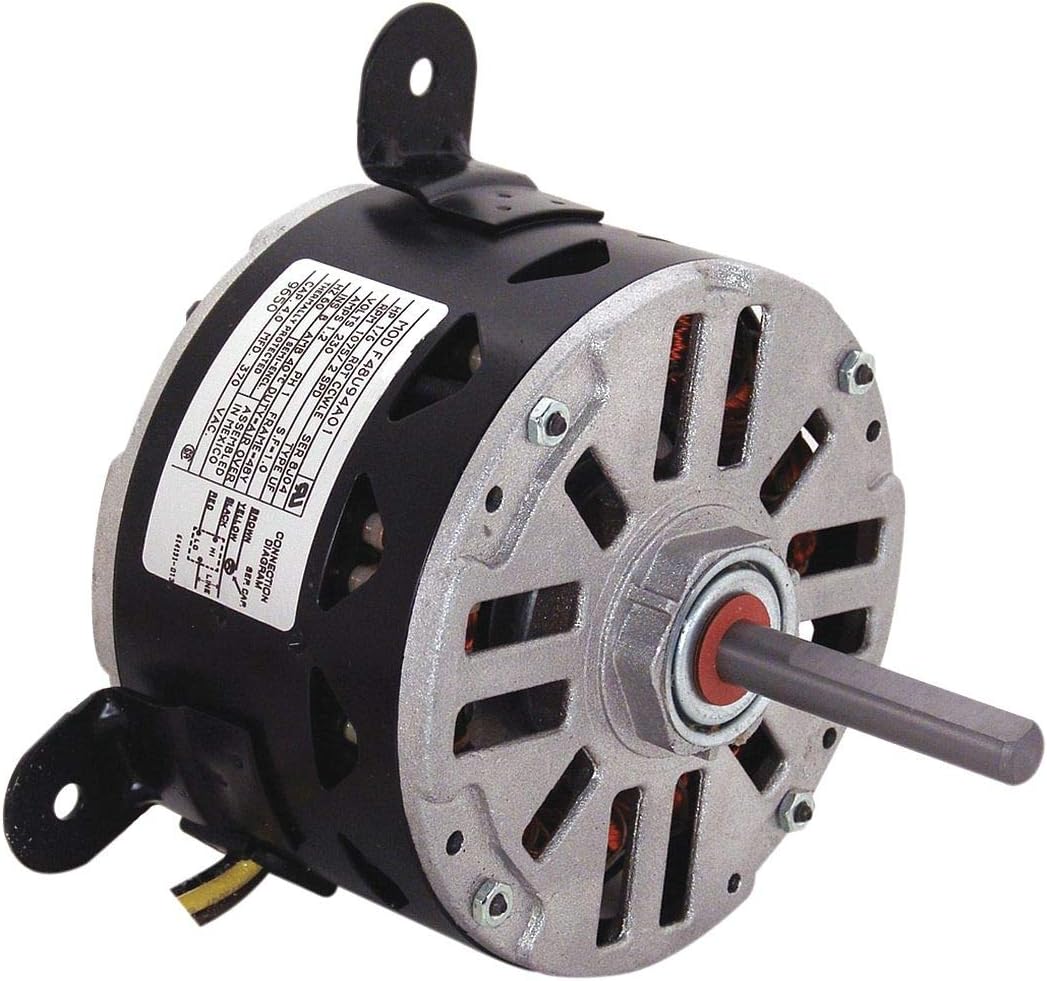

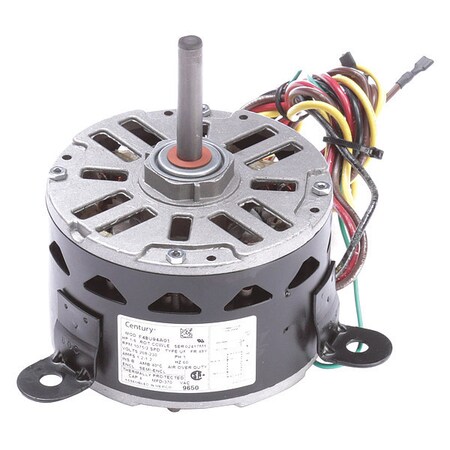

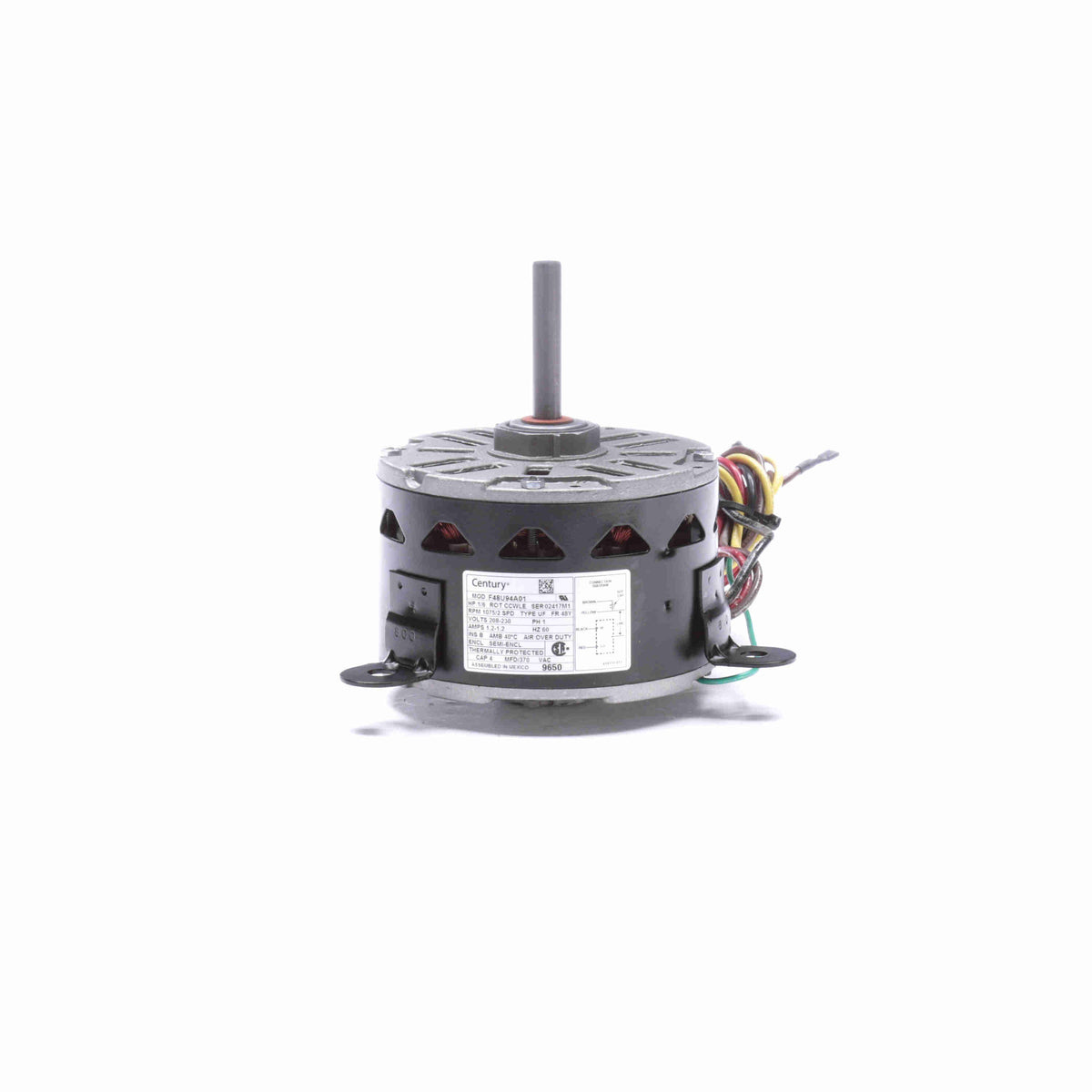

Mtr, PSC, 1/6 HP, 1075 RPM, 208-230V, 48Y, OAO

Mtr, PSC, 1/6 HP, 1075 RPM, 208-230V, 48Y, OAOzoom

Attributes

Key Value
9650 is listed in Centu.A.O. Smith F48U94A01, D.
Amps1.2/1.2
ApplicationFans and Blowers
ASINB00BJPX9LW
Batteries Required?No
BearingsSleeve
Body Dia.5-3/4"
Capacitor4MFD @ 370VAC Required
Capacitor Required2MDV3
Country of Origin (subj.Mexico
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
Frame48Y
Full Load Amps1.2
HP1/6
Hz60
Ins. ClassB
Insulation ClassB
ItemDirect Drive Motor
Item Package Quantity1
Length Less Shaft4-9/16"
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationOEM Replacement
Motor BearingsSleeve
Motor DesignPermanent Split Capacit.
Motor Diameter5-5/8"
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeLug
Motor Service Factor1.00
Motor Shaft RotationCCWLE
Motor Sub ApplicationDirect Drive Fan/Blower
Motor Thermal ProtectionAuto
MountingBand/Bracket/Ring
Nameplate RPM1075
No. of Speeds2
Number of Shafts1
Number of Speeds2
OEM Replacement BrandCarrier/BDP
Overall Length7"
Part Number9650
Phase1
Product TypePSC (Permanent Split Ca.
Replacement For5KCP39HGD797S
RotationCW Shaft End
RPM1075
RPM Range1001-1100
Service Factor (SF)1.00
Shaft Dia.1/2"
Shaft Diameter1/2"
Shaft Length2-9/16", 3-1/8"
Ship Weight10 lbs.
StandardsUL Recognized, CSA Cert.
Thermal ProtectionAutomatic
UNSPSC Code39120000
Voltage208-230
Voltage Compatibility115/208-230, 208-230, 2.
Volts208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Grainger4ME21161.0150CENTURY161.0 @ 1
thumbzoomAmazonSCB00BJPX9LW169.721In StockCentury169.72 @ 1
thumbzoomZoroG2033739183.491In Stock15Century183.49 @ 1
thumbzoomktool.net9650197.321In StockCentury197.32 @ 1
thumbzoompatrickssupply.com9650235.01In StockCENTURY235.0 @ 1
thumbzoomemotorpro.com9650243.541In StockCentury10.0243.54 @ 1
thumbzoomindustrialstores.com9650259.231In Stock19Century Motors by Regal Beloit259.23 @ 1
thumbzoommidwestapplianceparts.com9650-AO-P262.061In StockAO Smith262.06 @ 1
