A. O. Smith 9677

B000LEYJX4

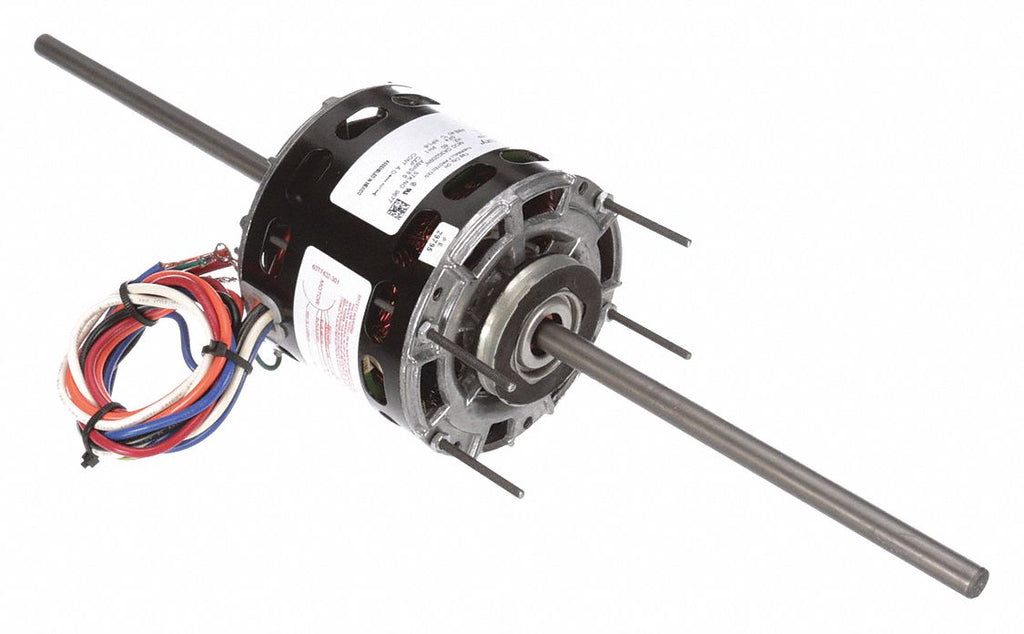

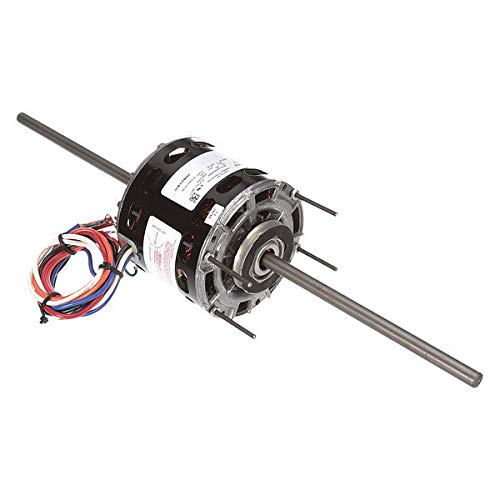

A.O. Smith 9677 1/6-1/10-1/12-1/15 HP 115 Volt 1050 RPM Blower Motor 9677

A.O. Smith 9677 1/6-1/10-1/12-1/15 HP 115 Volt 1050 RPM Blower Motor 9677zoom

Attributes

Key Value
9677 is listed in Centu.A.O. Smith DA3G209, Day.
Amps8.6
BearingsSleeve
Body Dia.5 in, 5"
Bolt Circle Dia.4 5/8 in, 4-5/8"
BrandCentury
Capacitor RequiredNo
Country of Origin (subj.Mexico
Current Stock7
DutyContinuous
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
Frame42Y
Full Load Amps8.1, 8.6
HP1/6
Hz60, 60 Hz
IncludesResilient Mounting Ring
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemRoom Air Conditioner Mo.
Lead Length26 in, 36"
Length Less Shaft5 3/16 in, 5-3/16"
MaterialHAWA
Max. Ambient Temp.40 Degrees C, 40 Degre.
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Diameter5"
Motor Enclosure DesignOpen Air-Over
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeRing, Cradle Base
Motor Service Factor1, 1.00
Motor Shaft DesignFlat
Motor Shaft RotationCCWLE
Motor Sub ApplicationRoom Air Conditioner
Motor Thermal ProtectionAuto
MountingCradle/Stud
Mounting Holes4
Mounting Stud Pattern2-5/16" x 4", 2-5/16 in.
Mpn9677
Nameplate RPM1,050
No. of Speeds4
Number of Shafts2
Number of Speeds4
Overall Length21 1/4 in
Phase1, Single
Product TypeShaded Pole
Resilient Ring Dia.2-1/2", 2 1/2 in
Ring to Ring Center4 13/16 in, 4-13/16"
RotationDouble Shafted
RPM1050
RPM Range1,001 - 1,100, 1,001-1,.
Service Factor (SF)1.00
Shaft Dia.1/2", 1/2 in
Shaft Diameter1/2"
Shaft Length8", 8-1/2" x 8-1/2", 8 .
Ship Weight7 lbs.
SKUCU-3455553532
StandardsCSA Certified, UL Recog.
Stud Quantity4
Stud Size#8-32 x 1-5/8 in, #8-32.
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
UPC007866740095
Usable @ 200VNo
Usable @ 208VNo
Voltage115, 115V AC
Voltage Compatibility115/208-230V AC, 115/23.
Volts115
Weight7 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0765904166.91In StockCentury11.85166.9 @ 1
AmazonSCB008DJ1FZY171.761In StockCentury171.76 @ 1
thumbzoomktool.net9677183.131In StockCentury183.13 @ 1
thumbzoomsimsupply.comCU-3455553532187.011In StockCentury187.01 @ 1
grainger.caAOS9677198.67636531In StockCENTURY11.85198.6763653 @ 1
thumbzoomemotorpro.com9677226.031In StockCentury7.0226.03 @ 1
thumbzoommidwestapplianceparts.com9677-AO-P234.761In StockAO Smith234.76 @ 1
thumbzoomindustrialstores.com9677257.021In Stock19Century Motors by Regal Beloit257.02 @ 1
thumbzoomsustainablesupply.comC1561799261.761In StockCentury11.85261.76 @ 1
thumbzoomRaptor SuppliesAD9TWR322.25491351In StockCENTURY322.2549135 @ 1
