Century 9718

B00BXKIKCG

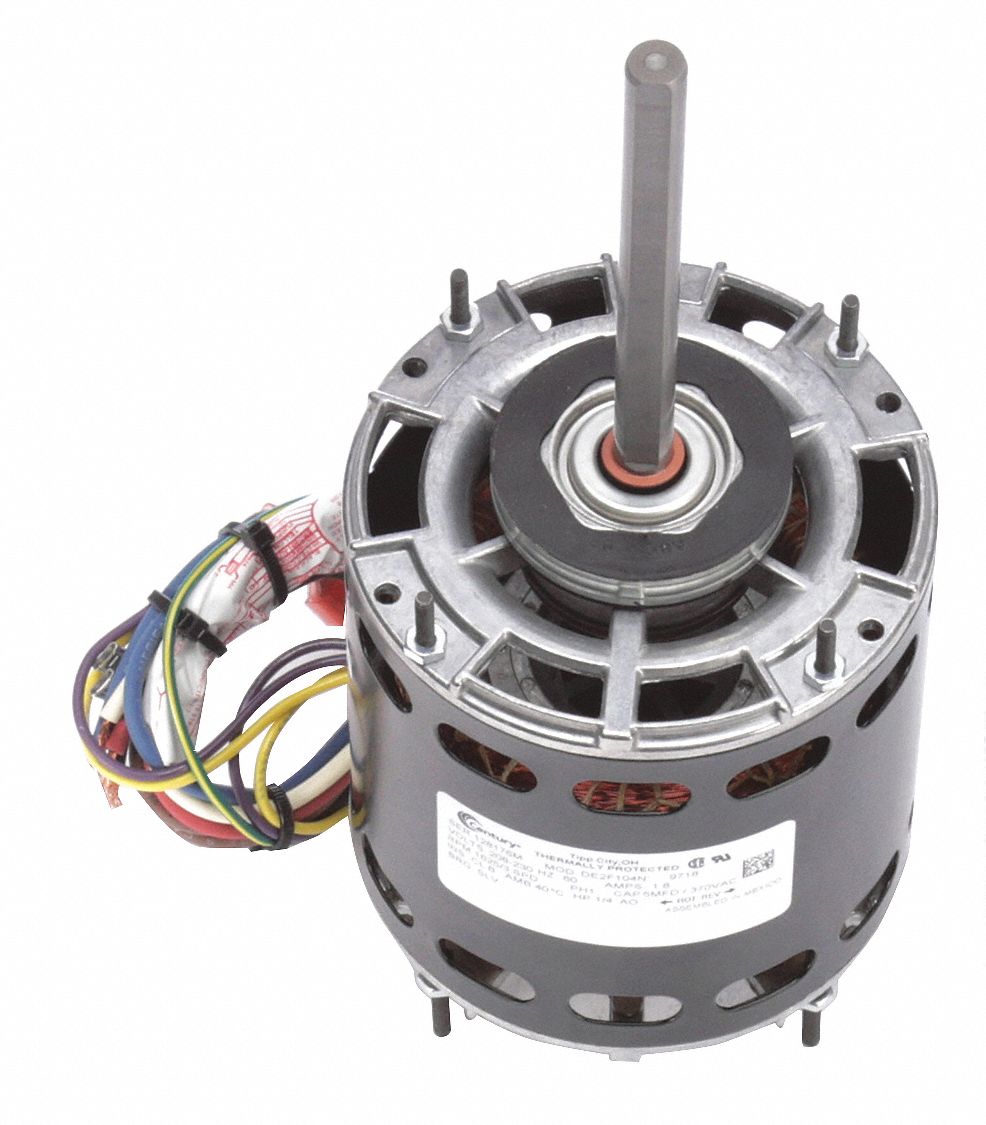

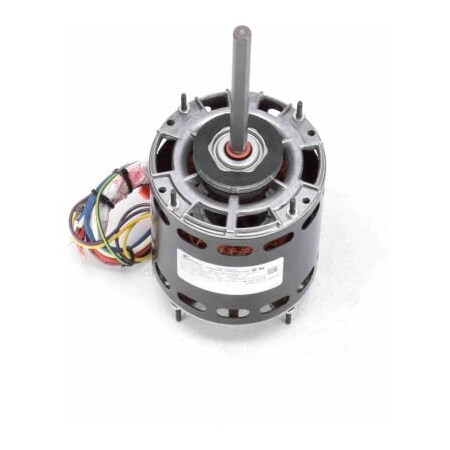

Motor, PSC, 1/4 HP, 1625, 208-230V, 42Y, OAO

Motor, PSC, 1/4 HP, 1625, 208-230V, 42Y, OAOzoom

Attributes

Key Value
9718 is listed in Centu.A.O. Smith DE2F104, Day.
Amps1.8
ApplicationBlowers, Fans and Air C.
ASINB0091BCA6G
Batteries Required?No
BearingsSleeve
Body Dia.5 in
Bolt Circle Dia.4 5/8 in
BrandCentury Electric Motor
Capacitor5MFD @ 370VAC Required
Capacitor Required2MDV4
Country of Origin (subj.Mexico
DutyContinuous
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
Frame42Y
Full Load Amps1.08
HP1/4
Hz60, 60 Hz
IncludesResilient Mounting Ring
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemDirect Drive Blower Mot.
Item model number9718
Item Package Quantity1
Lead Length13 in
Length Less Shaft6 3/16 in
ManufacturerCentury
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignPermanent Split Capacit.
Motor Diameter5"
Motor Enclosure DesignOpen Air-Over
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeStud
Motor Service Factor1
Motor Shaft DesignFlat
Motor Shaft RotationCW/CCW
Motor Sub ApplicationDirect Drive Fan/Blower
Motor Thermal ProtectionAuto
MountingBand/Ring/Stud
Mounting Holes4
Mounting Stud LocationBoth Ends
Mounting Stud Pattern3-1/4 in x 3-1/4 in
Mpn9718
Nameplate RPM1,625
No. of Speeds3
Number of Shafts1
Number of Speeds3
Overall Length12 7/16 in
Package Quantity1
Part Number9718
Phase1, Single
Product TypePSC (Permanent Split Ca.
Resilient Ring Dia.2 1/2 in
Ring to Ring Center5 13/16 in
RotationReversible
RPM1625
RPM Range1,601-1,700
Service Factor (SF)1.00
Shaft Dia.1/2 in
Shaft Diameter1/2"
Shaft Length5-3/4", 5 13/16 in
Ship Weight12 lbs.
SKUZO-G0348467
StandardsCSA Certified, UL Recog.
Stud Quantity4
Stud Size#8-32
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
UNSPSC Code39120000
UPC00663001033202
Usable @ 200VNo
Usable @ 208VYes
Voltage208-230V AC
Voltage Compatibility115/208-230V AC, 200-23.
Volts208-230
Weight12 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomVoomi Supply971814.991In StockCentury Motors14.99 @ 1
thumbzoomAmazonB0091BCA6G202.741In StockCentury202.74 @ 1
thumbzoomsustainablesupply.comC1561828262.41In StockCentury9.65262.4 @ 1
thumbzoomindustrialstores.com9718267.051In Stock19Century Motors by Regal Beloit267.05 @ 1
thumbzoomemotorpro.com9718267.921In StockCentury12.0267.92 @ 1
thumbzoommidwestapplianceparts.com9718-AO-P269.371In StockAO Smith269.37 @ 1
Global IndustrialWBB2776425288.951In Stock13CENTURY288.95 @ 1
thumbzoomNational Supply NetworkB2776425292.441In StockAO SMITH292.44 @ 1
thumbzoomsimsupply.comZO-G0348467294.21In StockCentury Electric Motor294.2 @ 1
hvacdiscountstore.comCEN--9718313.491In StockCENTURY MOTORS313.49 @ 1
thumbzoomZoroG104937247567.991In StockA.O. Smith567.99 @ 1
