Bussmann / Eaton S500-8-R

mpnBK/S500-8-R
brandname: Eaton Electronics
manufacturername: Eaton Electronics

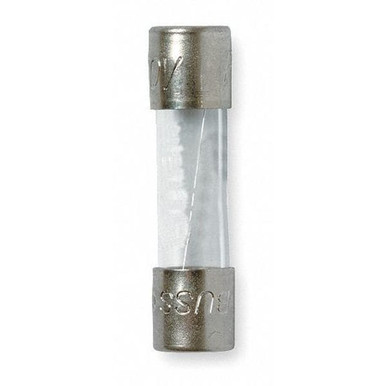

S500-8-R, Fuse Miniature Fast Acting 8A 250V Holder Cartridge 5 X 20mm Glass (25 Items)

Brand: Bussmann / Eaton
PartNumber: S500-8-R
Model: S500-8-R
Manufacturer: Bussmann / Eaton
Label: Bussmann / Eaton

Attributes

Key	Value
AC Voltage Rating	250V AC
Alarm Contact	No
Alternate Mfr Part Numb.	S500-8-R
Alternate Part No.	504-BK/S500-8-R
Amperage Rating:	8 A
Amps	8A
Application	Electronic Circuits, Cy.
Approval Agency	BSI, CSA, cURus, SEMKO,.
Approvals	UL
ASIN	B011NNC64A
Batteries Required?	No
Body Material	Glass
Body Style	Cylindrical
Brand	Bussmann / Eaton, Eaton.
Breaking Capacity @ Rat.	80A
Case Diameter	5.2 mm
Case Length	20 mm
Catalog Number	S500-8-R
Category	Circuit Protection, Gla.
Characteristic	Fast Acting
Color	-
Compatible Fuse Block S.	HTB
Connection	Ferrule End X Ferrule E.
Connection:	Ferrule End X Ferrule E.
Country of Origin	CN - China, China, CN
Current Rating	8 A
Current Rating (Amps)	8 A
Current Stock	197
DC Cold Resistance	0.01 Ohms
DC Voltage Rating	Not Rated
Description	FUSE GLASS 8A 250VAC 5X.
Detailed Description	8 A 250 V AC DC Fuse Ca.
Diameter	5 mm
Diameter (in)	0.2 "
Diameter (mm)	5 mm
Digi-Key Part Number	S500-8-R-ND
Dimensions	5.2 x 20 mm, 20 mm L x .
ECCN	EAR99
Element	Single
End Type	Ferrule End X Ferrule E.
Equivalent Brand and Se.	Bussmann GDB, Bussmann .
Equivalent Series	217, GDB, GSB, S500
Family Series	Bussmann Fuses, S500 Se.
Fits Fuse Block Style	Nonrejection
Frequency Rating	50Hz, 50 Hz
Frequency Rating:	50 Hz
Fuse Amps	8A
Fuse Dimension	20 L x 5 mm Dia.
Fuse Interrupt Rating	80A at 250VAC, 80A at 2.
Fuse Size	20mm L x 5mm dia
Fuse Size/Group	5 mm x 20 mm
Fuse Type	Fast Acting Low Breakin.
Gross Weight	0.0001 lbs
Indicating / Nonindicat.	Indicating
Indicator Style	Without Indicator
International Shipping	No
Interrupt Rating	35 A @ 250 V, 80 A, 80A.
Item	Fuse
Item Number	S500-8-R
Item Package Quantity	50
Item Type	Electronic, Fast Acting
Lead Time	Expected to ship in 1-2.
Length	20 mm
Length (In)	0.8 "
Length (mm)	20.32 mm
Length (Straight Wirewa.	20 mm
Made in USA	No
Manufacturer	Eaton - Electronics Div.
Manufacturer Part No.	BK/S500-8-R
Manufacturer Part Number	S500-8-R
Manufacturer Product Nu.	S500-8-R
Manufacturer Standard L.	9 Weeks
Material	Glass, Glass Tube, Nick.
Mfr	Eaton - Electronics Div.
Mounting Style	Holder / Clip
Mounting Type	Requires Holder, Clip
Mpn	S500-8-R
Net Weight	0.0006 lbs
Operating Temperature	-
Package	Bulk
Package / Case	5mm x 20mm
Package Type	Cartridge
Packaging	Bulk
Part # Aliases	BK-S500-8-R
Part Number	S500-8-R
Primary Type	Single Use Fuses
Product	Specialty Fuses
Product Category	Cartridge Fuses
Product Series	S500
Product Status	Active
Product Type	Glass Fuse
Rated Voltage	250V
Rejection / Nonrejection	Nonrejection
Resistance	10 mOhms
Response Time	Fast Blow
RoHS	Yes
Series	S500 Series, S500
Size	5.20 mm Diameter X 20.0.
Size / Dimension	0.205" Dia x 0.787" L (.
Size:	5.20 mm Diameter X 20.0.
SKU	ZO-G1145697
Special Features	Low Breaking Capacity, .
Speed	Fast Acting
Standard	cURus; CSA Certified, U.
Standard:	UL (CANADA AND US), CSA.
Standards	CE, CSA Certification, .
SubCategory	Electrical
Termination	Cartridge
Termination Style	Clip
Trip Indicator	No
Type	European Ferrule Fuse, .
Type:	Electronic, Fast Acting
Unit Weight	1 g
UNSPSC	39121607
UPC	051712644266
Visual Indication	Glass Fuse
Voltage (AC)	250 VAC
Voltage Rating	250 VAC, 250 V
Voltage Rating - AC	250 V
Voltage Rating AC	250 V
Voltage Rating:	250 VAC

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
RS Delivers	537-0972	0.2784	1	490		Eaton		0.2784 @ 100
Hotenda	H576225	0.704	1	100		Eaton (formerly Cooper Bussmann)		0.704 @ 100
Newark	92K9979	0.716	10	100		EATON BUSSMANN		0.716 @ 100
Radwell	S500-8-R	1.03	5	100		BUSSMANN	1.0	1.03 @ 100
Onlinecomponents.com	S500-8-R	1.46	1	992		BUSSMANN / EATON		1.46 @ 100
Arrow	BK/S500-8-R	1.55	1	710		Cooper Bussmann		1.55 @ 100
Walker Industrial	S500-8-R	1.6	5	100	17	Cooper Bussmann		1.6 @ 100
AI Consolidated	S500-8-R-BUSSMANN	1.73	1	100		Bussmann Eaton Cooper Fuses	0.0136	1.73 @ 100
Dale-Electric	S500-8-R	1.76	1	100		Cooper Bussmann		1.76 @ 100
swatee.com	BK/S500-8-R	1.85	1	100		Eaton		1.85 @ 100
Waldom	EATON S500-8-R	1.92	1	100		Eaton		1.92 @ 100
us.rs-online.com	74057095	2.67	100	100		Eaton Electronics		2.67 @ 100
Galco	S500-8-R-BUSS	2.88	5	100		Bussmann	0.0006	2.88 @ 100
crescentelectric.com	259546	3.69	1	100		Eaton Bussmann series		3.69 @ 100
Platt.com	0966656	3.84	1	100		Eaton/Bussmann Series		3.84 @ 100
Digi-Key	7718516	5.176	5	100		Eaton - Electronics Division		5.176 @ 100
Zoro	G1145697	10.3	1	222		Eaton Bussmann	0.03	10.3 @ 100
sustainablesupply.com	C1177073	17.21	1	100		Eaton	0.03	17.21 @ 100
simsupply.com	ZO-G1145697	18.17	1	197		Eaton Bussmann		18.17 @ 100
Raptor Supplies	AB8XFT	30.3137055	1	100		BUSSMANN		30.3137055 @ 100
AmazonTP	B011NNC64A	61.11	1	100	20	BUSSMANN BY EATON		61.11 @ 100
AmazonSC	B011NNC64A	66.88	1	100		Eaton Bussmann	0.01	66.88 @ 100
turtle.com	BUS BK/S500-8-R	262.6	1	100		Eaton		262.6 @ 100
Graybar	25090318	431.536	5	100		Bussmann (Eaton)		431.536 @ 100
