MARATHON 9032

mpn9032
brandname: MARATHON
manufacturername: MARATHON

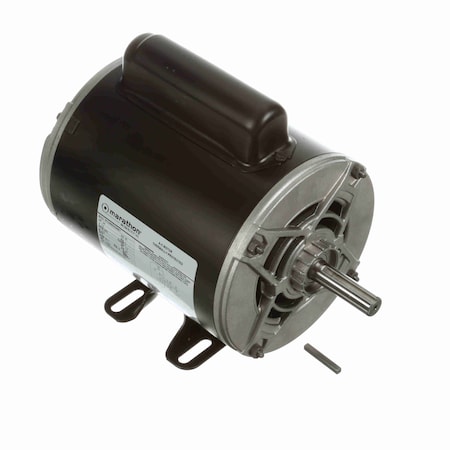

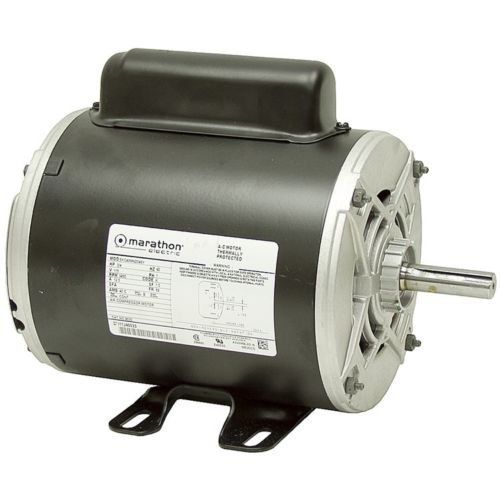

3/4 HP 3450 RPM 115 VOLT AC AIR COMPRESSOR MOTOR MARATHON 10-2786

3/4 HP 3450 RPM 115 VOLT AC AIR COMPRESSOR MOTOR MARATHON 10-2786

zoom

Brand: MARATHON
PartNumber: 9032
Model: 9032
Manufacturer: Marathon
Label: Marathon

Attributes

Key	Value
Alternate Mfr Part Numb.	5KC49MN2049Y
Amps	12.5
Bearings	Ball
Brand	Marathon
C-Dimension	11.14 (in.)
Catalog Number	9032
CE	N
Country of Origin (subj.	Mexico
CSA	Y
Current Rating	12.5 A
DE Bearing Type	Ball
DEM Reference	9032
Duty	Continuous
Duty Cycle	Continuous
Efficiency	0.595, 59.5
Electrical Type	Capacitor Start Inducti.
Enclosure Material	Steel
Enclosure Type	ODP (Open Dripproof), D.
Family Series	Marathon Electric Misce.
Frame	56
Frame Material	Rolled Steel
Frame Type	56
Frequency	60, 60 Hz
Gross Weight	0 lbs
Horsepower Rating	0.75 HP
HP	3/4
Hz	60
Insulation Class	B
Insulation Type	Class B
IP Code	-
Item Number	9032
KVA Code	K
Manufacturer	Marathon Electric
Manufacturer Model #	5KC49MN2049Y
Manufacturer Part Number	5KC49MN2049Y
Max Ambient	40?C
Maximum Ambient Tempera.	40? C
Motor Diameter	6-1/2"
Motor Orientation	HOR
Motor Shell Length	6.92"
Mounting	Base
Mounting Orientation	Horizontal
Mounting Type	Rigid Base
Net Weight	27 lbs
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	11.14"
Phase	1, 1 Phase
Product Category	NEMA Definite Purpose A.
Product Type	Capacitor Start
Rotation	Clockwise, CCW Shaft End
RPM	3450 RPM, 3450
RPM (Nameplate)	3450
RPM (Number of Poles)	2 (1801 RPM to 3600 RPM)
Service Factor	1
Shaft Diameter	5/8 (in.), 5/8"
Shaft Extension	1.88 (in.)
Shaft Length	1.88"
Shaft Type	-
Ship Weight	27 lbs.
Special Features	Service Factor - 1
Speeds	1
Standards	UL Recognized
Supply Voltage	115 VAC
Thermal Protection	Manual
Type	Capacitor Start Inducti.
Type of Overload Protec.	MAN
UL	Recognized
UPC Code	722856003591
Volts	115

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Galco	9032-MARA	93.49	1	In Stock		Marathon Electric	27.0	93.49 @ 1
	apexindustrialautomation.com	9032	94.73	1	5		Marathon		94.73 @ 1
	cshincorporated.com	M9032	106.79	1	In Stock		Marathon	16.0	106.79 @ 1
	us.rs-online.com	72238164	115.04	1	In Stock		Marathon Motors		115.04 @ 1
	emotorpro.com	9032	119.16	1	In Stock		Marathon	27.0	119.16 @ 1
	Zoro	G2477681	121.45	1	In Stock	10	Marathon		121.45 @ 1
	Dreisilker	MA-RBC-9032	126.25	1	In Stock		Marathon		126.25 @ 1
	electricmotorwholesale.com	9032	203.0	1	In Stock		MARATHON		203.0 @ 1
