Parker 151F-8-6

mpn151F-8-6
brandname: PARKER
manufacturername: PARKER

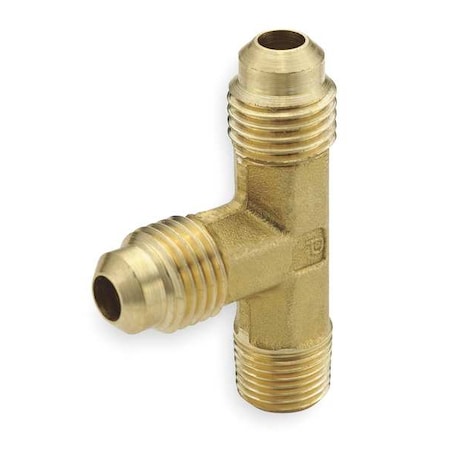

Parker 151F-8-6 Male Run Tee 151F

Parker 151F-8-6 Male Run Tee 151F

zoom

Brand: Parker
PartNumber: 151F-8-6
Model: 151F-8-6
Size: 0
PackageQuantity: 1
Binding: Misc.
Manufacturer: Parker
Label: Parker

Attributes

Key	Value
Application	Air, Flammable Liquid, .
Basic Pipe Fitting Mate.	Metal
Basic Pipe Fitting Shape	Tee
Body Shape:	Forged
Brand	Parker
Configuration Sub-Type:	Male Run Tee
Connection Type	Flared x MNPT x Flared
Country of Origin (subj.	United States
End Connection Type	Flared, Threaded
Fitting Material	Brass
Fitting Pipe Size	3/8 in
Fitting Shape	Tee
Fitting Side A Connecti.	Flared
Fitting Side A Tube Out.	1/2 in
Fitting Side B Connecti.	MNPT
Fitting Side B Pipe Size	3/8 in
Fitting Side C Connecti.	Flared
Fitting Side C Tube Out.	1/2 in
Fitting Thread Size	3/4-16
Flare Angle	45 Degrees
Flare Thread Size	3/4-16
Flare Type	45 Degrees
For Tube OD	1/2 in x 1/2 in
For Tube Outside Diamet.	1/2 in
Hex Size	297/500 in
International Shipping	No
Item	Male Run Tee
Max. Pressure	450 to 2800 psi
Maximum Operating Press.	2,800 psi
Maximum Operating Tempe.	250 Degrees F
Minimum Operating Tempe.	65 Degrees F
Mpn	151F-8-6
O-Ring Material	Fluorocarbon
Outer Diameter 1:	1/2 Inch
Outer Diameter 2 Inch/m.	Inch
Overall Length	2 11/32 in
Parker Group:	Fluid Connector
Pipe Fitting Connection.	Flare x MNPT
Pipe Size	3/8 in
Pipe Size (Fittings)	3/8"
Pipe Size - Pipe Fitting	3/8 in
Pressure Rating:	750 PSI
SAE Compliance:	J512 and J513
SKU	ZO-G0274802
Specific Fitting Shape	Adapter Tee
Specific Pipe Fitting S.	Run Tee
Standards	SAE J512, SAE J513
Temp. Range	-65 Degrees To 250 Deg.
Thread 1 Type:	UN/UNF
Thread 1:	3/4-16 UN/UNF
Thread 3 Type:	NPT
Thread 3:	3/8 NPT
Tube Fitting Material	Brass
Tube Size	1/2 in
UOM:	EACH

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	bscsource.com	151F86	18.69	1	10		Parker		18.69 @ 10
	MRO Stop	271011932	19.66	1	10		Parker		19.66 @ 10
	Wilson	151F-8-6	23.9	1	10		Parker - Fluid System Connectors Division		23.9 @ 10
	Guardian	62251806	24.03	1	10		Parker		24.03 @ 10
	Airline Hydraulics	PARKER 151F-8-6	25.7	1	10		Parker		25.7 @ 10
	National Supply Network	62251806	30.829	1	10		Parker		30.829 @ 10
	Radwell	151F-8-6	38.0	10	10		PARKER HANNIFIN		38.0 @ 10
	Zoro	G0274802	121.19	1	12		Parker	1.97	121.19 @ 10
	sustainablesupply.com	C1939587	131.65	1	10		Parker	1.97	131.65 @ 10
	simsupply.com	ZO-G0274802	144.91	1	10		Parker		144.91 @ 10
	Grainger	1VEB9	152.0	1	10	0	PARKER		152.0 @ 10
	Raptor Supplies	AB3UDH	271.895949	1	10		PARKER		271.895949 @ 10
