- mpnXS12CA1JCR
- brandname: US Motors (Nidec)
- manufacturername: US Motors (Nidec)

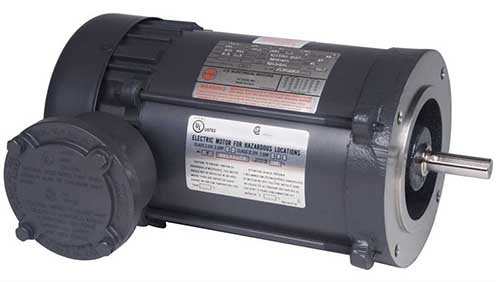

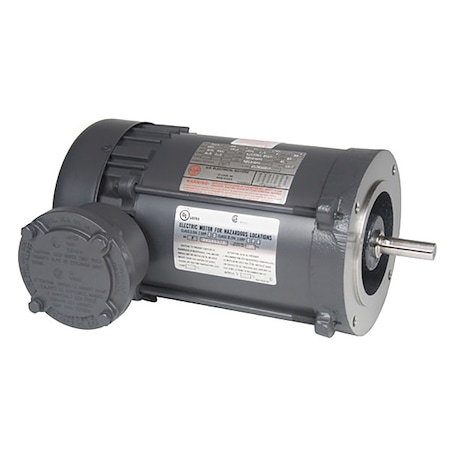

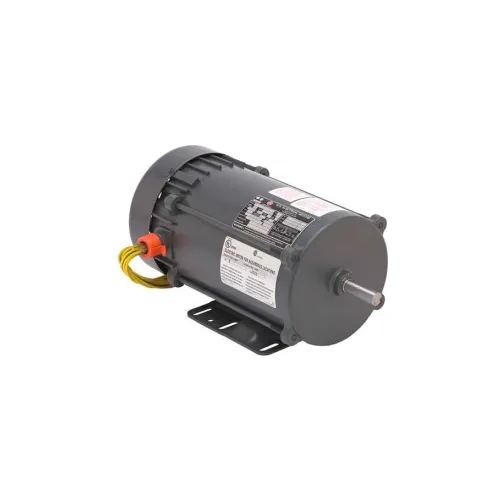

US Motors (Nidec) XS12CA1JCR - Explosion Proof/Hazardous Location Motor - 1 ph, 1/2 hp, 3600 rpm, 115/208-230 V, 56C Frame, TEFC Enclosure, 60 Hz
- Binding: Misc.
- Manufacturer: US Motors (Nidec)
- Label: US Motors (Nidec)
Attributes
| Key | Value |
|---|
| Class/Group | Class I and II Group C,. |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | TEFC, Totally Enclosed . |
| Estimated Weight | 31.90 |
| Explosion Proof Rating | Class I (Group C,D) Cla. |
| Family Series | US Motors Motors |
| FL Amps | 8.8/4.1-4.4 |
| Frame | 56C |
| Frame Size | 5 |
| Frequency | 60 Hz |
| Full Load Amps | 8.8/4.1-4.4 |
| Gross Weight | 29 lbs |
| Hazardous Location Class | 1 C,D / 2 E,F,G |
| Hazardous Location Divi. | Division 1 |
| Hertz | 60 |
| Horsepower | 1/2 hp, 1/2 |
| HP | 0.5, 1/2 |
| Hz | 60 |
| Ins. Class | B |
| Item | Motor |
| Item Number | XS12CA1JCR |
| Kilowatts | 0.4 kW |
| Length Less Shaft | 11 21/100 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Part Number | XS12CA1JCR |
| Manufacturers Warranty . | 12 mo |
| Max. Ambient Temp. | 104 Degrees F |
| Model Number | CH63AAE1004015B |
| Motor Application | Hazardous Location |
| Motor Bearings | Sealed |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | C-Face Footless |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Air Compressors; Pumps;. |
| Motor Thermal Protection | Auto |
| Motor Type | Single Phase |
| Mounting | Footless |
| Mounting Type | C-Face |
| Name Plate RPMs | 3450 |
| Nameplate RPM | 3,450 |
| NEMA Design | None |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 68.8 % |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 13 27/100 in |
| Overload Protection | Automatic |
| Part Number | XS12CA1JCR |
| Phase | 1, Single |
| Product Type | Explosion Proof |
| RPM | 3,450 RPM |
| RPM Range | 3,001-3,600 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 87/100 in |
| Speed (RPM) | 3450 |
| Standards | CSA Certified, UL Listed |
| Temp. Code | T3C |
| Thermal Protection Rati. | Auto |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 115/208-230, 115/208-23. |
| Voltage (AC) | 115 VAC, 208-230 VAC |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Weight | 29 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB467334 | 577.0 | 1 | In Stock | 17 | US Motors | | 577.0 @ 1 |
 | Zoro | G1930806 | 577.0 | 1 | In Stock | | U.S. Motors | 32.0 | 577.0 @ 1 |
 | National Supply Network | B467334 | 644.69 | 1 | In Stock | | US MOTORS | | 644.69 @ 1 |
 | motorsandcontrol.com | XS12CA1JCR | 660.04 | 1 | In Stock | | US Motors (Nidec) | 31.9 | 660.04 @ 1 |
 | Galco | XS12CA1JCR-USM | 675.77 | 1 | In Stock | | US Motors | 29.0 | 675.77 @ 1 |
 | Guardian | 00643353 | 676.38 | 1 | In Stock | | US Motors | | 676.38 @ 1 |
| motionindustries.com | 04385623 | 864.92 | 1 | In Stock | | US Motors (Nidec) | | 864.92 @ 1 |
 | bscsource.com | XS12CA1JCR | 890.49 | 1 | In Stock | | US Motors | | 890.49 @ 1 |
