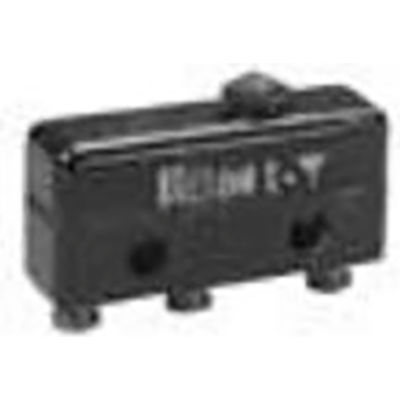

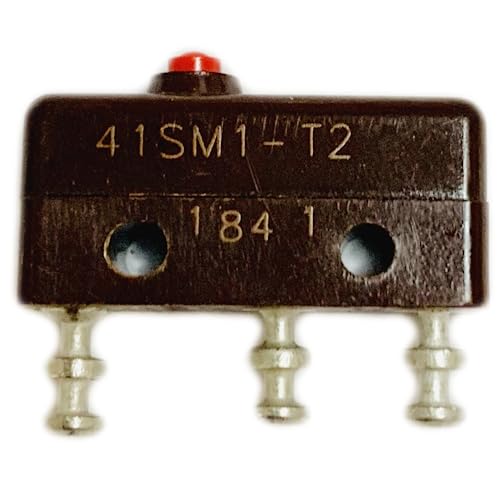

Honeywell 41SM1-T2

B00DED68ZQ

Basic / Snap Action Switches 11A 250 VAC SPDT Solder

Basic / Snap Action Switches 11A 250 VAC SPDT Solderzoom

Attributes

Key Value
Actuator TypeRound (Pin Plunger), Pl.
Base Product Number41SM1
Body StyleSubminiature
BRANDHoneywell
Casing MaterialGeneral Purpose Phenolic
CategorySwitches
CircuitSPDT
Contact FormSPDT
Current Rating11 A
Current Rating (Amps)11A (AC), 5A (DC)
Differential Travel0.004" (0.1mm)
Electrical Life-
Features-
Ingress Protection-
MANUFACTURERS PART NUMB.41SM1-T2
Mechanical Life80,000 Cycles
MfrHoneywell Sensing and P.
Mounting Hole Size0.088 in
Mounting TypeChassis Mount
Number of Poles1
Number of Positions2
Operating Force141gf, 3 to 5 Oz (Max.)
Operating Position0.330" (8.4mm)
Operating Temperature-55?C ~ 125?C
Overtravel0.005" (0.13mm)
PackageTray
Pretravel0.030" (0.8mm)
Product StatusActive
Release Force28gf
SeriesSM Series, SM
Special FeaturesHigh Temperature
StandardsUL Listed, CE Marked, C.
Switch FunctionOn-Mom
Temperature Rating-55 to +125 C
TerminationSolder Lugs
Termination StyleSolder Turret
TypeBasic
TYPESnap Action Switches
Voltage Rating250 V
Voltage Rating - AC250 V
Voltage Rating - DC30 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Arrow41SM1-T25.3137Honeywell5.3 @ 1
Onlinecomponents.com41SM1-T26.391192HONEYWELL6.39 @ 1
thumbzoomsustainablesupply.comC117467910.51In StockHoneywell0.0110.5 @ 1
thumbzoomCarlton Bates Company7845497035510.971In StockHONEYWELL10.97 @ 1
thumbzoomNewark23F220311.66200In StockHONEYWELL11.66 @ 200
Mouser785-41SM1-T211.9162Honeywell11.9 @ 1
thumbzoomGlobal IndustrialWBB286457612.55In StockHoneywell12.5 @ 5
AmazonTPB00DED68ZQ13.011In Stock2Honeywell13.01 @ 1
thumbzoomRadwell41SM1-T214.0147HONEYWELL MICROSWITCH14.0 @ 1
Digi-Key124846614.071176Honeywell Sensing and Productivity Solutions14.07 @ 1
us.rs-online.com7011915519.041186Honeywell19.04 @ 1
thumbzoomkempstoncontrols.co.uk41SM1-T22972.1511In StockHoneywell2972.151 @ 1
