Marathon Electric 9036

B019KNCD1G

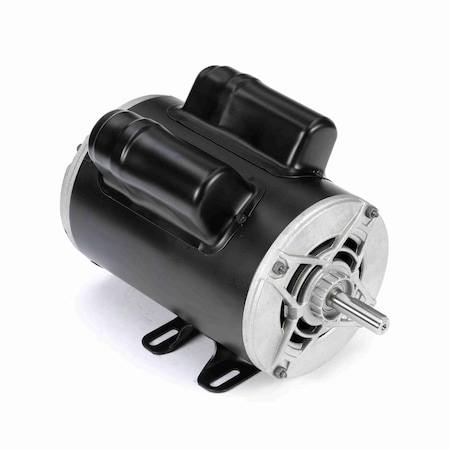

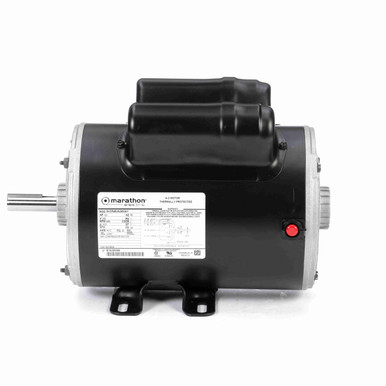

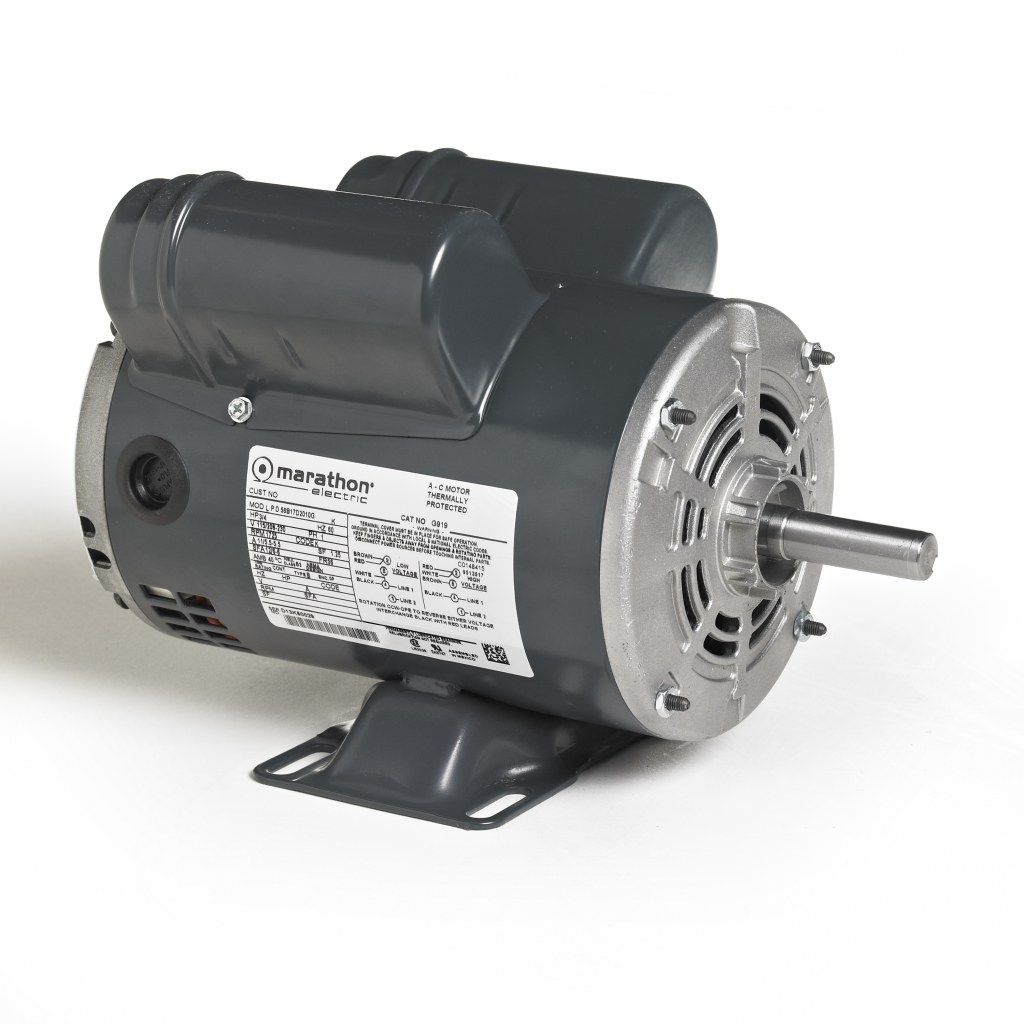

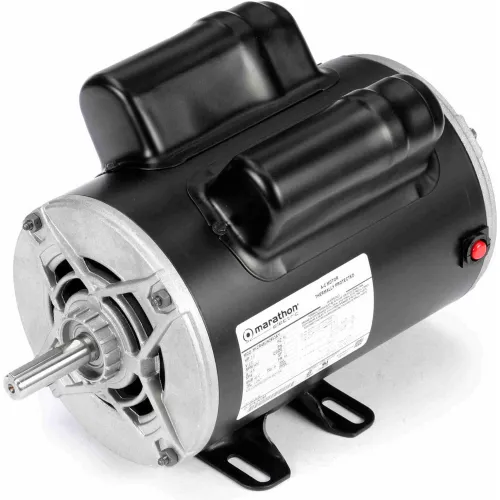

Marathon 9036 56H Frame Open Drip Proof 5KCR48UN2653Y Air Compressor Motor, 3 hp, 3600 rpm, 230 VAC, 1 Phase, 1 Speed, Ball Bearing, Capacitor Start/Capacitor Run, Rigid Base

Marathon 9036 56H Frame Open Drip Proof 5KCR48UN2653Y Air Compressor Motor, 3 hp, 3600 rpm, 230 VAC, 1 Phase, 1 Speed, Ball Bearing, Capacitor Start/Capacitor Run, Rigid Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.5KCR48UN2653Y
Amps14
BrandMarathon
C-Dimension12.64 (in.)
Catalog Number9036
CEN
CSAY
DE Bearing TypeBall
DEM Reference9036
DutyContinuous
Duty CycleContinuous
Electrical TypeCapacitor Start Capacit.
EnclosureODP
Enclosure TypeDrip Proof
Family SeriesMarathon Electric Misce.
Frame56
Frame MaterialRolled Steel
Frame Type56
Frequency60
Full Load Amps14.0
Gross Weight0 lbs
HP3, 3.0
Hz60
IncludesCapacitor
Ins. ClassB
Insulation ClassB
IP Code-
ItemAir Compressor Motor
Item Number9036
KVA CodeJ
Length Less Shaft10 3/4 in
ManufacturerMarathon Electric
Manufacturer Part Number5KCR48UN2653Y
Max Ambient40?C
Max. Ambient Temp.40 Degrees C
Motor ApplicationAir Compressor
Motor BearingsBall
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor OrientationANY
Motor Service Factor1
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionManual
Mounting TypeRigid Base
Nameplate RPM3,450
Net Weight40 lbs
No. of Speeds1
ODE Bearing TypeBall
Overall Length12 5/8 in
Phase1, Single
Product CategoryNEMA Definite Purpose A.
RotationClockwise/Counterclockw.
RPM3400 - 3600
RPM (Nameplate)3450
RPM (Number of Poles)2 (1801 RPM to 3600 RPM)
Service Factor1
Shaft Dia.5/8 in
Shaft Diameter5/8 (in.)
Shaft Extension1.88 (in.)
Shaft Length1 7/8 in
Shaft Type-
Speeds1
StandardsUL Recognized (E14133),.
Type of Overload Protec.MAN
ULRecognized
Voltage230V AC, 230
Volts230
Weight36 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com9036265.01In StockMARATHON265.0 @ 1
grainger.caAOS9036288.5078851In StockMARATHON32.8288.507885 @ 1
thumbzoomcshincorporated.comM9036363.711In StockMarathon40.0363.71 @ 1
thumbzoomktool.net9036367.791In StockMarathon Motors367.79 @ 1
thumbzoomapexindustrialautomation.com9036379.5418Marathon379.54 @ 1
thumbzoomGalco9036-MARA389.531In StockMarathon Electric40.0389.53 @ 1
thumbzoomasapelectricmotors.comMAR9036390.521In StockMARATHON390.52 @ 1
thumbzoomMRO Supply2267883391.591In StockMarathon Electric391.59 @ 1
us.rs-online.com73431509438.771In StockMarathon Motors438.77 @ 1
thumbzoomZoroG906604583446.9911Marathon446.99 @ 1
thumbzoommidwestapplianceparts.com9036-MT-P462.51In StockMarathon462.5 @ 1
thumbzoomNational Supply NetworkB2776751469.71In StockMARATHON MOTORS469.7 @ 1
thumbzoomGlobal IndustrialWBB2776751489.951In StockMarathon489.95 @ 1
thumbzoomDreisilkerMA-RBC-9036506.781In StockMarathon506.78 @ 1
thumbzoomindustrialstores.com9036510.761In Stock10Marathon Motors510.76 @ 1
kirbyrisk.com2348400545.481In StockMarathon545.48 @ 1
