Marathon Industries 5KC49MN2043Y

mpn5KC49MN2043Y
brandname: Marathon Electric
manufacturername: Marathon Electric

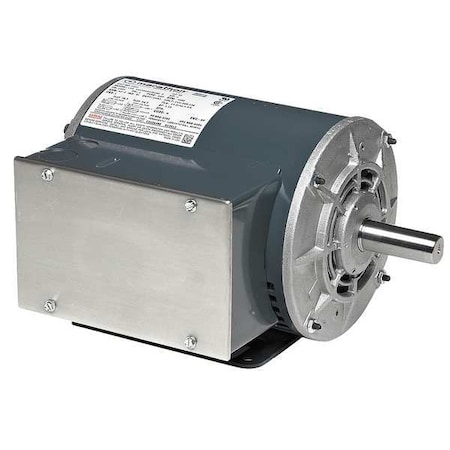

Air Compr Mtr, 1/2 HP, 3450 RPM, 115V, 56 FR

Air Compr Mtr, 1/2 HP, 3450 RPM, 115V, 56 FR

zoom

Brand: Marathon Industries
PartNumber: 5KC49MN2043Y
PackageQuantity: 1
Manufacturer: MARATHON MOTORS
Label: MARATHON MOTORS

Attributes

Key	Value
Capacitor Included	Yes
Classification	General Purpose
Composition	Rolled Steel
Country of Origin (subj.	Mexico
Duty	Continuous
Efficiency %	59.5 %
Enclosure	ODP, Open
Family Series	Marathon Electric Motors
Frame	56
Frame Remarks	WB
Full Load Amps	11.5
Gross Weight	0 lbs
Horsepower	1/2 hp
HP	1/2, .50
Hz	60
Ins. Class	B
Item	Commercial Duty Air Com.
Item Condition	Factory New
Item Number	5KC49MN2043Y
Kilowatts	0.37 kW
Manufacturer	Marathon Electric
Manufacturer Part Number	9031
Max. Ambient Temp.	40 Degrees C
Motor Application	Air Compressor
Motor Bearings	Ball
Motor Design	Capacitor-Start
Motor Enclosure Design	Open Dripproof
Motor Mounting Type	Rigid Base
Motor Service Factor	1.0
Motor Shaft Design	Keyed
Motor Shaft Rotation	CCWSE
Motor Thermal Protection	Manual
Mounting Type	Footed
Nameplate RPM	3450
NEMA Frame	56
Net Weight	26 lbs
Nominal Voltage	120 VAC
Overall Length	11 1/8 in
Phase	1
RPM	3,450 RPM, 3600
RPM Range	3001-3600
Service Factor	1
Shaft Dia.	5/8 in
Shaft Length	1 7/8 in
Standards	UL Recognized, CSA Cert.
Voltage	115
Voltage (AC)	110-120 VAC
Voltage Compatibility	115, 115/208-230, 115/2.
Volts	115

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G2138796	159.47	1	In Stock	26	Marathon Motors		159.47 @ 1
	Dealers Electric	5KC49MN2043Y	253.44	1	In Stock		Marathon Electric	26.0	253.44 @ 1
	Galco	5KC49MN2043Y-MARA	288.0	1	In Stock		Marathon Electric	26.0	288.0 @ 1
	motionindustries.com	00551270	337.39	1	In Stock		Marathon Electric		337.39 @ 1
