Parker 1120-4A-ORG-1000

mpn1120-4A-ORG-1000
brandname: PARKER
manufacturername: PARKER

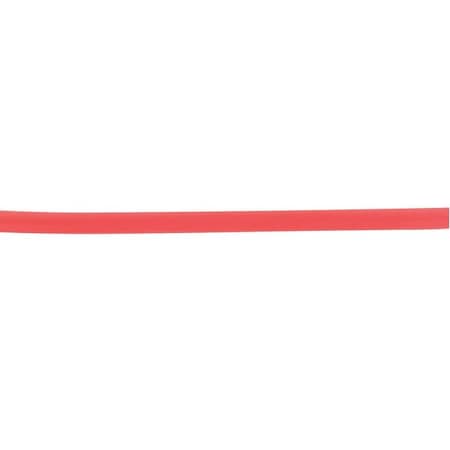

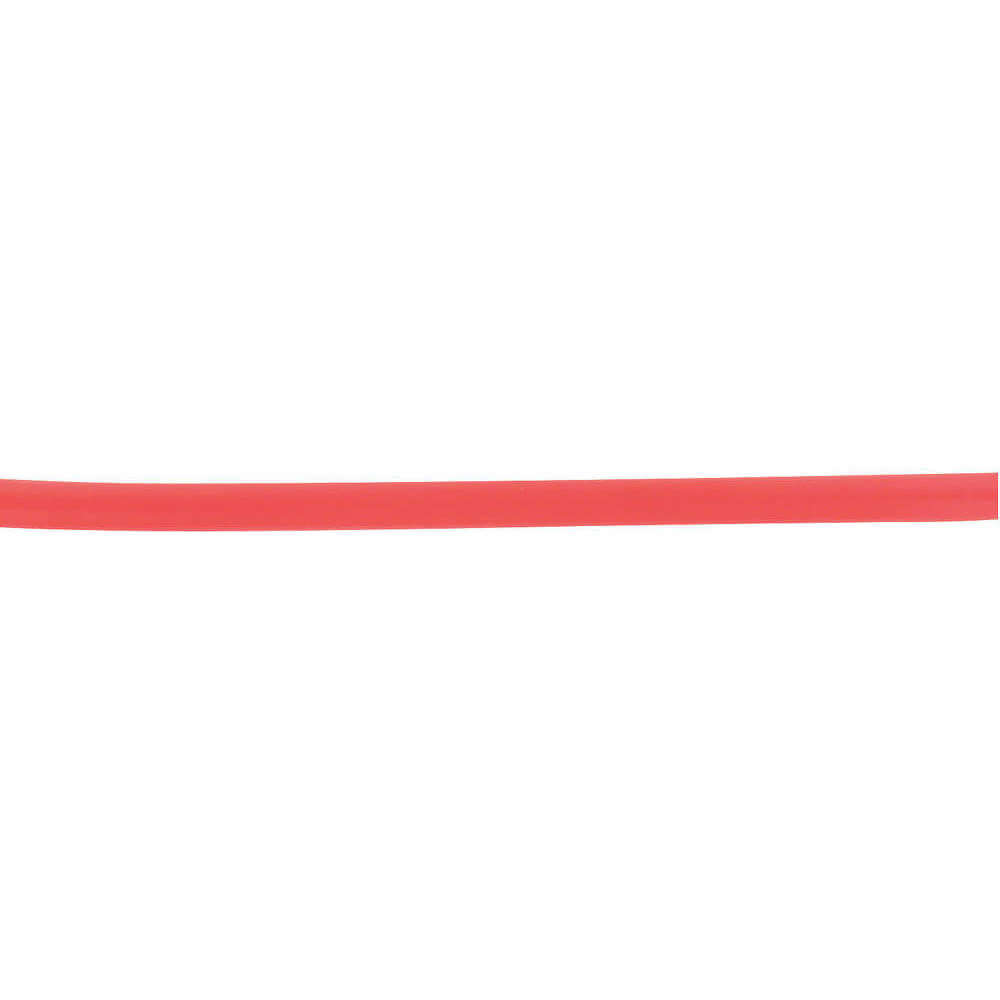

Parker Air Brake Tubing, 1/4 in. OD, Orgn

Brand: Parker
PartNumber: 1120-4A-ORG-1000
Model: 1120-4A-ORG-1000
Color: Orange
PackageQuantity: 1
Binding: Automotive
Manufacturer: PARKER
Label: PARKER

Attributes

Key	Value
Air Brake Type	Type A
Application	Air Brake Harness, Form.
Bend Radius	1 in
Coiled Air Tube Applica.	Not Applicable
Color	Orange
Color:	Orange
Country of Origin (subj.	United States
Distinct Properties:	Heat And Light Stabiliz.
Finish	Not Applicable
Fitting Side A Connecti.	Not Applicable
Fitting Side A Gender	Not Applicable
Fitting Side A Material	Not Applicable
Fitting Side A Size	Not Applicable
Fitting Side A Thread S.	Not Applicable
Fitting Side B Size	Not Applicable
Fitting Side B Connecti.	Not Applicable
Fitting Side B Gender	Not Applicable
Fitting Side B Material	Not Applicable
Fitting Side B Thread S.	Not Applicable
Hex Size	Not Applicable
Inch/Metric:	Inch
Includes Fittings	No
Inner Diameter Inch/mm:	Inch
Item	Tubing
Jacket Color	No Jacket
Jacket Material	No Jacket
Length	1,000 ft
Length (Straight Wirewa.	1,000 ft
Material	Nylon
Max Pressure:	150 PSI (10 bar)
Max. Working Pressure	150 psi
Maximum Operating Tempe.	200 Degrees F
Maximum Working Pressure	150 psi
Minimum Operating Tempe.	-40 Degrees F
Operating Pressure Rang.	::1.03
Outer Diameter 1:	1/4 Inch
Outer Diameter Inch/mm:	Inch
Outside Dia.	1/4 in
Outside Diameter	1/4 in
Parker Group:	Fluid Connector
Product Type	Air Brake Tubing
Reinforcement	Not Reinforced
Resistance Properties	Abrasion Resistant, Che.
Specific Fitting Side A.	Not Applicable
Specific Fitting Side B.	Not Applicable
Standards	SAE J844, D.O.T. FMVSS1.
Temp. Range	-40 Degrees to 200 Deg.
Temperature Range	-40 Degrees to 200 Deg.
Trade Name:	Parflex
Tube Material	Nylon
Tube Size	0.25 in
Tubing Material	Nylon
Tubing Reinforcement	Not Reinforced
Type	Type A - Nonreinforced
Wall Thickness	0.04 in
Wall Thickness:	0.04 Inch
Weight per Foot	0.012 lb/ft

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Wilson	1120-4A-ORG-1000	0.86	1	116		Parker - Parflex Division		0.86 @ 1
Airline Hydraulics	PARKER 1120-4A-ORG-1000	0.94	1	106		Parker		0.94 @ 1
sustainablesupply.com	C1264474	547.58	1	116		Parker	14.5	547.58 @ 1
Zoro	G3546024	611.0	1	2		Parker	14.85	611.0 @ 1
Misumi USA	1120-4A-ORG-1000	882.7	1	116	42	Parker Hannifin		882.7 @ 1
Raptor Supplies	AF2VFJ	960.563448	1	106		PARKER		960.563448 @ 1
