Century 9645

mpn9645
brandname: CENTURY
manufacturername: CENTURY

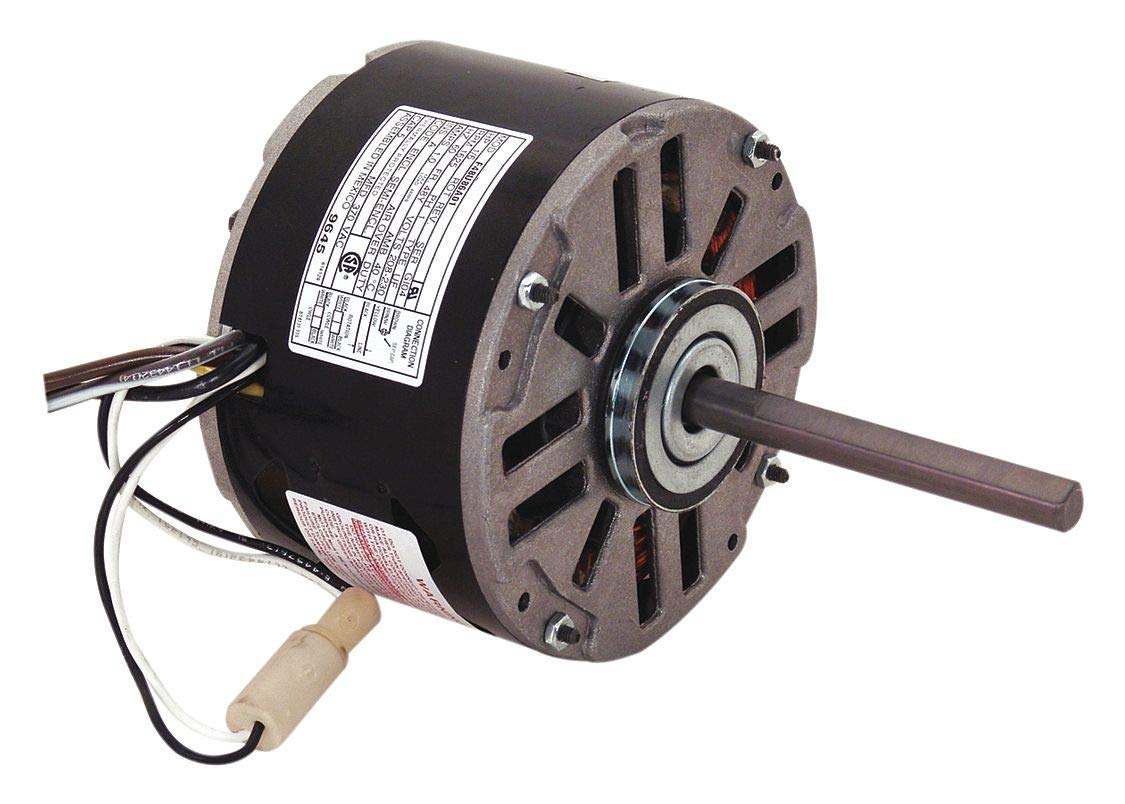

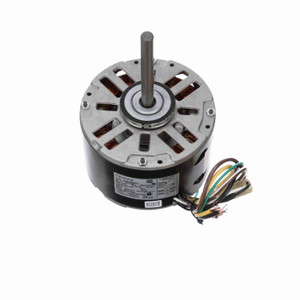

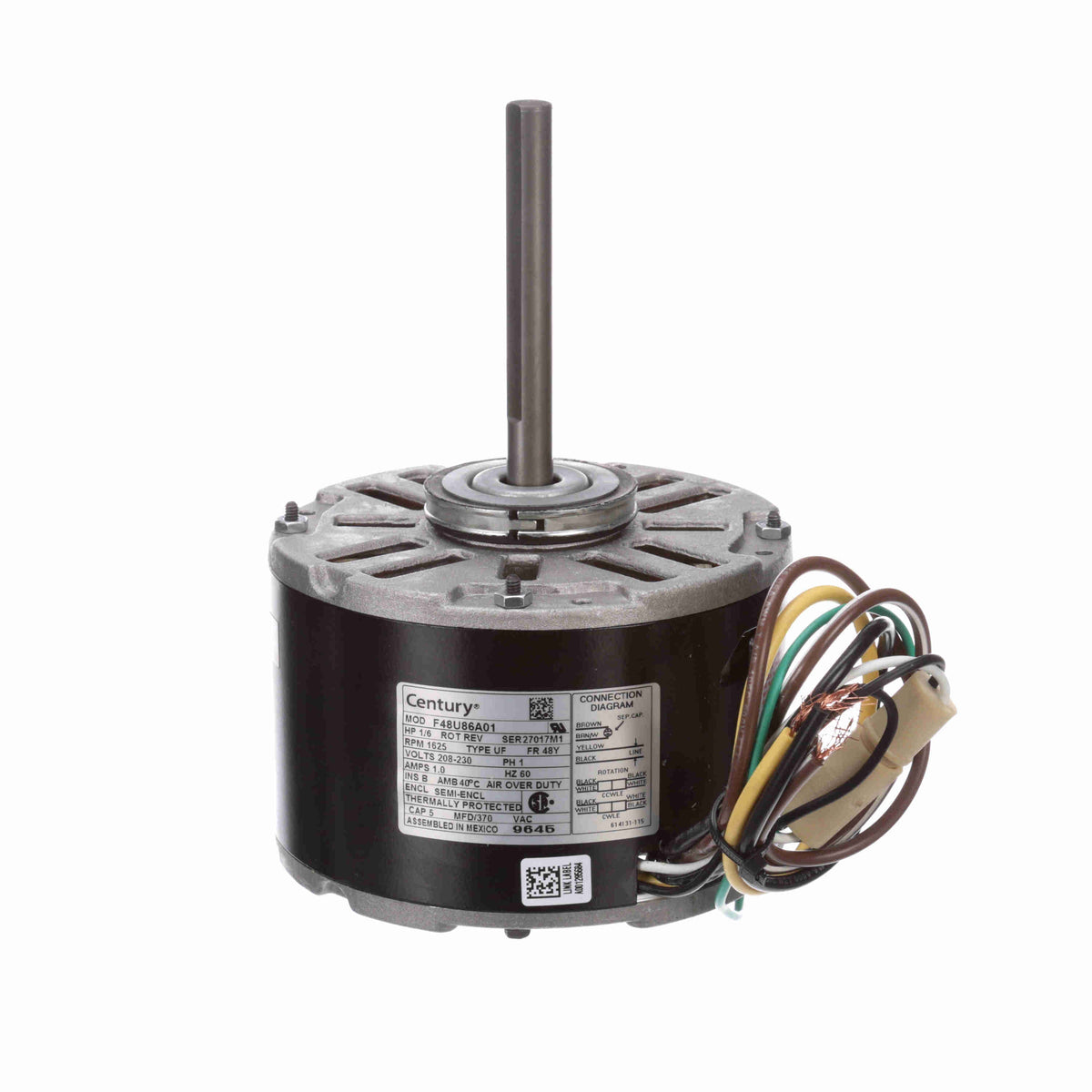

Century 9645 5.6-Inch Frame Diameter 1/6 HP 1625 RPM 208-230-Volt 1-Amp Sleeve Bearing Blower Motor

Brand: Century
PartNumber: 9645
Model: 9645
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Century
Label: Century

Attributes

Key	Value
9645 is listed in Centu.	A.O. Smith F48U86A01, G.
Amps	1, 1.0
Application	Direct Drive Fan and Bl.
Batteries Required?	No
Bearings	Sleeve
Best Sellers Rank	#2,464,185 in Tools & H.
Body Dia.	5-5/8"
Brand	Century
C-Dimension	8.61 (in.)
Capacitor	5MFD @ 370VAC Required
Capacitor Required	2MDV4
Catalog Number	9645
CE	N
CSA	Y
Date First Available	April 3, 2014
DE Bearing Type	Sleeve
DEM Reference	NOHP
Duty	Continuous Air Over, Ai.
Duty Cycle	Continuous
Electrical Type	Permanent Split Capacit.
Enclosure Type	OAO (Open Air Over), Se.
Frame	48Y
Frame Material	Rolled Steel
Frame Type	48Y
Frequency	60
Full Load Amps	1.0
HP	1/6
Hz	60
Includes	Split Ring to Increase .
Ins. Class	B
Insulation Class	B
IP Code	-
Item	Direct Drive Blower Mot.
Item Dimensions LxWxH	9.75 x 6.25 x 6.25 inch.
Item model number	9645
Item Package Quantity	1
Item Weight	10.85 pounds
KVA Code	-
Length Less Shaft	4-5/8"
Manufacturer	Century
Max Ambient	40?C
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Sleeve
Motor Design	Permanent Split Capacit.
Motor Diameter	5-5/8"
Motor Enclosure Design	Open Air-Over
Motor Mounting Position	All Angle
Motor Mounting Type	Ring
Motor Orientation	Horizontal
Motor Service Factor	1.00
Motor Shaft Design	Flat
Motor Shaft Rotation	CW/CCW
Motor Sub Application	Direct Drive Fan/Blower
Motor Thermal Protection	Auto
Mounting	Band/Ring
Mounting Type	Resilient Rings
Nameplate RPM	1,625
No. of Speeds	1
Number of Speeds	1
ODE Bearing Type	Sleeve
Part Number	9645
Phase	1
Product Category	HVAC/R Motors > Fan an.
Product Dimensions	9.75 x 6.25 x 6.25 inch.
Product Type	PSC (Permanent Split Ca.
Product with faster shi.	true
Resilient Ring Dia.	2-1/4"
Ring to Ring Center	4-3/16"
Rotation	Reversible
RPM	1625
RPM (Nameplate)	1625
RPM (Number of Poles)	4 (1201 RPM to 1800 RPM)
RPM Range	1,400 - 1,800
Service Factor	1
Service Factor (SF)	1.00
Shaft Dia.	1/2"
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	4.5 (in.)
Shaft Length	4", 4-1/2"
Shaft Type	Flat
Ship Weight	10 lbs.
Shipping	undefined (Fixed Shippi.
Speeds	1
Standards	UL Recognized, CSA Cert.
Thermal Protection	Automatic
Type of Overload Protec.	Automatic
UL	Recognized
Voltage	208-230
Voltage Compatibility	115/208-230, 208-230, 2.
Volts	208-230

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
grainger.ca	AOS9645	117.06875552	1	In Stock		CENTURY	9.1	117.06875552 @ 1
AmazonSC	B0042G5EDQ	167.8	1	In Stock		Century		167.8 @ 1
ktool.net	9645	195.13	1	In Stock		Century		195.13 @ 1
sustainablesupply.com	C1561158	223.34	1	In Stock		Century	9.1	223.34 @ 1
emotorpro.com	9645	238.99	1	In Stock		Century	10.0	238.99 @ 1
midwestapplianceparts.com	9645-AO-P	241.37	1	In Stock		AO Smith		241.37 @ 1
homeessentialsdirect.com	9645	251.49	1	In Stock		Century	10.85	251.49 @ 1
Dreisilker	CE-RBC-9645	252.76	1	In Stock		Century		252.76 @ 1
Voomi Supply	9645	253.86	1	In Stock		Century Motors		253.86 @ 1
hvacdiscountstore.com	CEN--9645	261.33	1	In Stock		CENTURY MOTORS		261.33 @ 1
industrialstores.com	9645	264.26	1	In Stock	19	Century Motors by Regal Beloit		264.26 @ 1
