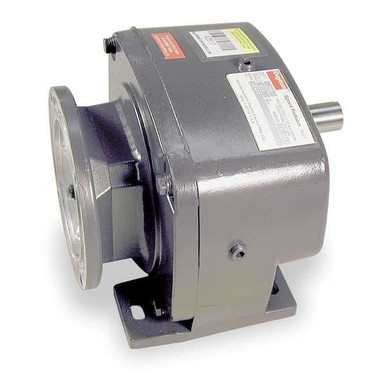

Speed Reducer, C-Face, 56C, 12.5:1

Speed Reducer, C-Face, 56C, 12.5:1zoom

Attributes

Key Value
BearingsBall
Bore Dia.5/8"
BrandDayton
Current Stock22
Dimension U1 in
DutyStandard
FinishPowdered Epoxy Paint
GearingHelical and Spur
Input RPM1725, 1750 rpm
International ShippingNo
ItemSpeed Reducer
Lead TimeExpected to ship in 1-2.
LubricationKluber Food Grade
Max. Input HP1
Max. Torque (In.-Lbs.)427
Mount Hole Center-to-Ce.4.5 in
Mount Hole Center-to-Ce.5.68 in
Mpn4Z719
NEMA/IEC Frame56C
Nominal Output RPM140 RPM, 140
Nominal Ratio12.5:1
Number of Stages1
Oil SealDouble Lip
Output Shaft Dia.1 in
Output Shaft Dia. (In.)1
Output Shaft Diameter1 in
Output Shaft Height4 7/8 in
Output Shaft Height (In.4.88
Output Torque @ 1 HP (I.427
Output Torque @ 1/2 HP .214
Output Torque @ 1/3 HP143 in-lb
Output Torque @ 1/3 HP .143
Output Torque @ 1/4 HP .107
Output Torque @ 1/40 HP3600 in.-lb.
Output Torque @ 3/4 HP320 in-lb
Output Torque @ 3/4 HP .320
Overall Height7.47 in
Overall Length5.69 in
Overall Width8.44 in
Overhung Load709 lb
Overhung Load (Lb.)709
PinionHardened Steel
Prop 65WARNING: Cancer and Rep.
RotationCW/CCW, Forward/Reverse
Shaft OrientationParallel
Ship Weight25 lbs.
Single/Double Output/Un.Single Output
SKUZO-G2313744
Speed Reducer TypeC-Face
StandardsAGMA
SubCategoryPower Transmission
TypeC-Face
UPC190735340929

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2313744739.99149Dayton25.0739.99 @ 1
thumbzoomsustainablesupply.comC1689962810.451In StockDayton25.0810.45 @ 1
AmazonTPB000LDE8J0845.681In Stock5Dayton845.68 @ 1
thumbzoomsimsupply.comZO-G2313744892.34122Dayton892.34 @ 1
emotorpro.com4Z7191173.01In StockDayton25.01173.0 @ 1
thumbzoomRaptor SuppliesAE2RAG1215.35276851In StockDAYTON1215.3527685 @ 1
