Molex / Waldom 90136-1304

mpn90136-1304
brandname: Molex
manufacturername: Molex

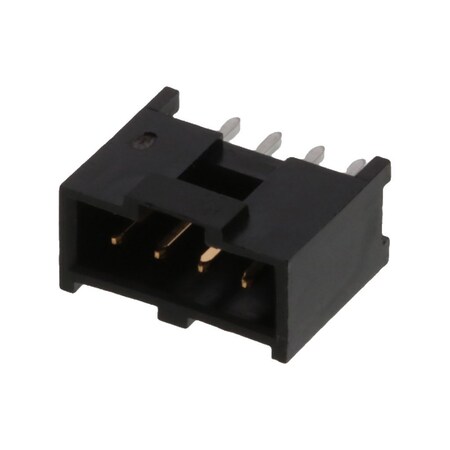

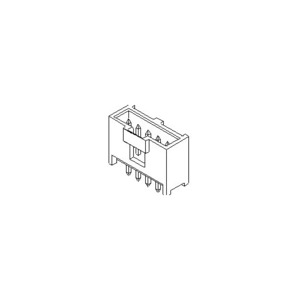

Molex / Waldom 90136-1304 Connector Headers and PCB Receptacles

Brand: Molex / Waldom
PartNumber: 90136-1304
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	901361304
Angle	Vertical
Applications	Automotive, General Pur.
Base Product Number	090136
Category	Connectors, Interconnec.
Circuits (Loaded)	4
Circuits (maximum)	4
Color	Black
Color - Resin	Black
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
CSA	LR19980
Current - Maximum per C.	3.0A
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 4POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM20591-ND
Family Name	C-Grid III
Fastening Type	Latch Holder
Features	-
Flammability	94V-0
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.429" (10.90mm)
Insulation Material	Polyester, Glass Filled
Lock to Mating Part	Yes
Manufacturer	Molex
Manufacturer Product Nu.	0901361304
Manufacturer Standard L.	13 Weeks
Mated Stacking Heights	-
Material - Metal	Brass
Material - Plating Mati.	Gold
Material - Plating Term.	Tin
Material - Resin	Polyester
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	4
Number of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	0.510" (12.95mm)
Package	Tray
Package Quantity	1
PC Tail Length	2.90mm
PCB Thickness - Recomme.	1.60mm
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Pitch - Mating Interface	2.54mm
Pitch - Termination Int.	2.54mm
Plating Material	Gold
Plating min - Mating	0.762?m
Plating min - Terminati.	3.048?m
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	-
Series	C-Grid III 90136, 90136.
Shrouded	Fully
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Temperature Range - Ope.	-55? to +125?C
Termination	Solder
Termination Interface: .	Through Hole
Type	Vertical Header
Voltage - Maximum	350V AC/DC
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Newark	60H4549	0.658	1	3037	MOLEX	0.658 @ 1
Onlinecomponents.com	90136-1304	0.85	1	626	MOLEX / WALDOM	0.85 @ 1
Waldom	MOLEX 90136-1304	0.9	60	95	MOLEX	0.9 @ 60
jensentools.com	10198323	1.11	1	95	Molex	1.11 @ 1
us.rs-online.com	70374026	1.36855	1	73	Molex Incorporated	1.36855 @ 1
Arrow	90136-1304	1.714	1	910	Molex	1.714 @ 1
Digi-Key	3303814	1.78	1	8766	Molex	1.78 @ 1
RS Delivers	670-5344P	2.214	1	140	Molex	2.214 @ 1
Zoro	G7768534	93.0	60	In Stock	Molex	93.0 @ 60
