Belden 9503 060100

B017T0V0M0

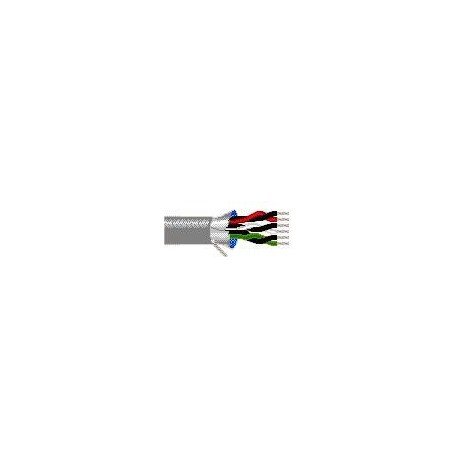

Belden 9503 Multi-Conductor Computer Cable for EIA RS-232 Applications

Belden 9503 Multi-Conductor Computer Cable for EIA RS-232 Applicationszoom

Attributes

Key Value
ApplicationFor computer and EIA RS.
Cable applicationindoor,
Cable external diameter5.89mm
Cable featurestwisted pair conductors
Cable TypeSTP, Non-Plenum
Conductor MaterialTinned Copper (TC), Tin.
Conductor Size24 AWG
Configuration3 Pair
Conform to the normUL 1685
Core diameter24AWG
Core markingcolours with colour rep.
Core structurestranded
Country of OriginUS - United States
CPR standardE
Earth corenone
ECCNEAR99
Groundtinned copper strand 24.
InformationThe UL Label and Mark o.
Insulation colourchrome
Insulation MaterialPolyvinyl Chloride, Pol.
Jacket Colorchrome
Jacket MaterialPolyvinyl Chloride (PVC)
Kind of coreCu,
Kind of materialno flame propagation
Length100 ft., 100 ft
ManufacturerBELDEN
No. of Conductors6
No. of pairs3
Number of Conductors6
Number of cores6
Operating temperature-30...80?C
Outer Diameter0.232 in.
Package contents30m
PackagingCoil
Product HeaderHigh-Temperature Contro.
Rated voltage300V
Series9503 Series
Shield MaterialAluminum/Polyester Tape
Shield structureAl-PET foil,
ShieldedAluminum/Polyester
ShieldingFoil
StandardsUL AWM Style 2464 ; NEC.
Stranding7x32
Temperature, Rating-30 to 80 C
Type of wiredata transmission
UNSPSC26121600
Wire insulation materialPVC
Wire Size24 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kirbyrisk.com18567522.20898100100Belden2.20898 @ 100
alldataresource.comB9503-1002.951100Belden2.95 @ 100
TME9503.0601003.495100BELDEN2.93 @ 120
us.rs-online.com70004890244.751100Belden244.75 @ 100
thumbzoomNewark87K7357266.01100BELDEN266.0 @ 100
Graybar900659592674.1008100100Belden2674.1008 @ 100
