A. O. Smith 9659

B00QW2J58I

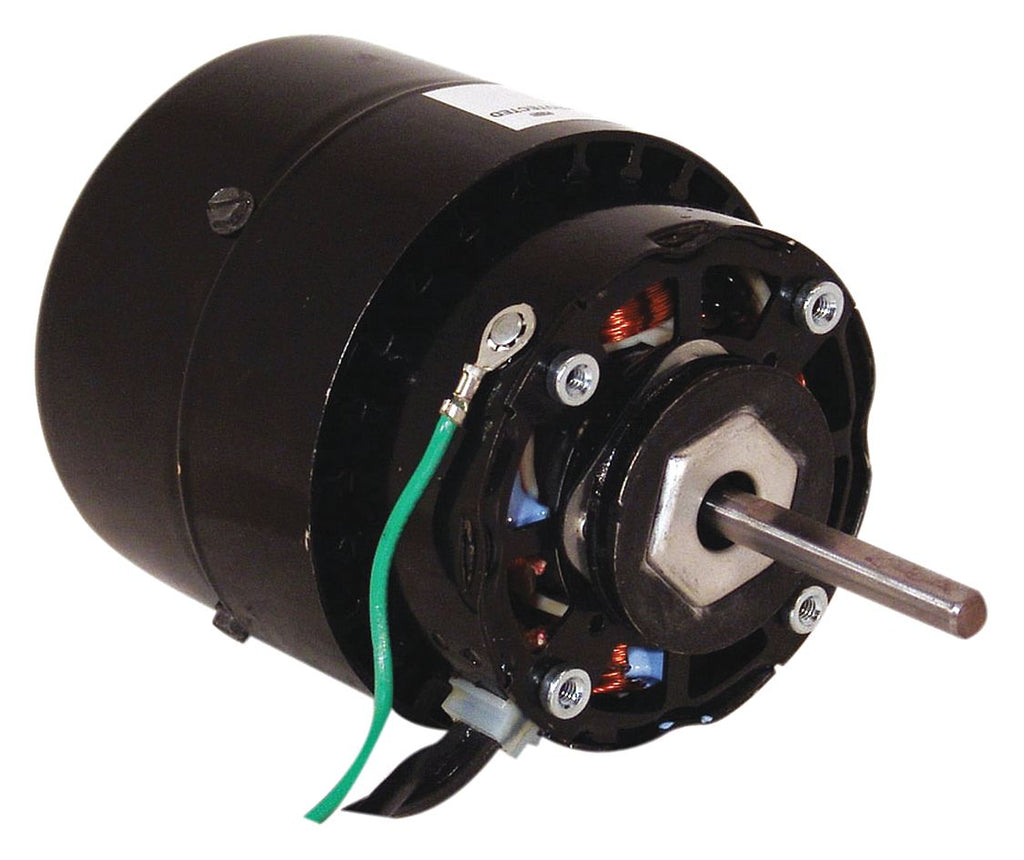

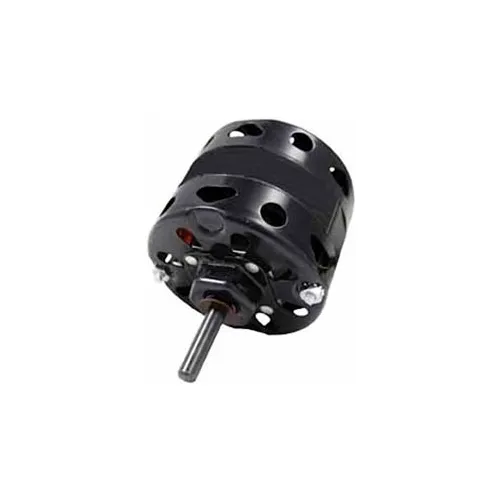

A.O. Smith Corporation 9659 1/40HP 208-230V 1550RPM Motor

A.O. Smith Corporation 9659 1/40HP 208-230V 1550RPM Motorzoom

Attributes

Key Value
Amps0.6
BearingsSleeve
Body Dia.4"
Country of Origin (subj.United States
Duty CycleContinuous
Enclosure TypeOFC (Open Fan Cooled)
Frame4.0, 3-3/8"
Full Load Amps0.60
HP1/40
Hz60
Ins. ClassB
Insulation ClassB
ItemUnit Bearing Motor
Length Less Shaft4-15/16"
Max. Ambient Temp.40 Degrees C, 40 Degree.
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Diameter3-3/8"
Motor Enclosure DesignOpen Air-Over
Motor Mounting PositionAll Angle
Motor Mounting TypeRing
Motor Service Factor1.00
Motor Shaft RotationCWSE
Motor Sub ApplicationRefrigerator/Freezer
Motor Thermal ProtectionAuto
MountingBand/Ring/Stud
Nameplate RPM1550, 1,550
Number of Speeds1
Output Watts18
Overall Length6-3/16"
Phase1
Product TypeShaded Pole
Resilient Ring Dia.1-3/4"
Ring Dia.1-3/4"
Ring to Ring Center4-1/2"
RotationCW Shaft End
RPM1550
RPM Range1,501 - 1,600, 1501-1600
Service Factor (SF)1.00
Shaft Dia.5/16"
Shaft Diameter5/16"
Shaft Length1-1/4"
Ship Weight8 lbs.
Thermal ProtectionAutomatic
Voltage208-230
Voltage Compatibility115/208-230, 208-230, 2.
Volts208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG317892692.951In Stock26Century92.95 @ 1
thumbzoomemotorpro.com9659112.291In StockCentury8.0112.29 @ 1
thumbzoompatrickssupply.com9659113.861In StockCENTURY113.86 @ 1
thumbzoomsustainablesupply.comC1529929118.441In StockCentury4.35118.44 @ 1
thumbzoomGlobal IndustrialWBB244471123.951In Stock17Century123.95 @ 1
thumbzoomindustrialstores.com9659132.51In Stock12Century Motors by Regal Beloit132.5 @ 1
thumbzoomNational Supply NetworkB244471132.941In StockAO SMITH132.94 @ 1
hvacdiscountstore.comCEN--9659138.771In StockCENTURY MOTORS138.77 @ 1
thumbzoomptacsolutions.com9659152.071In StockA.O. Smith152.07 @ 1
thumbzoommidwestapplianceparts.com9659-AO-P159.2211AO Smith159.22 @ 1
grainger.caAOS9659269.818804151In StockCENTURY4.35269.81880415 @ 1
