A.O. Smith Corporation 9712

mpn9712
brandname: CENTURY
manufacturername: CENTURY

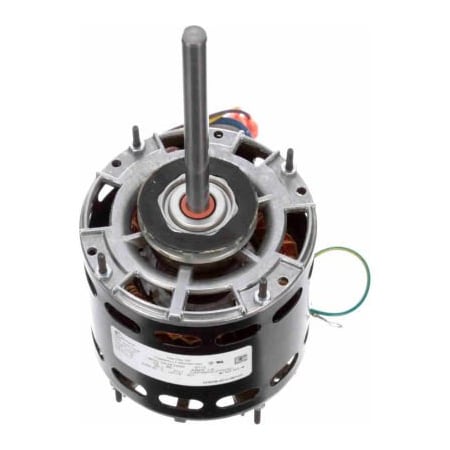

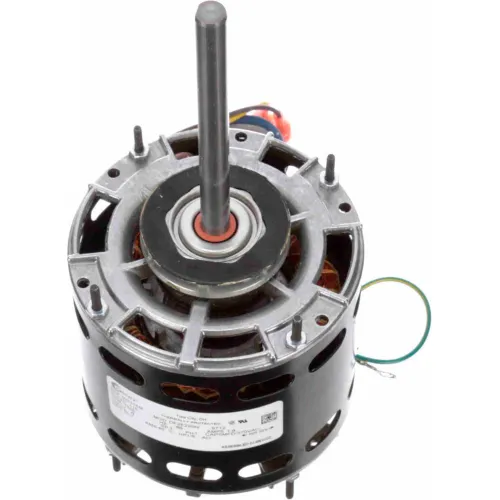

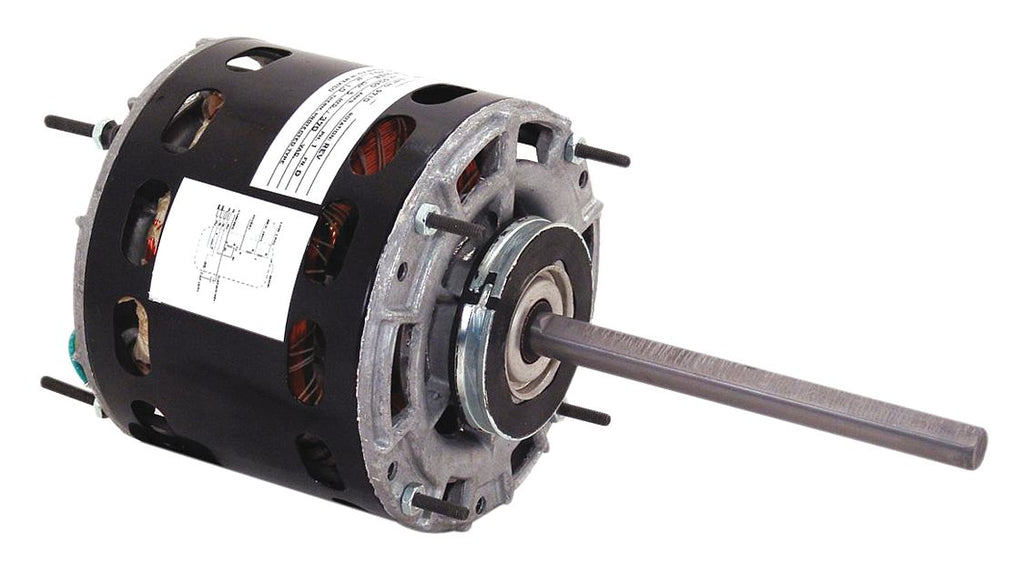

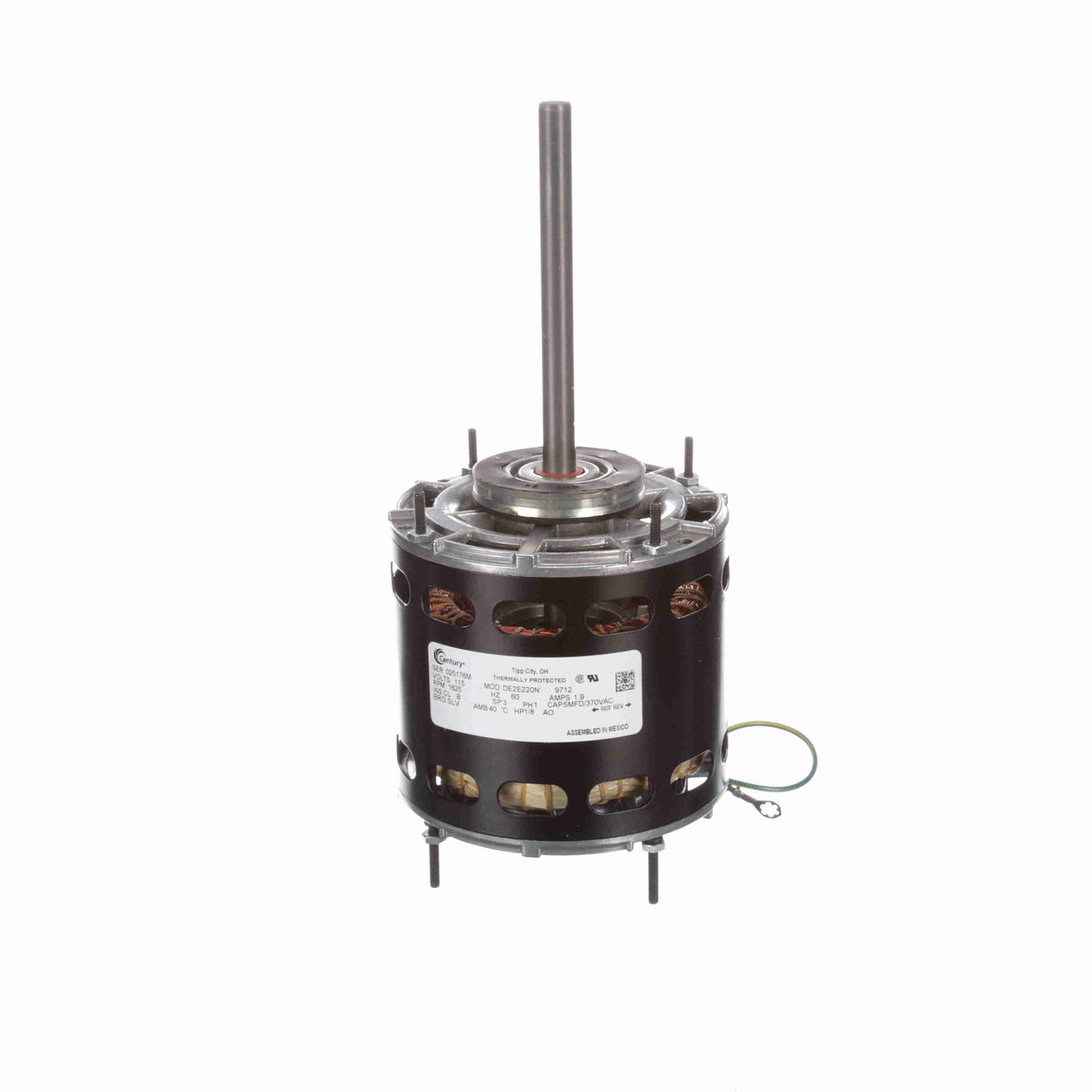

A.O. Smith Corporation 9712 1/8HP,1730RPM,115V,42YZ

A.O. Smith Corporation 9712 1/8HP,1730RPM,115V,42YZ

zoom

Brand: A.O. Smith Corporation
PartNumber: 9712
Manufacturer: A.O. Smith Corporation
Label: A.O. Smith Corporation

Attributes

Key	Value
9712 is listed in Centu.	A.O. Smith DE2E220, Day.
Amps	1.9
Application	Blowers, Fans and Air C.
Bearings	Sleeve
Body Dia.	5"
Bolt Circle Dia.	4-5/8"
Capacitor	5MFD @ 370VAC Required
Capacitor Required	DMD2MDV4
Country of Origin (subj.	Mexico
Duty	Continuous
Duty Cycle	Continuous
Enclosure Type	OAO (Open Air Over)
Frame	42Y
Full Load Amps	1.9
HP	1/8
Hz	60
Includes	Resilient Mounting Ring
Ins. Class	B
Insulation Class	B
Item	Direct Drive Blower Mot.
Length Less Shaft	5 7/16 in
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Sleeve
Motor Design	Permanent Split Capacit.
Motor Diameter	5"
Motor Enclosure Design	Open Air-Over
Motor Mounting Position	Horizontal
Motor Mounting Type	Ring
Motor Service Factor	1.00
Motor Shaft Design	Flat
Motor Shaft Rotation	CW/CCW
Motor Sub Application	Direct Drive Fan/Blower
Motor Thermal Protection	Auto
Mounting	Band/Ring/Stud
Mounting Stud Location	Both Ends
Mounting Stud Pattern	3 1/4 in x 3 1/4 in
Nameplate RPM	1,625
No. of Speeds	3
Number of Speeds	3
Phase	1
Product Type	PSC (Permanent Split Ca.
Resilient Ring Dia.	2 1/2 in
Ring to Ring Center	5 1/16 in
Rotation	Reversible
RPM	1625
Service Factor (SF)	1.00
Shaft Dia.	1/2"
Shaft Diameter	1/2"
Shaft Length	5-3/4", 5 1/4 in
Ship Weight	10 lbs.
Standards	UL Recognized, CSA Cert.
Stud Size	#8-32
Thermal Protection	Automatic
Voltage	115
Voltage Compatibility	115, 120, 115/208-230, .
Volts	115

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	grainger.ca	AOS9712	138.97733288	1	In Stock		CENTURY	8.55	138.97733288 @ 1
	cshincorporated.com	U9712	213.2	1	In Stock		AO Smith / Century	10.0	213.2 @ 1
	patrickssupply.com	9712	226.77	1	In Stock		CENTURY		226.77 @ 1
	sustainablesupply.com	C1561824	231.99	1	In Stock		Century	8.55	231.99 @ 1
	emotorpro.com	9712	248.23	1	In Stock		Century	10.0	248.23 @ 1
	midwestapplianceparts.com	9712-AO-P	257.81	1	In Stock		AO Smith		257.81 @ 1
	National Supply Network	B2776572	259.54	1	In Stock		AO SMITH		259.54 @ 1
	Global Industrial	WBB2776572	271.95	1	In Stock		Century		271.95 @ 1
	hvacdiscountstore.com	CEN--9712	275.75	1	In Stock		CENTURY MOTORS		275.75 @ 1
	Voomi Supply	9712	280.04	1	In Stock		AO SMITH		280.04 @ 1
	Zoro	G204937284	544.82	1	In Stock		A.O. Smith		544.82 @ 1
