Eaton 7563K4

B00LQOBP76

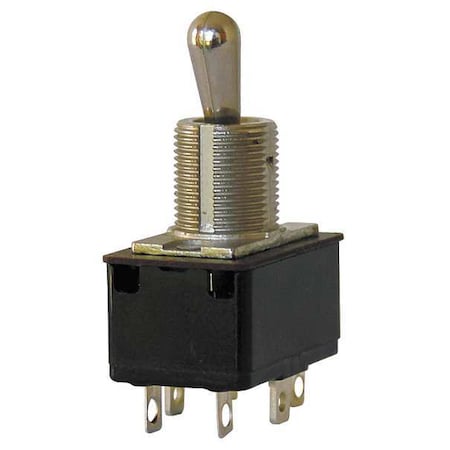

Eaton 7563K4 SWITCH, TOGGLE, DPDT, 15A, 250V

Eaton 7563K4 SWITCH, TOGGLE, DPDT, 15A, 250Vzoom

Attributes

Key Value
AC Contact Rating10A @ 250V AC, 15A @ 12.
Actuator ColorSilver
Actuator Length0.56 in
Actuator TypeBat
Body MaterialThermoset Molding
BrandEaton
Bushing Length0.469 in
Circuit numberD
Circuit position centerOff
Contact FormDPDT
Contact MaterialSilver Plated Copper wi.
Current Rating15 A
current rating 110.00 a
current rating 215.00 a
Current Stock197
Dielectric Strength1000 V
HP3/4 hp
IncludesPanel Mounting
International ShippingNo
ItemToggle Switch
item per pack1
Lead TimeExpected to ship in 1-2.
Lever length0.563 in
Maximum Operating Tempe.+65.6 ?C
Minimum Operating Tempe.-17.8 ?C
Mounting Hole0.50 in dia
Mounting Hole Size0.468 in
mounting typesolder
Mounting TypePanel Mount
Mpn7563K4
Number of Connections6
Number Of PolesTwo-pole
Number of Poles2
Number of Positions3
number of positions3
OperationON-OFF-ON
packagebulk
power rating3/4 hp - 125-250 vac
Product Height1.2 in
Product Length/Depth1.312 in
Product Width.75 in
Seal TypeLever
SKUZO-G5344936
StandardsCSA, RoHS, UL Recognize.
Stem ColorSilver
Stem Dia. and Thread Si.0.500 in
Stem Length0.469 in
SubCategoryElectrical
switch circuiton - off - on
switch functionDPDT
Switch FunctionOn/Off/On
TerminalsSolder Lug
TerminationSolder Lugs
Throw typeDouble-throw
TypeToggle
UPC786685680354
UPC Code786685680354
Voltage Rating125 V
voltage rating 1250 vac
voltage rating 2125 vac

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com7563K45.7134CUTLER HAMMER/EATON5.7 @ 1
thumbzoomCarlton Bates Company786685680355.711In StockEATON5.71 @ 1
us.rs-online.com701557328.131117Eaton / Switches8.13 @ 1
thumbzoomturtle.comCUH 7563K48.41In StockEaton8.4 @ 1
thumbzoomZoroG53449368.591331Eaton0.018.59 @ 1
thumbzoomNewark04M47748.961166EATON8.96 @ 1
thumbzoomsustainablesupply.comC11709899.411In StockEaton0.019.41 @ 1
Grainger21EW059.91In Stock35EATON9.9 @ 1
thumbzoomTedss202700488010.01In StockCUTLER HAMMER / EATON10.0 @ 1
thumbzoomsimsupply.comZO-G534493616.451197Eaton16.45 @ 1
