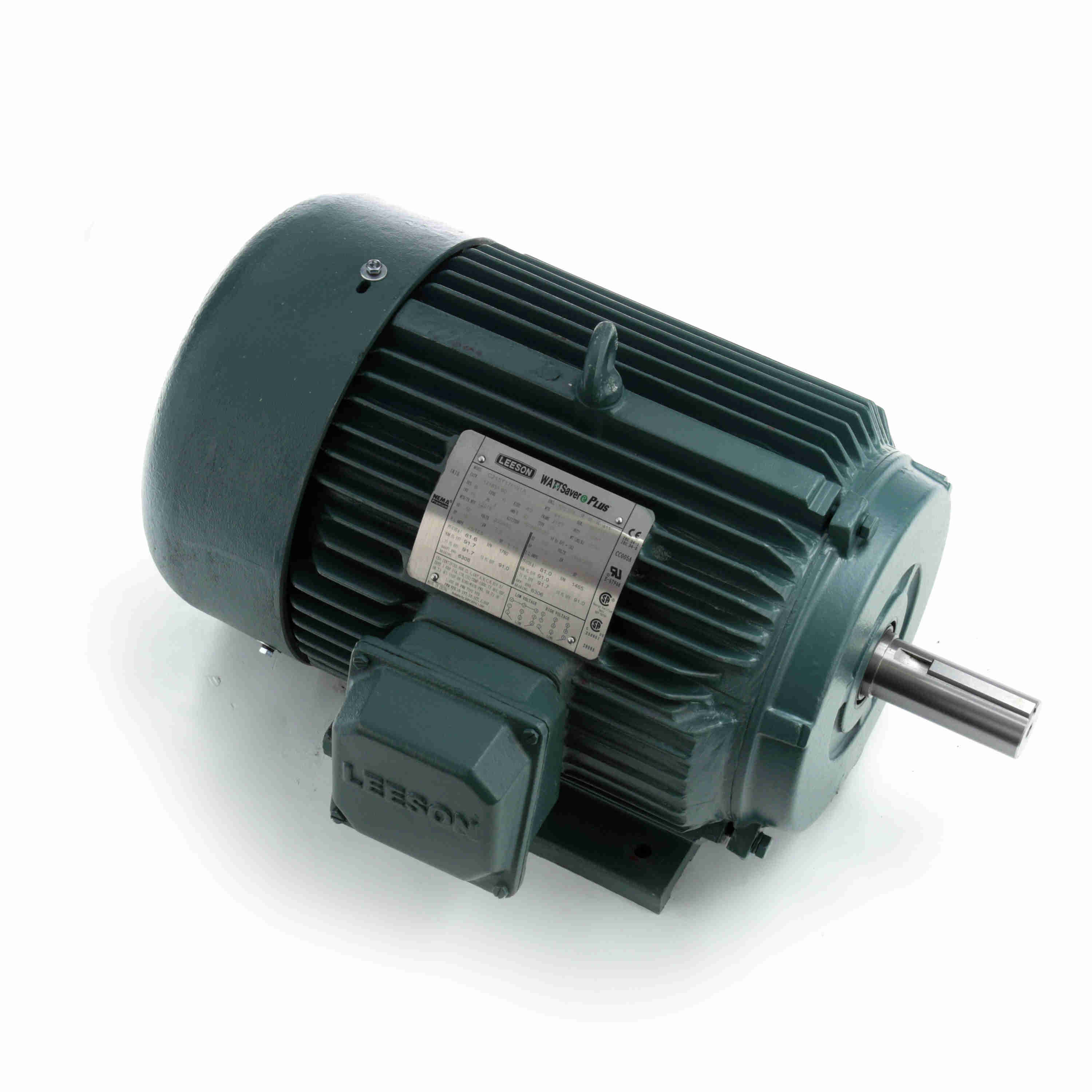

Leeson Electric 171631.60 - Severe Duty Motor- Mill and Chemical - 3 ph Phase, 10 hp, 1800 rpm, 208-230/460 V, 215T Frame, Totally Enclosed Fan Cooled Enclosure, 60 Hz

mpn171631.60
brandname: LEESON ELECTRIC
manufacturername: LEESON ELECTRIC

Leeson Electric 171631.60 - Severe Duty Motor- Mill and Chemical - 3 ph Phase, 10 hp, 1800 rpm, 208-230/460 V, 215T Frame, Totally Enclosed Fan Cooled Enclosure, 60 Hz

Leeson Electric 171631.60 - Severe Duty Motor- Mill and Chemical - 3 ph Phase, 10 hp, 1800 rpm, 208-230/460 V, 215T Frame, Totally Enclosed Fan Cooled Enclosure, 60 Hz

zoom

Binding: Misc.
Manufacturer: Leeson Electric
Label: Leeson Electric

Attributes

Key	Value
Amperage Rating	27 to 25/12.5 A
Bearing Type	Ball
Description:	OBSOLETE REPLACED BY 21.
Dimensions	20.11 in L x 13.98 in W.
Enclosure Type	Totally Enclosed Fan Co.
Frame	215T
Frequency Rating	60 Hz
Horsepower	10 hp
Insulation Class	Class F
Manufacturer	LEESON ELECTRIC CORPORA.
Material	Cast Iron
MFG Part #:	171631.60
Mounting Type	Rigid
Number of Speeds	1
Rotation	Reversible
Service Factor	1.149
Shaft Size	1.38 in Dia
Speed	1800 rpm
Supplier:	LEESON ELECTRIC CORPORA.
Temperature Rating	40 deg C
Type	Type TF Continuous Duty
UPC:	691720356227

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	kscdirect.com	LEE 171631.60	1556.33	1	In Stock		LEESON ELECTRIC CORPORATION		1556.33 @ 1
	Walker Industrial	171631-60	1612.47	1	In Stock	10	Leeson		1612.47 @ 1
	steinerelectric.com	PDW~6587074	1965.0	1	In Stock		LEESON		1965.0 @ 1
	Raptor Supplies	AJ2TKA	2208.285846	1	In Stock		LEESON		2208.285846 @ 1
