Unknown NML10

B01N1HF4SG

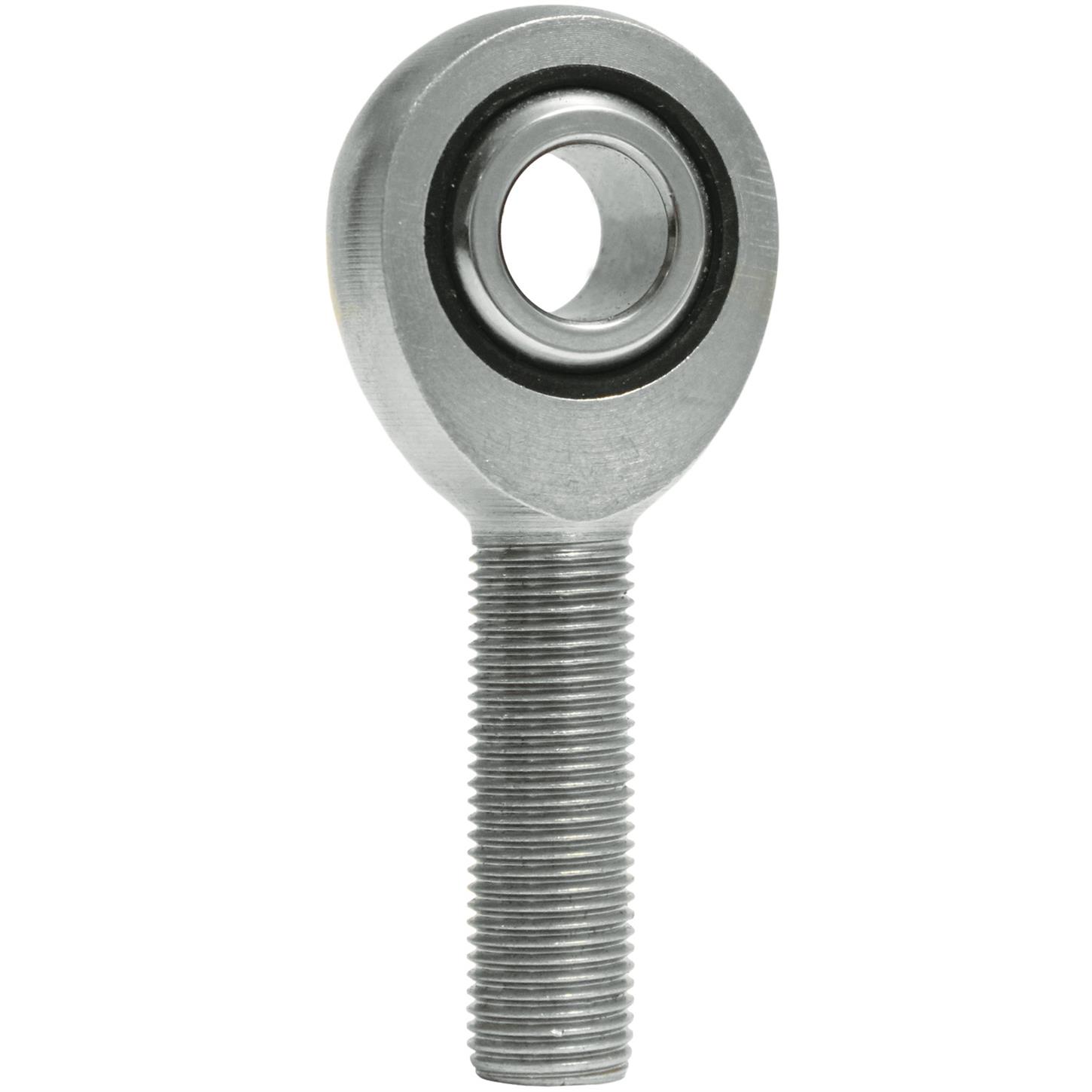

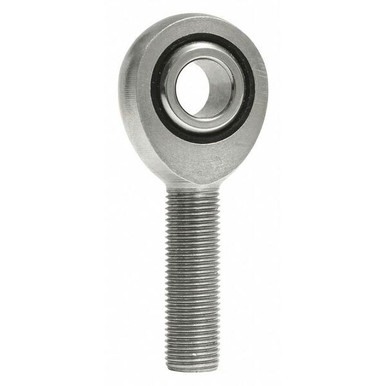

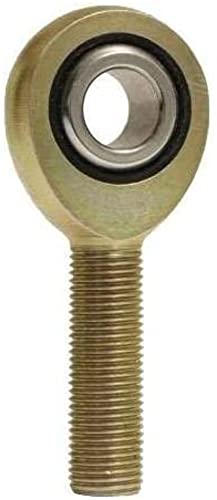

QA1 Precision Products NML10 ROD END (N) ECON CARBONM-L 5/8-5/8

QA1 Precision Products NML10 ROD END (N) ECON CARBONM-L 5/8-5/8zoom

Attributes

Key Value
ApplicationLow Load, Moderate Osci.
Ball52100 Steel Spherical
Ball Diameter1.125 in
Ball MaterialAlloy Steel
Ball Material Grade52100
Ball Width3 Inch | 19.05 Millimet.
Bore0.625 Inch | 15.875 Mil.
Bore Diameter5/8 in
Bore Diameter Tolerance+0.0025/-0.0005 in
Bore Size0.625 in
BrandQa1, QA1 PRECISION PROD
CategorySpherical Plain Bearing.
ColorChrome
ConstructionFollows SAE Specificati.
Current Stock9
Dimension A5/8"-18
Dimension AA0.625/0.627 in
Dimension E1.5 in
Dimension G2.625 in
Dimension H1.625 in
Dimension J3.375 in
Dimension N0.75 in
EAN0806990024459
EnclosureOpen
FinishZinc Plated
Harmonized Tariff Code8483.30.80.55
Head Outside Diameter1 1/2 in
Head Width0.562 in
Hole Diameter0.625"
HousingCarbon Steel
Housing MaterialCarbon Steel
Housing Width0.562 Inch | 14.275 Mil.
Inch - MetricInch
Inner Ring Width0.75 in
Inside Dia.0.625/0.627 in
International ShippingNo
ItemNylon/PTFE Race Rod End
Lead TimeExpected to ship in 1-2.
Load Capacity8300 lbs.
Manufacturer NameQA1 PRECISION PRODUCTS .
Material - BallSteel
Material - LinerNylon | Teflon
Material - Outer MemberSteel
Material TypeSteel
Maximum Ball Swivel16 Degrees
MFG. Part #NML10
Mounting Thread5/8-18 UNF
MpnNML10
Other Features3 Piece | Injection Mol.
Overall Length3 3/8 in
price$ 11.14 / each
Race MaterialNylon/PTFE
RelubricatableNo
Resistance PropertiesCorrosion Resistant, Hi.
Rod End AttachmentMale Threads/Eyelet
Rod End Construction3-piece
Rod End Head Width0.75"
Rod End Misalign Angle16 degrees
Rod End TypeSpherical Rod End
Seal TypeOpen
Self Lubricating BearingYes
SeriesNM Series
Shank Thread DirectionLeft Hand
Shank Thread GenderMale
Shank Thread Length1 5/8 in
Shank Thread Size5/8"-18
SKUZO-G4426152
Sold in QuantityEach
StandardsISO Certified 9001
Static Radial Load8,300 lb
Static Radial Load Capa.8,300 lbf
Stud ProfileMale
SubCategoryPower Transmission
System of MeasurementInch
ThreadLeft Hand
Thread DirectionLeft Hand
Thread Length1.625"
Thread Pitch5/8"-18
Thread Size5/8-18, 5/8"-18
Thread TypeLH Male, Left Hand
titleNML10
TypeMale Plain
UNSPSC31171508
UPC806990024459
Weight / kgm0.16
Weight / LBS0.36

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Summit RacingQA1-NML106.991In StockQA16.99 @ 1
us.rs-online.com722007607.76110QA17.76 @ 1
thumbzoomZoroG44261527.89139Qa10.47.89 @ 1
thumbzoomLily BearingNML109.471In StockQA1 PRECISION PROD0.3529.47 @ 1
thumbzoomspeedwaymotors.com721NML109.991In StockQA19.99 @ 1
Jegs122-NML1012.991In StockQA112.99 @ 1
thumbzoomsimsupply.comZO-G442615215.4319Qa115.43 @ 1
grainger.caGGF20F92416.504828441In StockQA10.416.50482844 @ 1
motionindustries.com0684076017.241In StockQA1 Precision Products17.24 @ 1
thumbzoomsustainablesupply.comC166496217.881In StockQA10.417.88 @ 1
thumbzoomRaptor SuppliesAB4UWY26.62645051In StockQA126.6264505 @ 1
