TSUBAKI 40B30F-1

B000E257NO

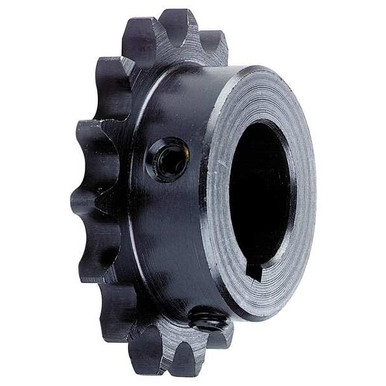

Sprocket, 5.060 OD, #40

Sprocket, 5.060 OD, #40zoom

Attributes

Key Value
Bore Dia. (In.)1
Bore Dia. - Sprockets1 in
Bore Diameter1 in
Bore TypeFixed
BrandTsubaki
Chain Number40
Current Stock9
FinishBlack Oxide
For Chain Pitch1/2 in
For Number of StrandsSingle
For Pitch TypeSingle Pitch
Hub Diameter3 1/4 in
Hub Projection1 in
Hub TypeOne Side
IncludesStandard Keyway and 2 S.
Industry Chain Size40
International ShippingNo
ItemSingle Strand Sprocket
Keyseat Size (In.)1/4 x 1/8
KeywayYes
Keyway Depth1/8 in
Keyway Size1/4 in x 1/8 in
Keyway Width1/4 in
Lead TimeExpected to ship in 1-2.
Length through Bore1 in
MaterialSteel
Material - SprocketsSteel
Material Grade1045
Maximum Bore Diameter1 in
Mpn40B30F-1
Number of Chain RowsSingle
Number of Set Screws2
Number of Teeth30
Number of Teeth - Sproc.30
Outside Dia.5.06 in
Outside Dia. (In.)5.060
Outside Diameter5.06 in, 5 in
Pitch Dia.4.783 in
Pitch Dia. (In.)4.783
Pitch Diameter4.783 in
Resistance PropertiesCorrosion Resistant
Set Screw Dia. (In.)5/16
Set Screw Hole Dia.0.313 in
Set Screw Location90 Degrees from Keyway,.
Set Screw Size5/16 in
SKUZO-G3263364
StandardsANSI
SubCategoryPower Transmission
Teeth Heat TreatmentHardened Teeth
Tooth Width0.284 in
Width Across Tooth SetsNot Applicable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG326336455.59128Tsubaki2.2555.59 @ 1
grainger.caWWG1L14564.386250261In StockTSUBAKI2.2564.38625026 @ 1
thumbzoomsimsupply.comZO-G326336472.9519Tsubaki72.95 @ 1
thumbzoomRaptor SuppliesAB2BTC107.03095651In StockTSUBAKI107.0309565 @ 1
