- mpn4Z007
- brandname: Dayton
- manufacturername: Dayton

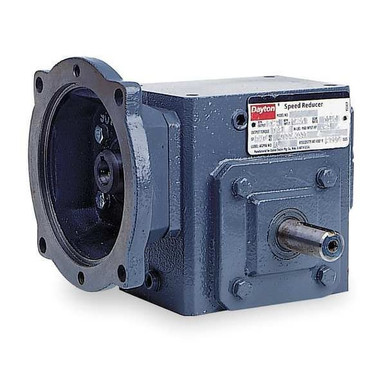

Speed Reducer, C-Face, 56C, 5:1
- Brand: Dayton
- PartNumber: 4Z007
- Manufacturer: DAYTON
- Label: DAYTON
Attributes
| Key | Value |
|---|
| Bearings | Ball |
| Bore Dia. | 5/8" |
| Brand | Dayton |
| Current Stock | 3 |
| Dimension U | 5/8 in |
| Duty | Standard |
| Finish | Powdered Epoxy Paint |
| Frame | 56c |
| Gear Material | Hardened Steel, Mangane. |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input RPM | 1750 rpm, 1750 |
| Input Shaft Diameter | 5/8 in |
| International Shipping | No |
| Item | Speed Reducer |
| Lead Time | Expected to ship in 1-2. |
| Lubrication | Kluber Food Grade, Klub. |
| Max. Input HP | 1, 1 hp |
| Max. Output Torque | 163.00 in.-lb. |
| Max. Torque (In.-Lbs.) | 163 |
| Mounting | Any Position Except Inp. |
| Mpn | 4Z007 |
| NEMA/IEC Frame | 56c |
| Nominal Output RPM | 350 RPM, 350 |
| Nominal Ratio | 5:1 |
| Number of Stages | 1 |
| Oil Seal | Double Lip |
| Output Shaft Dia. | 5/8 in |
| Output Shaft Diameter | 5/8 in |
| Output Torque @ 1 HP | 163 in-lb, 163 in-lbs |
| Output Torque @ 1 HP (I. | 163 |
| Output Torque @ 1.5 HP | 163 in.-lb., 163 in-lbs |
| Output Torque @ 1/2 HP | 80 in-lb, 80 in-lbs |
| Output Torque @ 1/2 HP . | 80 |
| Output Torque @ 1/3 HP | 52 in-lb |
| Output Torque @ 1/3 HP . | 52 |
| Output Torque @ 1/4 HP | 39 in-lb |
| Output Torque @ 1/4 HP . | 39 |
| Output Torque @ 1/40 HP | 3,600 in-lbs, 3600 in.-. |
| Output Torque @ 3/4 HP | 121 in-lbs |
| Output Torque @ 3/4 HP . | 121 |
| Overhung Load | 275 lb. |
| Overhung Load (Lb.) | 275 |
| Pinion Material | Hardened Steel |
| Prop 65 | WARNING: Cancer and Rep. |
| Rotation | Forward/Reverse |
| Seal Type | Double Lip |
| Shaft Assembly | Double Output |
| Shaft Orientation | Right Angle |
| Ship Weight | 17 lbs. |
| Single/Double Output/Un. | Double Output |
| SKU | ZO-G3383843 |
| Solid/Hollow Output Sha. | Solid |
| Speed Reducer Type | C-Face |
| Standards | AGMA |
| SubCategory | Power Transmission |
| Type | C-Face |
| UPC | 190735339794 |
| Worm Center Distance | 1.33", 1.33 in |
| Worm Gear Material | Bronze |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3383843 | 470.99 | 1 | 10 | | Dayton | 16.2 | 470.99 @ 1 |
 | simsupply.com | ZO-G3383843 | 568.1 | 1 | 3 | | Dayton | | 568.1 @ 1 |
 | sustainablesupply.com | C2777417 | 604.79 | 1 | In Stock | | Dayton | 16.2 | 604.79 @ 1 |
| grainger.ca | WWG4Z007 | 700.2213385 | 1 | In Stock | | DAYTON | 16.2 | 700.2213385 @ 1 |
| AmazonTP | B000TKHR2A | 753.52 | 1 | In Stock | 3 | DAYTON | | 753.52 @ 1 |
| AmazonUNK | B000TKHR2A | 753.52 | 1 | In Stock | | DAYTON | | 753.52 @ 1 |
 | Raptor Supplies | AE2QQL | 773.072118 | 1 | In Stock | | DAYTON | | 773.072118 @ 1 |
| emotorpro.com | 4Z007 | 893.56 | 1 | In Stock | | Dayton | 17.0 | 893.56 @ 1 |
