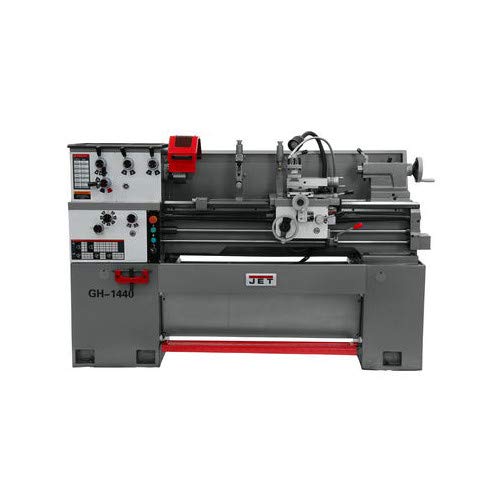

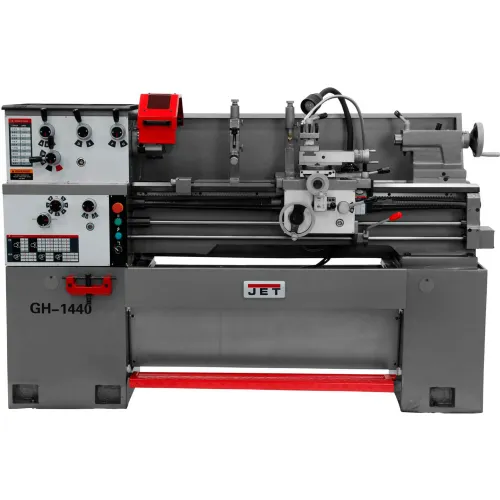

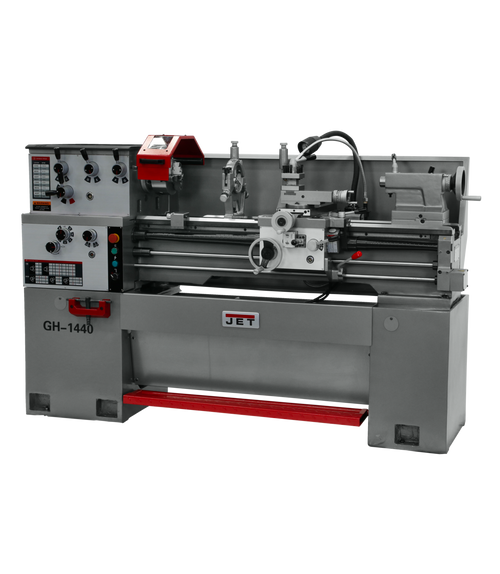

JET GH-1440-3 Lathe with Newall DP

JET GH-1440-3 Lathe with Newall DPzoom

Attributes

Key Value
Bed Width9 3/8 in
Distance Between Centers40 in
Frequency60 Hz
Horsepower3 hp
IncludesTaper Attachment
ItemLathes
Max. Cross Feed0.0103 in
Min. Cross Feed0.0004 in
Min. Metric Thread0.45 mm
Min. Threads per Inch4
Number of Inch Threads40
Number of Metric Threads23
Number of Spindle Speeds12
Overall Height74 51/64 in
Overall Length75 in
Overall Width30 in
PhaseThree
SKU323413
Sound Level88 dB
Spindle Bore1 1/2 in
Spindle Nose TypeD1-4 Camlock
Swing In Gap20 in
Swing Over Cross Slide8 13/64 in
Tailstock TaperMT3
Voltage230/460V AC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
internationaltool.comJET-32341321539.01In StockJet21539.0 @ 1
thumbzoomGlobal IndustrialWBB236555224159.01In StockJET24159.0 @ 1
thumbzoomCPOJETN32341324159.01In StockJET24159.0 @ 1
thumbzoomJB ToolsJB-DS-WLT-32341324159.01In StockJet24159.0 @ 1
elitemetaltools.com969924159.01In StockJET24159.0 @ 1
ToolUp.comJET 32341324159.01In StockJet24159.0 @ 1
thumbzoomimsbolt.com32341324159.01In StockJET24159.0 @ 1
thumbzoomZoroG189299524709.01In StockJet2336.024709.0 @ 1
