FCA-325-BZ4

B00HIUU38Y

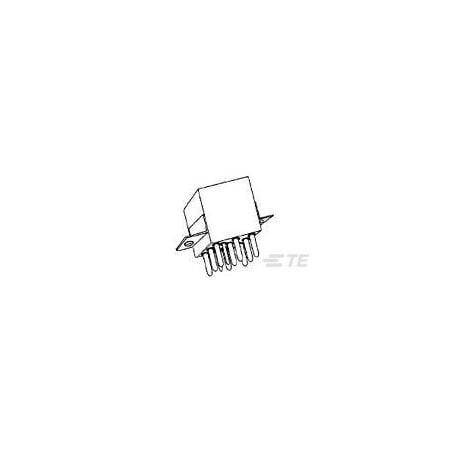

TE CONNECTIVITY / CII FCA-325-BZ4 POWER RELAY, 3PDT-3CO, 28VDC, 25A, PCB

TE CONNECTIVITY / CII FCA-325-BZ4 POWER RELAY, 3PDT-3CO, 28VDC, 25A, PCBzoom

Attributes

Key Value
Actuating SystemDC
Alternate Mfr Part Numb.5-1617753-0
ASINB00HH2VEZY
Auxiliary ContactsWithout
Back EMF SuppressionWith
Base Product NumberFCA-325
CategoryRelays
Coil Insulation-
Coil Magnetic SystemPolarized, Monostable
Coil Resistance290 Ohms, 290 ?
Coil Suppression DiodeWith
Coil TypeNon Latching
Coil Voltage28 VDC, 28VDC
Coil Voltage Rating28 VDC
Contact Arrangement3 Form C, 3PDT, 3 C/O
Contact Base MaterialSilver Cadmium Oxide
Contact Current Rating25 A
Contact Form3PDT (3 Form C), 3PDT
Contact MaterialSilver Cadmium Oxide (A.
Contact Rating (Current)25 A
Control Voltage28
Current Rating25 A
DescriptionRELAY GEN PURPOSE 3PDT .
Detailed DescriptionGeneral Purpose Relay 3.
Digi-Key Part NumberA122256-ND
Enclosure TypeHermetically Sealed
Features-
FunctionMilitary/Aerospace
Item Package Quantity1
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.FCA-325-BZ4
Manufacturer Standard L.26 Weeks
MfrTE Connectivity Aerospa.
Mounting TypeNo Brackets, Through Ho.
Must Operate Voltage18 VDC
Must Release Voltage1.5 VDC
Operate Time15 ms
Operating Temperature-70?C ~ 125?C
Operating Temperature R.-70 to 125?C
PackageBulk
Package Quantity1
Part NumberFCA-325-BZ4
Primary TypePower Relays
Product StatusActive
Product TypeRelay
Relay TypeElectromechanical, Gene.
Release Time15 ms
Seal RatingSealed - Hermetically
SeriesFCA Series, FCA, CII
Shock200G's, 6ms
Switching Voltage115VAC, 28VDC - Max
Terminal ConfigurationSolder Pins
Terminal PlatingTin-Lead
Termination StylePC Pin
Vibration30G's, 33 to 3000Hz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com5-1617753-0185.931In StockTE Connectivity / AMP Brand185.93 @ 1
Future Electronics1050187241.95610In StockTE Connectivity241.956 @ 10
AmazonSCB00HH2VEZY254.361In StockTE Connectivity / CII Brand254.36 @ 1
thumbzoomDigi-Key3466153288.021439TE Connectivity Aerospace, Defense and Marine288.02 @ 1
us.rs-online.com70158761328.71In StockTE Connectivity328.7 @ 1
AmazonTPB00HH2TBJA332.211In Stock1TE Connectivity / AMP Brand332.21 @ 1
AmazonUNKB00HH2TBJA332.211In StockTE Connectivity / AMP Brand332.21 @ 1
thumbzoomZoroG801017587363.991In StockTe Connectivity363.99 @ 1
Newark75AC9044379.511In StockAMP - TE CONNECTIVITY379.51 @ 1
