3M MH10-10FLK

mpnMH10-10FLK
brandname: 3-M
manufacturername: 3-M

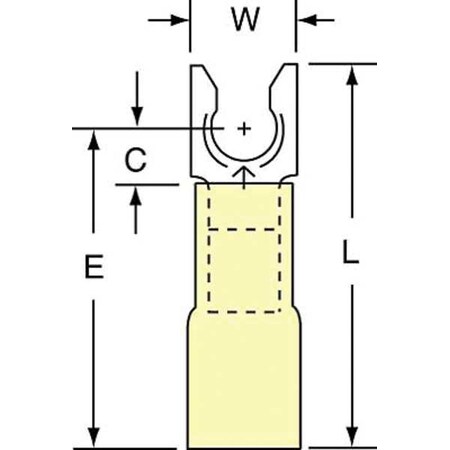

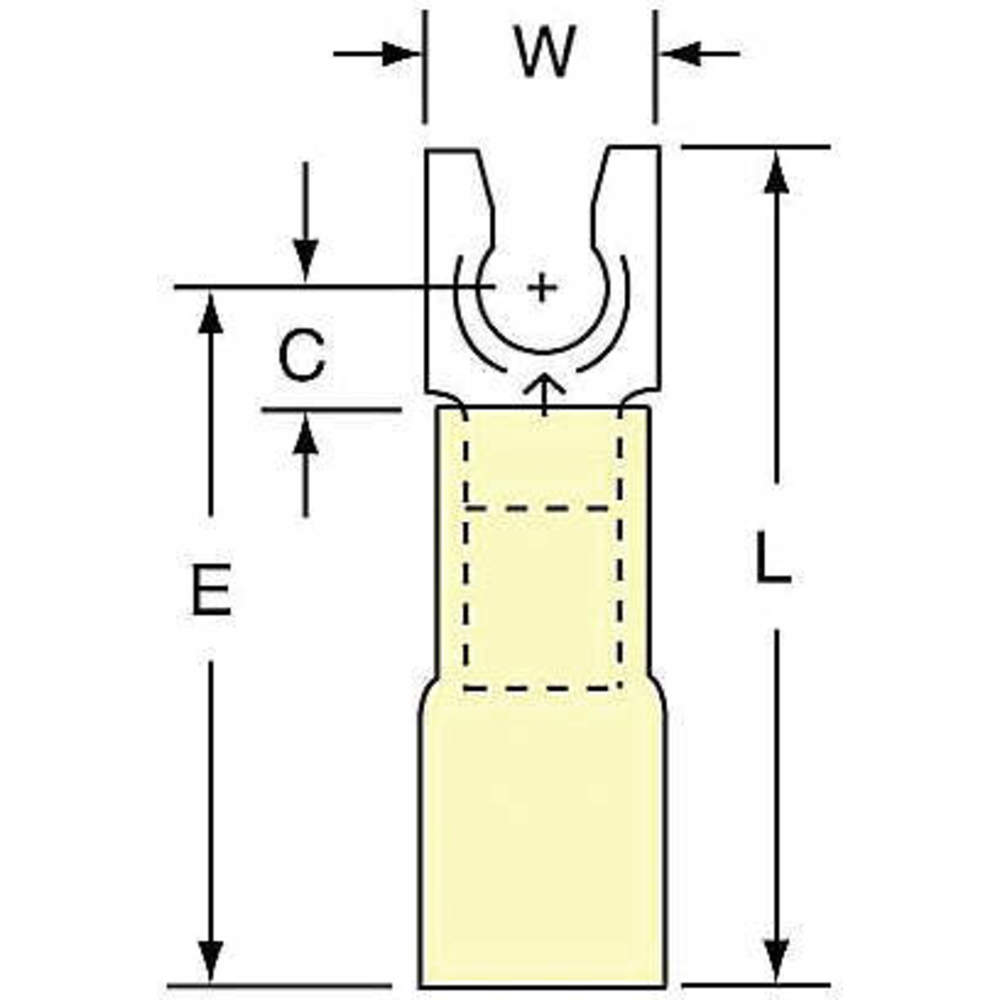

3M SCOTCHLOK LOCKING FORK, HEAT SHRINK BRAZED SEAM MH10-10FLK, STUD SIZE 10, SPRING-LIKE TONGUE FIRMLY FITS AROUND THE STUD

3M SCOTCHLOK LOCKING FORK, HEAT SHRINK BRAZED SEAM MH10-10FLK, STUD SIZE 10, SPRING-LIKE TONGUE FIRMLY FITS AROUND THE STUD

zoom

Brand: 3M
PartNumber: MH10-10FLK
Model: MH10-10FLK
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MH10-10FLK
Alternate Mfr Part Numb.	54007063087
Barrel Length	0.25 in
Barrel Length Type	Brazed
Base Product Number	MH10
Brand	3M
Category	Electrical Insulating T.
Clearance	0.16 in
Color	Yellow
Connection Material	Copper
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper, ETP
Country of Origin	US - United States, USA
ECCN	EAR99
Fastening Mechanism	Locking
Features	Brazed Seam
Fork Width	0.32 in
Inside Diameter	0.135 in
Insulation	Insulated with Heat Shr.
Insulation Color	Yellow
Insulation Diameter	-
Insulation Length	0.8 in
Insulation Material	Nylon
Insulation Type	Heat Shrink
Item	Fork Terminal
Length - Overall	1.000" (25.40mm)
Length - Ring Center to.	0.160" (4.06mm)
Length - Termination	0.640" (16.26mm)
Manufacturer	3M
Material	Polyolefin
Material - Insulation	Polyolefin
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Voltage	600 V
Maximum Wire Size	10 AWG
Mfr	3M
Minimum Conductor Leg D.	12 AWG
Minimum Wire Size	12 AWG
Mounting Type	Free Hanging (In-Line)
Overall Length	1.0 in, 1 in
Overall Width	0.32 in
Package	Bulk
Package Quantity	100 per bottle, 250 per.
Product Status	Active
Seam	Brazed
Series	Scotchlok?
Size	10
Standards	CSA Certified, UL Listed
Stud Size	#10
Stud/Tab Size	10 Stud
Terminal Connection	Crimp
Terminal Type	Locking, Spring, Snap
Termination	Crimp
Tongue Inside Opening	-
Tongue Width	0.32 in
Tongue Width - Wire Con.	0.32 in
Trade Name	Scotchlok
Type	Fork, Heat Shrink
UNSPSC	31201502
UPC	054007063087
Width - Outer Edges	0.320" (8.13mm)
Wire Gauge	10-12 AWG
Wire Range	12 to 10 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	us.rs-online.com	72085564	0.77484	250	250		3M		0.77484 @ 250
	turtle.com	MMM MH10-10FLK	0.8	1	250		3M		0.8 @ 250
	Platt.com	0319235	0.97	1	250		3M		0.97 @ 250
	Digi-Key	184040	1.0186	250	250	33	3M		1.0186 @ 250
	Newark	44P4090	1.11	250	250		3M		1.11 @ 250
	rshughes.com	054007-06308	162.5	100	250		3M		162.5 @ 250
	gordonelectricsupply.com	MH10-10FLK	168.75	1	250	455	3-M		168.75 @ 250
	Zoro	G4147039	191.99	1	250		3M	1.0	191.99 @ 250
	Raptor Supplies	AC2FKD	426.2131575	1	250		3M		426.2131575 @ 250
	Dale-Electric	MH10-10FLK	743.12	1	250		3M		743.12 @ 250
	Graybar	93152823	1019.9952	1	250		3M		1019.9952 @ 250
