3M MNG10-10FFBK

mpnMNG10-10FFBK
brandname: 3-M
manufacturername: 3-M

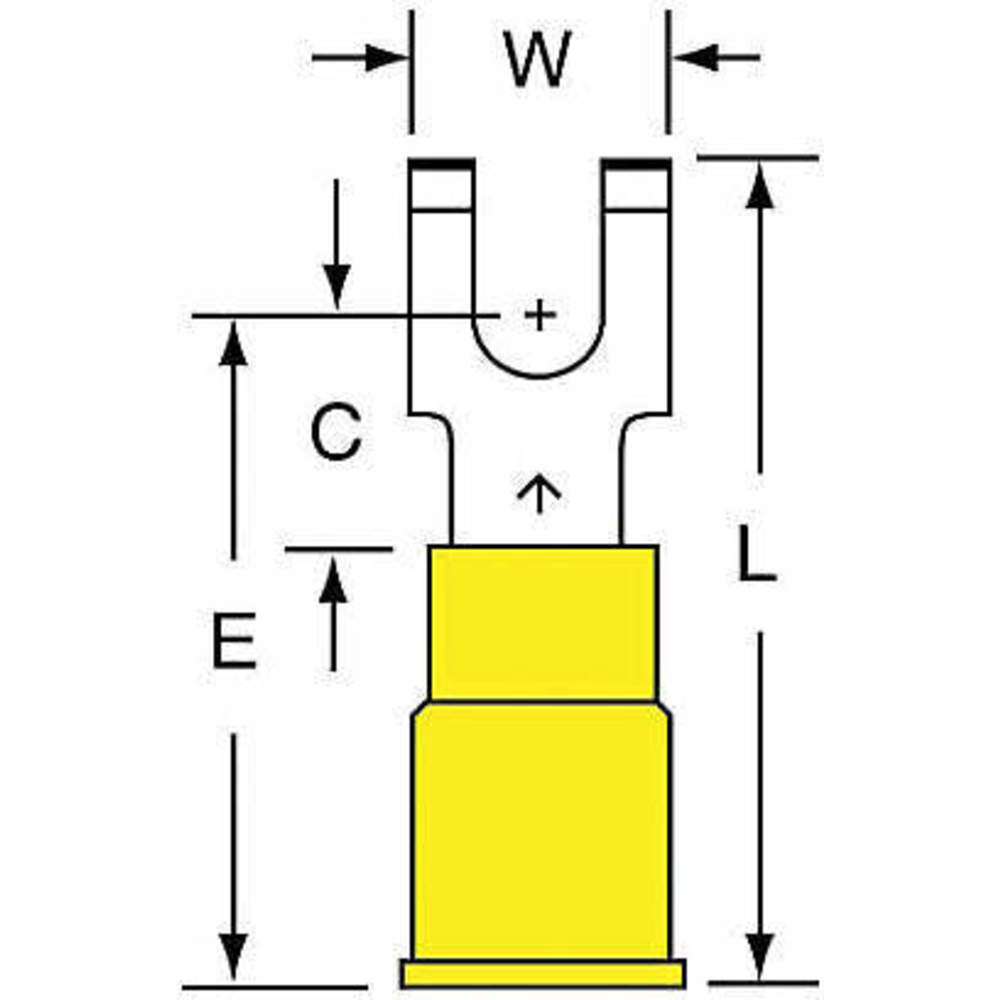

3M Scotchlok MNG10-10FFBK Yellow Locking Butted Nylon Butted Fork & Spade Terminal - 1.03 in Length - 0.32 in Fork Width - #10 Stud - 02037 [PRICE is per CASE]

Brand: 3M
PartNumber: MNG10-10FFBK
Model: 00-81JWLTKU-21
Color: Yellow
PackageQuantity: 1
Binding: Misc.
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MNG10-10FFBK
Barrel Length	0.55 in, 0.25 in
Barrel Length Type	Butted
Barrel Style	Insulation Grip
Base Product Number	MNG10
Brand	3M
Category	Electrical Insulating T.
Clearance	0.29 in
Color	Yellow
Connection Material	Copper
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper, Copper, ETP
Country of Origin	USA
Country of Origin (subj.	United States
Fastening Mechanism	Locking
Features	-
For Wire Size	10 AWG, 12 AWG
Fork Width	0.32 in
Inside Diameter	0.135 in
Insulation	Insulated
Insulation Color	Yellow
Insulation Diameter	0.250" (6.35mm)
Insulation Length	0.84 in
Insulation Material	Nylon
Insulation Type	Nylon
Item	Fork Terminal
Length - Overall	1.030" (26.16mm)
Length - Ring Center to.	0.290" (7.37mm)
Length - Termination	0.550" (13.97mm)
Manufacturer	3M
Material	Vinyl
Material - Insulation	Polyamide (PA), Nylon
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Insulation Outs.	0.25 in
Maximum Operating Tempe.	221 Degrees F
Maximum Voltage	600 V
Maximum Wire Size	10 AWG
Mfr	3M
Minimum Conductor Leg D.	12 AWG
Minimum Wire Size	12 AWG
Mounting Type	Free Hanging (In-Line)
Overall Length	1.03 in
Overall Width	0.32 in
Package	Bulk
Package Quantity	500 per case
Part Status	Active
RoHS Compliant	Yes
Seam	Brazed
Seam Style	Butted
Series	Scotchlok?
Standards	CSA Certified, UL Listed
Stud Size	#10
Stud/Tab Size	10 Stud
Terminal Connection	Crimp
Terminal Shape	Flanged Block Fork
Terminal Type	Flanged, Block
Termination	Crimp
Termination Style	Crimp
Tongue Inside Opening	-
Tongue Thickness	0.04 in
Tongue Width	0.32 in
Tongue Width - Wire Con.	0.32 in
Trade Name	Scotchlok
Type	Fork, Insulated
UNSPSC	31201502
UPC	054007020370
Width - Outer Edges	0.320" (8.13mm)
Wire Gauge	10-12 AWG
Wire Range	12 to 10 AWG
Wire Size Range	12 AWG - 10 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Digi-Key	3865617	0.80702	500	500		3M		0.80702 @ 500
turtle.com	MMM MNG10-10FFBK	0.82	1	500		3M		0.82 @ 500
Platt.com	0319022	1.01	1	500		3M		1.01 @ 500
sustainablesupply.com	C1180766	287.11	1	500		3M	2.3	287.11 @ 500
Zoro	G5772216	298.89	1	500	26	3M	2.3	298.89 @ 500
rshughes.com	054007-02037	335.0	500	500		3M		335.0 @ 500
gordonelectricsupply.com	MNG10-10FFBK	347.5	1	500	455	3-M		347.5 @ 500
Dale-Electric	MNG10-10FFBK	767.76	1	500		3M		767.76 @ 500
Raptor Supplies	AC2FNN	811.9000305	1	500		3M		811.9000305 @ 500
