3M MNG18BCX

B016FJS0PG

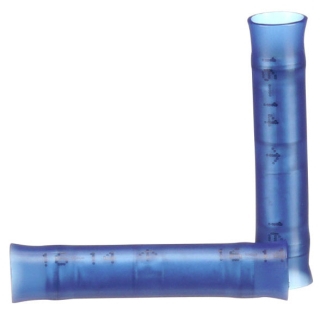

3M Mng18Bcx 22-18 Ins Butt Splice

3M Mng18Bcx 22-18 Ins Butt Splicezoom

Attributes

Key Value
3M NumberMNG18BCX
Allowable Gauge Range22 - 18
Barrel Inside Dia.0.07 in
Barrel Inside Diameter0.07 in
Barrel Length0.25 in
Body FinishTin Plated
Body MaterialCopper
Brand3M
ColorRed
Compatible Installation.TH-440, TH-450, TR-482,.
Connection MaterialCopper
Connection TypeCrimp
Connector TypeButt Splice
Contact MaterialBrass
Country of OriginUS - United States
ECCNEAR99
For Maximum Wire Insula.0.145 in
For Wire Size18 AWG, 20 AWG, 22 AWG
Inside Diameter0.07 in
Insulation ColorRed
Insulation ColourRed
Insulation MaterialNylon
Insulation TypeNylon
ItemSplice Connector
MaterialNylon
Max. Temp.221 Degrees F
Max. Voltage600 V
Maximum Insulation Outs.0.145 in
Maximum Operating Tempe.221 Degrees F
Maximum Voltage600V
Maximum Wire Size18 AWG
Minimum Conductor Leg D.22 AWG
Minimum Operating Tempe.-40 Degrees F
Minimum Wire Size22 AWG

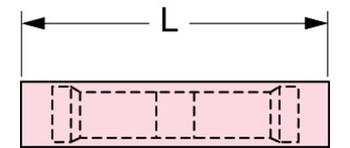

Overall Length1 in
Package Quantity100 per pack, 500 per c.
RoHS CompliantYes
SeamBrazed
Seam StyleSeamless
StandardsUL, CSA and RoHS 2011/6.
Termination StyleCrimp
Trade NameScotchlok
TypeInsulation Grip, Insula.
UNSPSC39121432
Wire Range22 to 18 AWG
Wire Size Range22 AWG - 18 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomrshughes.com051128-586481.3100763M1.3 @ 100
thumbzoomturtle.comMMM MNG18BCX1.61623M1.6 @ 1
thumbzoomPlatt.com00634852.4912003M2.49 @ 1
kirbyrisk.com19111143.12100323M3.12 @ 100
thumbzoomsustainablesupply.comC120500382.011763M0.3582.01 @ 1
thumbzoomgordonelectricsupply.comMNG18BCX134.591624553-M134.59 @ 1
thumbzoomZoroG0983193145.991323M145.99 @ 1
thumbzoomCarlton Bates Company05112858648164.01763M164.0 @ 1
thumbzoomRaptor SuppliesAE4AJZ175.30104151In Stock3M175.3010415 @ 1
Graybar25323674207.56961In Stock3M207.5696 @ 1
thumbzoomNewark66W6351209.121In Stock3M209.12 @ 1
thumbzoomelectricalparts.comMNG18BCX267.76961323M267.7696 @ 1
grainger.caMMMMNG18BCX315.195771621323M0.39315.19577162 @ 1
