- mpnMNG18-47PX-A
- brandname: 3-M
- manufacturername: 3-M

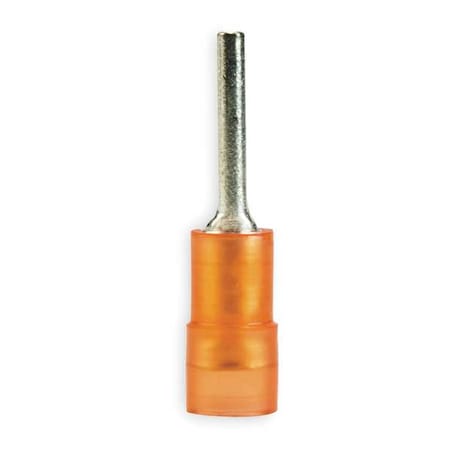

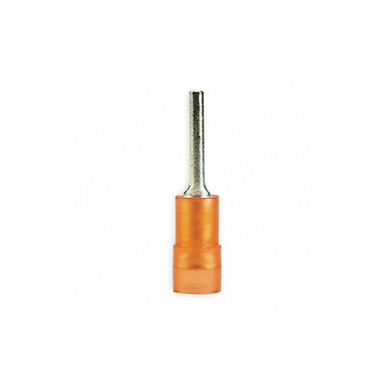

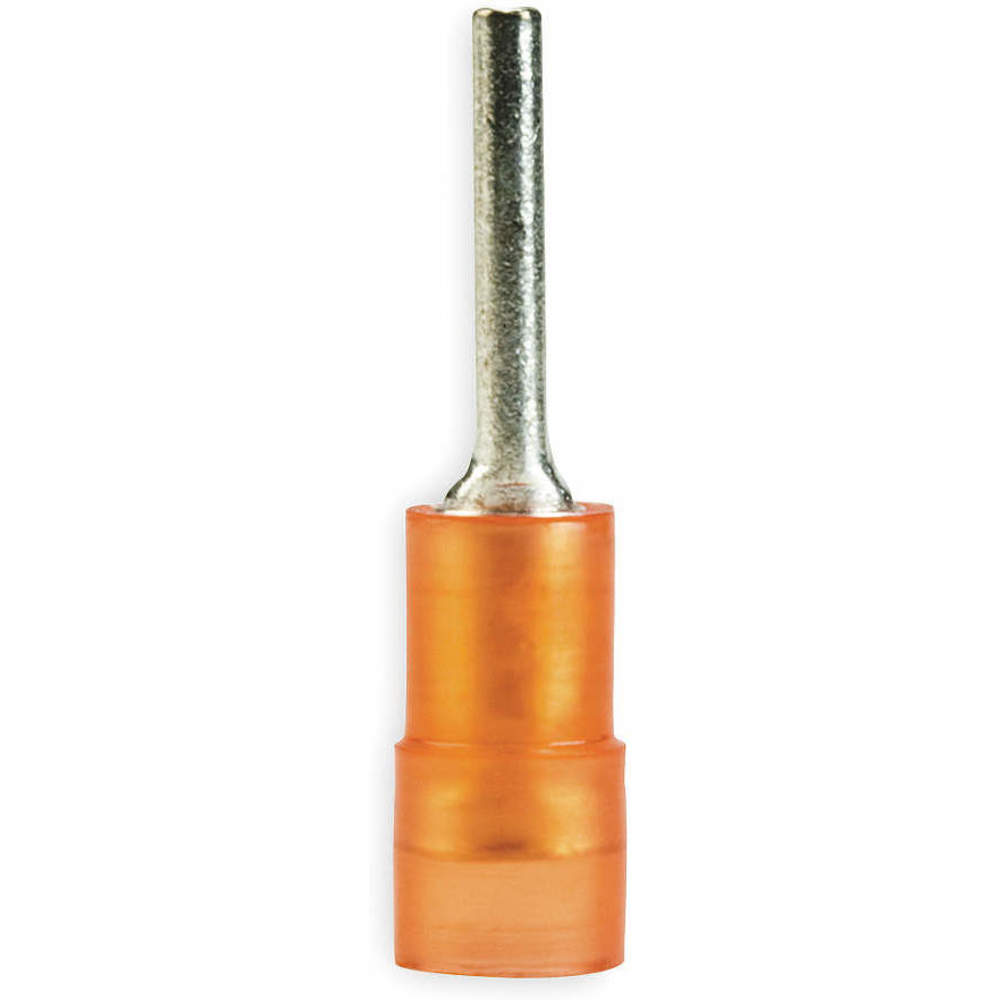

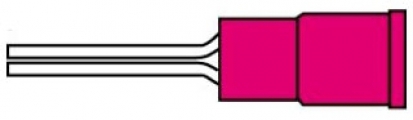

3M(TM) Scotchlok(TM) Pin Nylon Insulated, 100/bottle, MNG18-47PX-A
- Brand: Scotchlok
- PartNumber: MNG18-47PX-A
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: 3M
- Label: 3M
Attributes
| Key | Value |
|---|
| 3M Number | MNG18-47PX-A |
| Barrel Inside Dia. | 0.08 in |
| Barrel Inside Diameter | 0.08 in |
| Barrel Length Type | Insulation Grip |
| Barrel Outside Diameter | 0.17 in |
| Barrel Style | Insulation Grip |
| Barrel Style: | Insulation Grip |
| Brand | 3M |
| Category | Electrical Terminals |
| Color | Red |
| Compatible with Product. | Copper Wires |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | TWN |
| Country of Origin (subj. | Taiwan, Province of Chi. |
| Current Stock | 42 |
| For Wire Size | 18 AWG, 20 AWG, 22 AWG |
| Insulation Color | Red |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| International Shipping | No |
| Item | Pin Terminal |
| Manufacturer | 3M |
| Material | Nylon, Plastic |
| Material: | Nylon |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Maximum Insulation Outs. | 0.17 in |
| Maximum Operating Tempe. | 221 Degrees F, 221 ?F |
| Maximum Voltage | 600 V |
| Maximum Wire Size | 18 AWG |
| Minimum Conductor Leg D. | 22 AWG |
| Minimum Operating Tempe. | -40 Degrees F |
| Minimum Wire Size | 22 AWG |
| Mpn | MNG18-47PX-A |
| Number Of Terminals: | 100 per bottle |

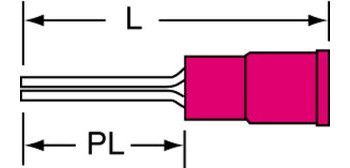

| Overall Length | 0.93 in, 0.9 in |
| Package Quantity | 100 per bottle, 500 per. |
| Pin Diameter | 0.075 in |
| Pin Length | 0.47 in |
| Pin Length (In.) | 0.47 |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Seam Style | Butted |
| SKU | ZO-G1696344 |
| Special Features | Funnel-Designed, Seamle. |
| Standards | UL Listed/CSA Certified |
| Sub Brand: | Scotchlok |
| SubCategory | Electrical |
| Terminal Connection | Crimp |
| Terminal Size: | 22 - 18 AWG |
| Termination Style | Crimp |
| Trade Name | Scotchlok |
| Type | Insulation Grip, Pin, N. |
| Type: | Pin |
| UNSPSC | 39121432 |
| UPC | 051128588451, 005112858. |
| Wire Range | 22 to 18 AWG |
| Wire Size Range | 22 AWG - 18 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Platt.com | 0833107 | 1.5 | 1 | 500 | | 3M | | 1.5 @ 500 |
| Newark | 65X3213 | 1.53 | 100 | 500 | | 3M | | 1.53 @ 500 |
| Dale-Electric | MNG18-47PX-A | 98.87 | 1 | 500 | | 3M | | 98.87 @ 500 |
 | Zoro | G1696344 | 99.79 | 1 | 500 | | 3M | 0.21 | 99.79 @ 500 |
 | sustainablesupply.com | C1195320 | 102.65 | 1 | 500 | | 3M | 0.21 | 102.65 @ 500 |
 | gordonelectricsupply.com | MNG18-47PX-A | 103.59 | 1 | 500 | 455 | 3-M | | 103.59 @ 500 |
 | simsupply.com | ZO-G1696344 | 139.75 | 1 | 500 | | 3M | | 139.75 @ 500 |
 | Raptor Supplies | AD2NDD | 193.2009885 | 1 | 500 | | 3M | | 193.2009885 @ 500 |
 | rshughes.com | 051128-58845 | 500.0 | 100 | 500 | | 3M | | 500.0 @ 500 |
