3M MNG18-6FBX

mpnMNG18-6FBX
brandname: 3-M
manufacturername: 3-M

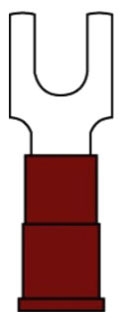

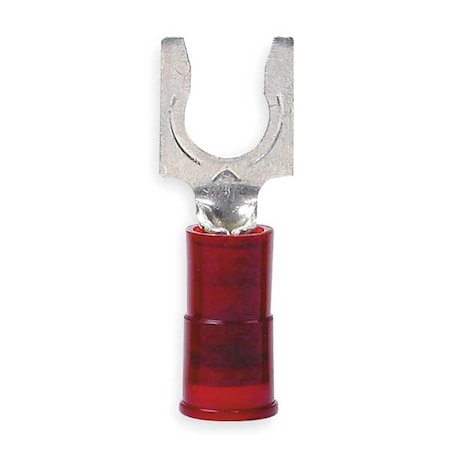

3M Scotchlok Red Locking Butted Nylon Butted Fork & Spade Terminal - 0.84 in Length - 0.3 in Fork Width - #6 Stud - MNG18-6FBX [PRICE is per TERMINAL]

Brand: 3M
PartNumber: MNG18-6FBX
Model: MNG18 6FBX
Color: Red
PackageQuantity: 1
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MNG18-6FBX
Allowable Gauge Range	22 - 18
Availability:	In Stock
Barrel Length	44 in
Barrel Length Type	Butted
Barrel Size	0.07 in ID x 0.25 in L
Barrel Size:	0.07 in ID x 0.25 in L
Barrel Style	Insulation Grip
Barrel Style:	Butted
Barrel Type	Butted Seam
Barrel Type:	Butted Seam
Brand	3M
Brand:	3M?
Category	Electrical Terminals

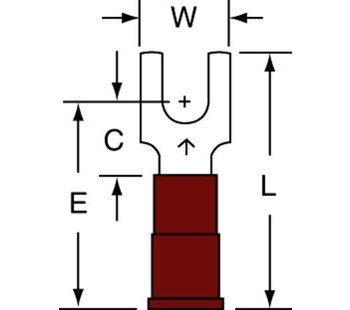

Clearance	0.25 in
Clearance (C):	0.25 Inch
Color	Red
Color:	Red
Conductor Size	22 to 18
Conductor Size:	22 to 18 AWG
Conductor Type	Stranded Copper
Conductor Type:	Stranded Copper
Connection Material	Copper
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper
Country of Origin	USA
Country of Origin (subj.	UNITED STATES
Country:	UNITED STATES
Current Stock	42
Dimensions:	0.3 in W x 0.03 in T
Fastening Mechanism	Locking
Finish	Tin Plated
Finish:	Electro-Tin Plated
For Wire Size	18 AWG, 20 AWG, 22 AWG
Fork Width	0.3 in
Inside Diameter	0.07 in
Insulation Color	Red
Insulation Colour	Red
Insulation Length	0.69 in
Insulation Material	Nylon
Insulation Type	Nylon
International Shipping	No
Item	Fork Terminal
Length	0.84
Length:	0.84 in
Manufacturer	3M
Manufacturer:	3M
Material	Electrolytic Copper/Nyl.
Material:	Nylon
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Insulation Outs.	0.145 in
Maximum Operating Tempe.	221 Degrees F, 221 ?F
Maximum Voltage	600V, 600 V
Maximum Wire Size	18 AWG
Minimum Conductor Leg D.	22 AWG
Minimum Wire Size	22 AWG
Mpn	MNG18-6FBX
MPN:	MNG18-6FBX
Number Of Terminals:	100 per bottle
Overall Length	0.84 in
Overall Width	0.3 in
Package Quantity	100 per bottle, 500 per.
RoHS Compliant	Yes
RSPID:	26601781
RSPN:	26601781
Seam	Brazed
Seam Style	Butted
SKU	ZO-G1613412
Specifications	0.145 in Dia Max Insula.
Specifications:	0.145 in Dia Maximum In.
Standard:	UL and CSA
Standards	UL, CSA, CSA Certified,.
Stud Size	#6
Stud Size:	#6, 6
Sub Brand:	Scotchlok
SubCategory	Electrical
Temperature Rating (Deg.	-40 to 221
Temperature Rating:	-40 to 221 deg F
Terminal Connection	Crimp
Terminal Shape	Block Fork
Terminal Size:	22 - 18 AWG
Terminal Type	Block
Termination Style	Crimp
Tongue Size	0.3 in W x 0.03 in THK
Tongue Size:	0.3 in W x 0.03 in THK
Tongue Thickness	0.03 in
Tongue Type	Fork
Tongue Type:	Fork
Tongue Width	0.3 in, 0.26 - 0.50 inc.
Tongue Width - Wire Con.	0.3 in
Trade Name	Scotchlok
Type	Block Insulated
Type:	Fork, Insulated Block
UNSPSC	39121432
UNSPSC:	39121432
UPC	051128586525, 005112858.
UPC:	00051128586525
Voltage Rating	600 to 1000, 600/1000
Voltage Rating:	600/1000 VAC
Width (W):	0.30 Inch
Wire Range	22 to 18 AWG
Wire Size Range	22 AWG - 18 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Resourceful Supply	MNG18-6FBX	0.7	1	100		3M		0.7 @ 100
Kelly Hayes	MNG18-6FBX	1.03	1	200		3M		1.03 @ 100
turtle.com	MMM MNG18-6FBX	1.12	1	100		3M		1.12 @ 100
Platt.com	0063476	1.44	1	100		3M		1.44 @ 100
Newark	55T9359	1.64	100	100		3M		1.64 @ 100
sustainablesupply.com	C1204994	61.94	1	100		3M	0.25	61.94 @ 100
Dale-Electric	MNG18-6FBX	79.66	1	100		3M		79.66 @ 100
rshughes.com	051128-58652	91.0	100	100		3M		91.0 @ 100
Zoro	G1613412	92.15	1	100		3M	0.25	92.15 @ 100
gordonelectricsupply.com	MNG18-6FBX	94.09	1	100	455	3-M		94.09 @ 100
standardelectricsupply.com	2349977	99.0	1	100		3M		99.0 @ 100
Graybar	25323667	139.2944	1	100		3M		139.2944 @ 100
simsupply.com	ZO-G1613412	149.26	1	100		3M		149.26 @ 100
electricalparts.com	MNG18-6FBX	160.8544	1	100		3M		160.8544 @ 100
grainger.ca	MMMMNG18-6FBX	426.71586352	1	100		3M	0.29	426.71586352 @ 100
