3M MV18-6FLX

B00A03O9M2

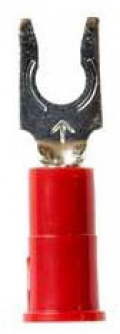

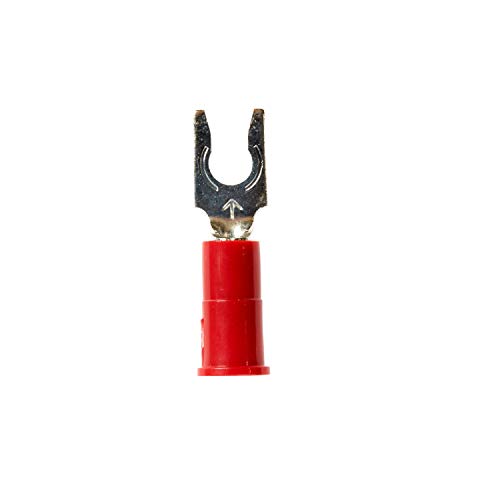

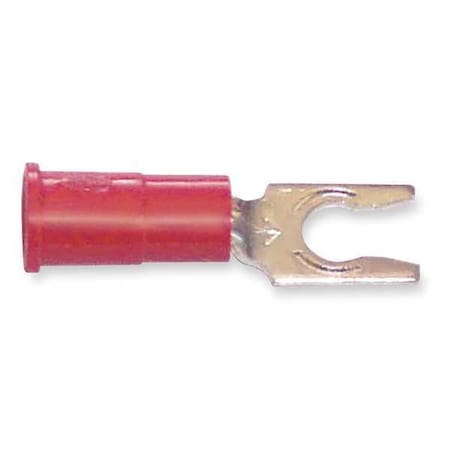

3M(TM) Scotchlok(TM) Locking Fork Vinyl Insulated, Pack of 100, MV18-6FLX

3M(TM) Scotchlok(TM) Locking Fork Vinyl Insulated, Pack of 100, MV18-6FLXzoom

Attributes

Key Value
3M NumberMV18-6FLX
Allowable Gauge Range22 - 18
Alternate Mfr Part Numb.00051128588468
AngleStraight
Availability:In Stock
Barrel Diameter0.07 Inch ID x 0.145 In.
Barrel Length TypeBrazed
Barrel Size0.07 in ID x 0.25 in L
Barrel Size:0.07 in ID x 0.25 in L
Barrel TypeBrazed Seam
Barrel Type:Brazed Seam
Base Product NumberMV18
Brand3M
Brand Name3M
Brand:3M?
CategoryElectrical Terminals, C.
Clearance0.25 in
ColorRed, Metallic
Color CodeNo
Color:Red
Conductor Size22-18 AWG, 22 to 18
Conductor Size:22 to 18 AWG
Conductor TypeStranded Copper
Conductor Type:Stranded Copper
Connection MaterialCopper
Connection TypeCrimp
Connector TypeFlat Tongue Portion
Contact FinishTin
Contact MaterialETP Copper, Copper, ETP
Contact PlatingTin
Country of OriginUS - United States, USA
Country Of OriginUnited States of America
Country of Origin (subj.United States
Country:United States
Current Stock57
Dimensions0.88 Inch Length x 0.25.
Dimensions:0.25 in W x 0.03 in T
ECCNEAR99
Energy Star FlagNo
Fastening MechanismLocking
FeaturesBrazed Seam
FinishTin Plated, Tin
Finish:Electro-Tin Plated
Fork Width0.25 in
GTIN00051128588468
Inside Diameter0.07 in
InsulationInsulated
Insulation ColorRed
Insulation Diameter0.145" (3.68mm), 0.145 "
Insulation Length0.7 in
Insulation MaterialVinyl
Insulation TypeVinyl
International ShippingNo
ItemFork Terminal
Item NameFork Terminal
Length0.88
Length - Overall0.880" (22.35mm)
Length - Ring Center to.0.250" (6.35mm)
Length - Termination0.450" (11.43mm)
Length:0.88 in
Made In AmericaYes
Manufacturer3M
Manufacturer Name3M
Manufacturer Part NumberMV18-6FLX
Manufacturer:3M
MaterialCopper, Brazed, Vinyl
Material - InsulationVinyl
Material Thickness0.030 in.
Max. Temp.221 Degrees F
Max. Voltage600 V
Maximum Insulation Outs.0.145 in
Maximum Wire Size18 AWG
Mfr3M
Minimum Conductor Leg D.22 AWG
Minimum Wire Size22 AWG
Mounting TypeFree Hanging (In-Line)
MpnMV18-6FLX
MPN:MV18-6FLX
Overall Length0.88 ", 0.88 in
Overall Width0.25 ", 0.25 in
PackageBulk
Package Quantity100 per bottle, 500 per.
Part StatusActive
RoHS FlagYes
RSPID:26592600
RSPN:26592600
SeamBrazed
SeriesScotchlok?, Scotchlok S.
ShapeFork
SKUZO-G1088324
Special FeaturesBrazed Seam, Barrel, Lo.
Specifications0.145 in Dia Max Insula.
Specifications:0.145 in Dia Maximum In.
Standard Pack/Case Quan.100/Bottle
StandardsUL Listed, CSA Certifie.
Stud SizeM3.5 (#6), #6
Stud Size:#6
Stud/Tab Size6 Stud
Sub BrandScotchlok?
SubCategoryElectrical
Tang Size0.25 Inch Width
Tang TypeNo
Temperature Rating-40 to 105 deg C
Temperature Rating (Deg.-40 to 221
Temperature Rating:-40 to 221 deg F
Terminal ConnectionCrimp
Terminal TypeLocking, Spring, Snap
TerminationCrimp
Tongue Inside Opening-
Tongue Size0.25 in W x 0.03 in THK
Tongue Size:0.25 in W x 0.03 in T
Tongue TypeFork
Tongue Type:Fork
Tongue Width - Wire Con.0.25 in
Trade NameScotchlok
TypeLocking, Insulated Lock.
Type:Insulated Locking
UNSPSC39121432
UNSPSC:39121432
UPC051128588468, 005112858.
UPC:00051128588468
Voltage Rating600/1000, 600 V, 600 Vo.
Voltage Rating:600/1000 VAC
Width - Outer Edges0.250" (6.35mm)
Wire Gauge18-22 AWG
Wire Range22 to 18 AWG
Wire Size22-18 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Monarch Electric1262900.47612103M0.476 @ 1
steinerelectric.com8297500.6511533M0.65 @ 1
thumbzoomturtle.comMMM MV18-6FLX0.7711293M0.77 @ 1
thumbzoomPlatt.com00636531.01111003M1.01 @ 1
Digi-Key38658241.3425003003M1.34 @ 1
thumbzoomZoroG108832444.5513503M1.144.55 @ 1
thumbzoomResourceful SupplyMV18-6FLX49.01002903M49.0 @ 100
Dale-ElectricMV18-6FLX49.81In Stock3M49.8 @ 1
us.rs-online.com7011331950.491In Stock3M50.49 @ 1
thumbzoomRaptor SuppliesAA8TMG52.5377971In Stock3M52.537797 @ 1
thumbzoomrshughes.com051128-5884663.01001293M63.0 @ 100
thumbzoomgordonelectricsupply.comMV18-6FLX65.0911294553-M65.09 @ 1
thumbzoomstandardelectricsupply.com232708568.681In Stock3M68.68 @ 1
thumbzoomsimsupply.comZO-G108832472.651573M72.65 @ 1
thumbzoomNewark66W613995.441In Stock3M95.44 @ 1
Graybar25323650106.71361In Stock3M106.7136 @ 1
thumbzoomelectricalparts.comMV18-6FLX112.6944143M112.6944 @ 1
