- mpn1SVR500020R1100
- brandname: Abb
- manufacturername: Abb

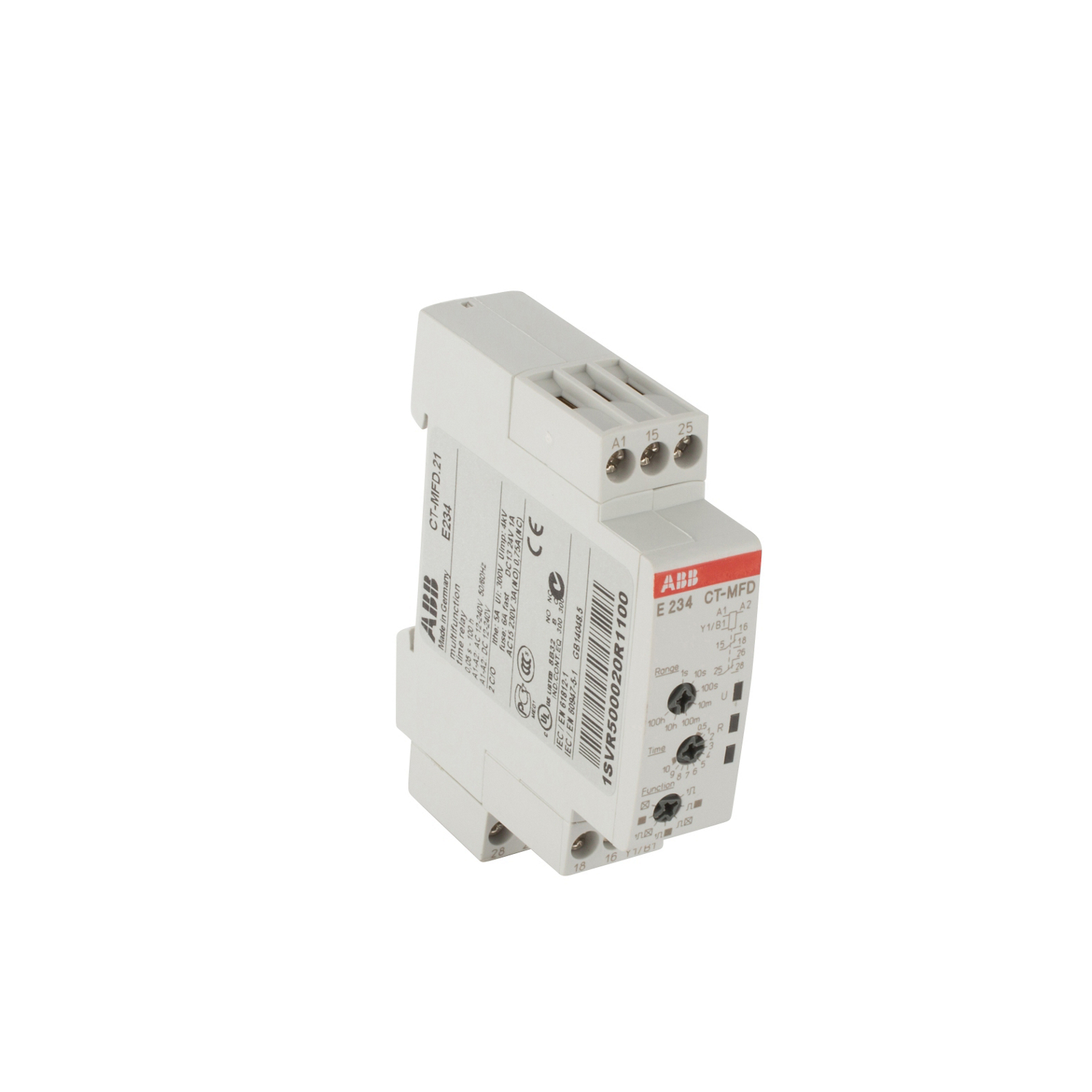

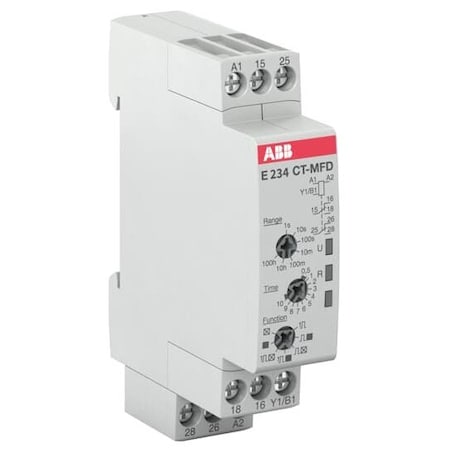

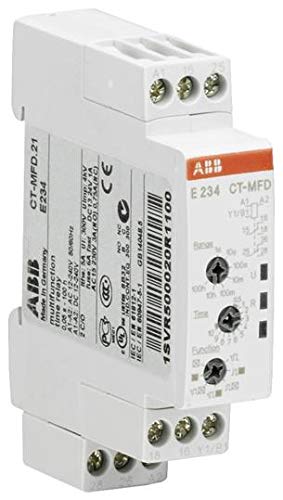

Analog Timer, CT-D Series, Multifunction, 50 ms, 100 h, 7 Ranges, 2 Changeover Relays
- Brand: ABB
- PartNumber: 1SVR500020R1100
- PackageQuantity: 1
Attributes
| Key | Value |
|---|
| AC Contact Rating - Rel. | C300 |
| Alternate Mfr Part Numb. | 1SVR500020R1100 |
| Amps | 5 A |
| Approvals | CSA, UL |
| Coil Voltage | 24-240 VAC, 24-48 VDC |
| Comments | CT-MFD.21 |
| Contact Form | DPDT |
| Contact Rating (A) | 4 A |
| Contacts | DPDT |
| Control Voltage | 12 to 240 |
| Depth | 63 mm |
| Family Series | ABB Relays, CT-D Series |
| Function | Multi-Function |
| Gross Weight | 0.175 lbs |
| Height | 80 mm |
| Hz - Electrical | 50/60 Hz |
| IP Rating | IP50 |
| Item Number | 1SVR500020R1100 |
| Manufacturer | ABB |
| Manufacturer Part Number | 1SVR500020R1100 |
| Max Time | 100 Hrs |
| Mode of Operation | Flasher, Off Delay, On . |
| Mounting | TH35-15 (35 x 15 mm Mou. |
| Mounting Type | DIN Rail Mount, DIN Rail |
| Multi-Function | Yes |
| Net Weight | 0.15 lbs |
| Nominal Coil Voltage | 24 VAC, 24 VDC, 48 VAC,. |
| Package Quantity | 1 |
| Primary Type | Time Delay Relays |
| Product Series | CT-D |
| Series | CT-MFD Series |
| Standards | CAN/CSA C22.2 No.14, IE. |
| Termination | Screw Terminals, Screw |
| Timing Range | 0.05 Sec. to 100 Hrs., 7 |
| UPC Code | 4016779657662 |
| Voltage (AC) | 120 VAC, 208 VAC, 24 VA. |
| Voltage (DC) | 24 VDC, 48 VDC |
| Width | 17.5 mm |
