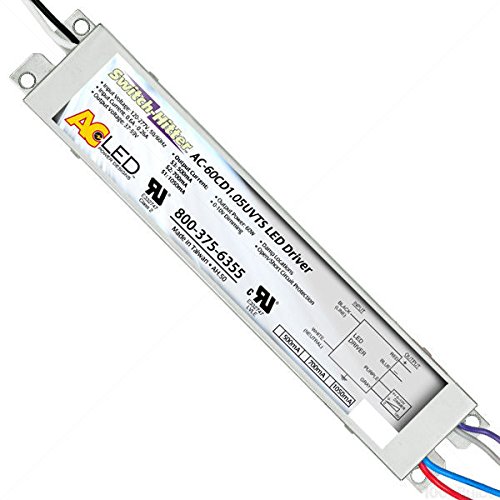

AC-60CD1.05UVTS

59V Dimmable LED Driver - Output Current 500-1050mA - Min/Max LEDWage 29-60W Driver Input 120-277V AC-60CD1.05UVTS

59V Dimmable LED Driver - Output Current 500-1050mA - Min/Max LEDWage 29-60W Driver Input 120-277V AC-60CD1.05UVTSzoom

Attributes

Key Value
BrandAC Electronics
Case Quantity30
DimmableYes
Efficiencyup to 84%
FamilySwitch Hitter
Height1.14 in.
Input Voltage120/277
Length9.5 in.
Life Hours100,000
Lighting TechnologyLED
Maximum Wattage60 Watt
Minimum Wattage29 Watt
MountingBottom Lead/Side Leads
MPN (Part No.)AC-60CD1.05UVTS
Output Voltage37-59 Volt
Power Factor0.95
Ratings and Certificati.IP66/Indoor/Dry/Outdoor.
Start Temp. (Min)-40 Deg. F
TypeConstant Current
Warranty5-Year Limited
Weight1.3 lb.
Width1.7 in.
